GS110-STMZE (1981)
Toyota Crown
Production
Aug 1981
-
Jul 1983
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )1GE#

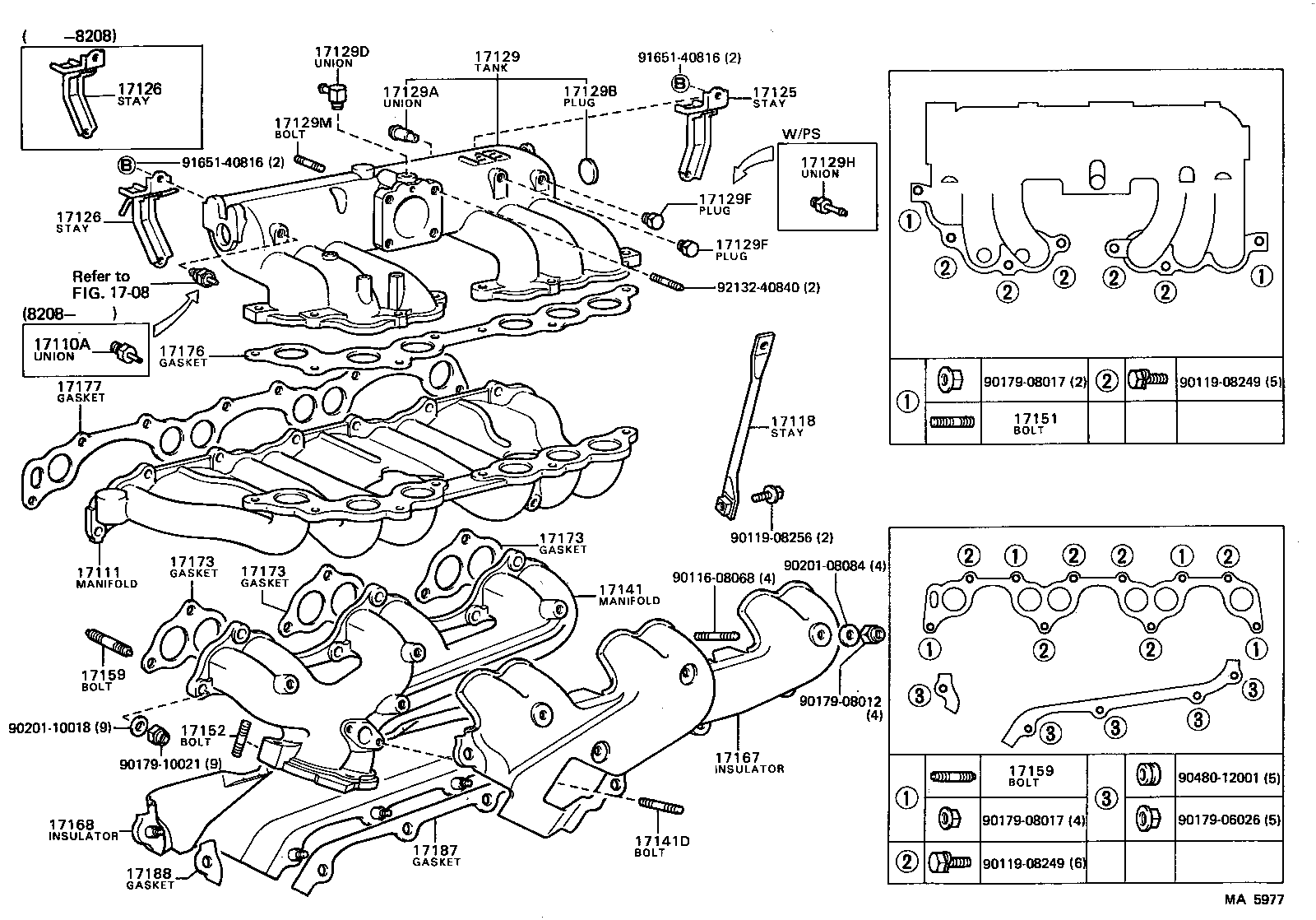

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110A - UNION, VACUUM HOSE | ||||
| 90404-51045 |
1GE#..GS11# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-70011 |
1GE#..GS11# |
1 | ||
| 17111-70010 |
1GEU..GS110 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-70020 |
1GE#..GS11# |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-70010 |
1GE#..GS11# |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-70010 |
1GEU..GS110 |
1 | ||
| 17126-70020 |
1GE#..GS11# |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-70010 |
1GEU..GS110 |
1 | ||
| 17126-70020 |
1GE#..GS11# |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-70011 |
1GE#..GS11# |
1 | ||
| 17109-70010 |
1GEU..GS110 |
1 | ||
| 17129A - UNION, NO.1 | ||||
| 90072-40617 |
1GE#..GS11# |
1 | ||
| 17129B - PLUG | ||||
| 96411-43000 |
1GE#..GS11# OD=30 |
2 | ||
| 17129D - UNION, NO.2 | ||||
| 90407-10040 |
1GE#..GS11# |
1 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
1GE#..GS11# |
2 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
1GE#..GS11# |
2 | ||
| 17129H - UNION, NO.4 | ||||
| 90404-51026 |
1GEU..GS110 W/PS |
1 | ||
| 17129M - BOLT, STUD(FOR COLD START INJECTOR) | ||||
| 92112-40616 |
1GE#..GS11# |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-70010 |
1GE#..GS11# |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08045 |
1GEU..GS110 L=28,S=14&8 |
2 | ||
| 90116-08045 |
1GE#..GS11# L=28,S=14&8 |
2 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08115 |
1GE#..GS11# L=48,S=16&26 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10047 |
1GE#..GS11# EXHAUST MANIFOLD |
9 | ||
| 90116-08115 |
1GE#..GS11# INTAKE MANIFOLD |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10047 |
1GE#..GS11# EXHAUST MANIFOLD |
9 | ||
| 90116-08115 |
1GE#..GS11# INTAKE MANIFOLD |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-70010 |
1GE#..GS11# |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-70010 |
1GE#..GS11# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70010 |
1GE#..GS11# |
3 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70010 |
1GE#..GS11# |
3 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70010 |
1GE#..GS11# |
3 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-70010 |
1GE#..GS11# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-70010 |
1GEU..GS110 |
1 | ||
| 17177-70011 |
1GE#..GS11# |
1 | ||
| 17187 - GASKET, HEAT INSULATOR, NO.1 | ||||
| 17187-70010 |
1GE#..GS11# |
1 | ||
| 17188 - GASKET, HEAT INSULATOR, NO.2 | ||||
| 17188-70010 |
1GE#..GS11# |
1 | ||
| Common parts | ||||
| 90116-08068 | ||||
| 90119-08249 | ||||
| 90119-08256 | ||||
| 90179-06026 | ||||
| 90179-08012 | ||||
| 90179-08017 | ||||
| 90179-10021 | ||||
| 90201-08084 | ||||
| 90201-10018 | ||||
| 90480-12001 | ||||
| 91651-40816 | ||||
| 92132-40840 | ||||
| Linked diagrams | ||||
| 1708 | ||||
