GS110-STHGE (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )GS110..ATM

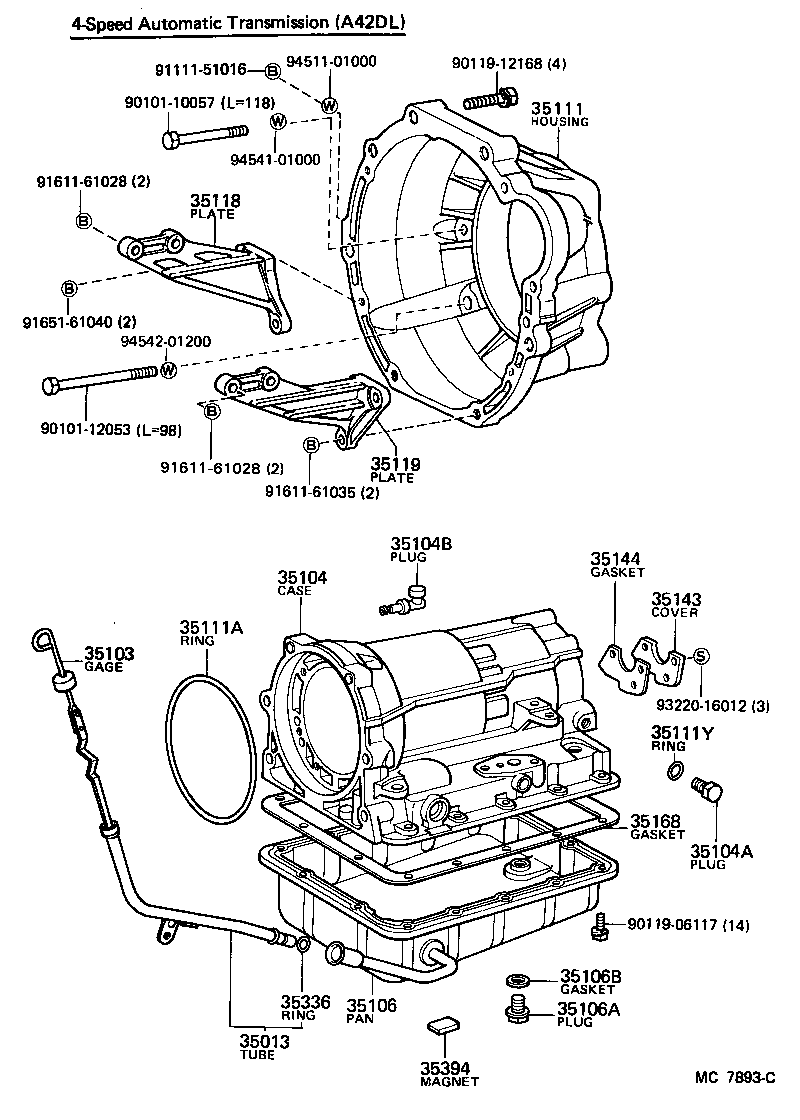

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111A 35111Y 35118 35119 35143 35144 35168 35336 35394 9010110057 9010112053 9011906117 9011912168 9111151016 9161161028 9161161028 9161161035 9165161040 9322016012 9451101000 9454101000 9454201200
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-22120

GS110..ATM

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26011

GS110,LS11#,MS112..ATM..(DSL,EFI,TDE)

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

GS110,LS11#,MS110,112..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30050

GS110,MS112..ATM

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10003

GS110,LS11#,MS110,112..ATM

 1
90341-10006

GS110,LS11#,MS11#..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

GS110,LS11#,MS110,112..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-24010

GS110..ATM

 1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99006

GS110,LS11#,MS110,112..4FC,4HC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GS110,LS11#,MS110,112..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-22050

GS110..ATM

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-22041

GS110..ATM

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

GS110,LS11#,MS110,112..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

GS110,LS11#,MS110,112..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

GS110,LS11#,MS110,112..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

GS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)

 1
Common parts
90101-10057
90101-12053
90119-06117
90119-12168
91111-51016
91611-61028
91611-61035
91651-61040
93220-16012
94511-01000
94541-01000
94542-01200
