GS110-STHGE (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8304)L

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1301 15301 15605 15708 9011608071 9011908156 9017908040 9338118016
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79017

1GE#..GS11#

 1
11401-79016

1GEU..GS110

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

1GE#..GS11#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1GE#..GS11#

*10-1.25PX67-18

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GE#..GS11#

OD=35

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1GE#..GS11#

OD=40

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1GE#..GS11#

長さ=14,外径=6

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-22011

1GE#..GS11#

 1
12101 - PAN SUB-ASSY, OIL
12101-79025

1GE#..GS11#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1GE#..GS11#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1GE#..GS11#

ID=18

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-70020

1GE#..GS11#

 1
Common parts
90116-08071
90119-08156
90179-08040
93381-18016
Linked diagrams
1301

(8108-8204)1GEU

Click highlighted areas on diagram

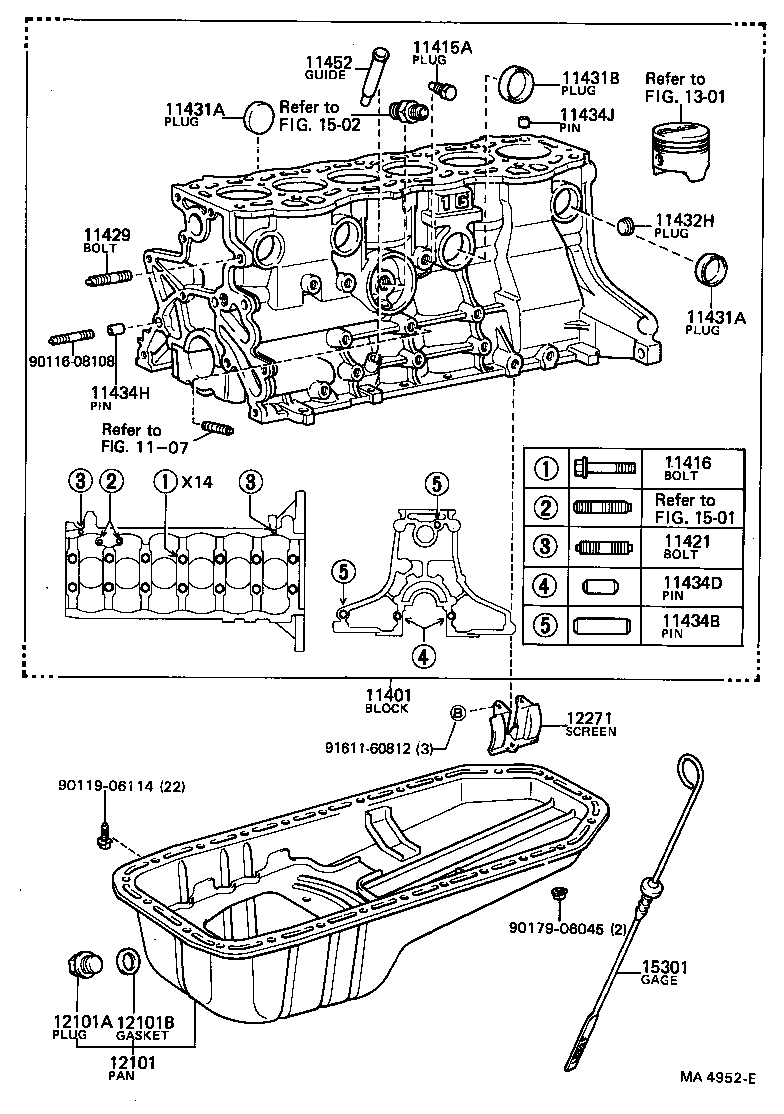

diagram 1107 11401 11415A 11416 11421 11429 11431A 11431A 11431B 11432H 11434B 11434D 11434H 11434J 11452 12101 12101A 12101B 12271 1301 1501 1502 15301 9011608108 9011906114 9017906045 9161160812
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79017

1GE#..GS11#

 1
11401-79016

1GEU..GS110

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

1GE#..GS11#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1GE#..GS11#

*10-1.25PX67-18

 14
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

1GE#..GS11#

L=24.5,S=8.5&8.5

 2
11429 - BOLT, STUD(FOR ALTERNATOR BRACKET)
90116-10051

1GE#..GS11#

L=70,S=12&22

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GE#..GS11#

OD=35

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GE#..GS11#

OD=35

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1GE#..GS11#

OD=40

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1GE#..GS11#

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1GE#..GS11#

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1GE#..GS11#

長さ=14,外径=6

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11021

1GE#..GS11#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1GE#..GS11#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-22011

1GE#..GS11#

 1
12101 - PAN SUB-ASSY, OIL
12101-79025

1GE#..GS11#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1GE#..GS11#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1GE#..GS11#

ID=18

 1
12271 - SCREEN, OIL SEPARATOR
12271-70010

1GE#..GS11#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-70020

1GE#..GS11#

 1
Common parts
90116-08108
90119-06114
90179-06045
91611-60812
Linked diagrams
1107
1301
1501
1502

(8204- )1GE#

Click highlighted areas on diagram

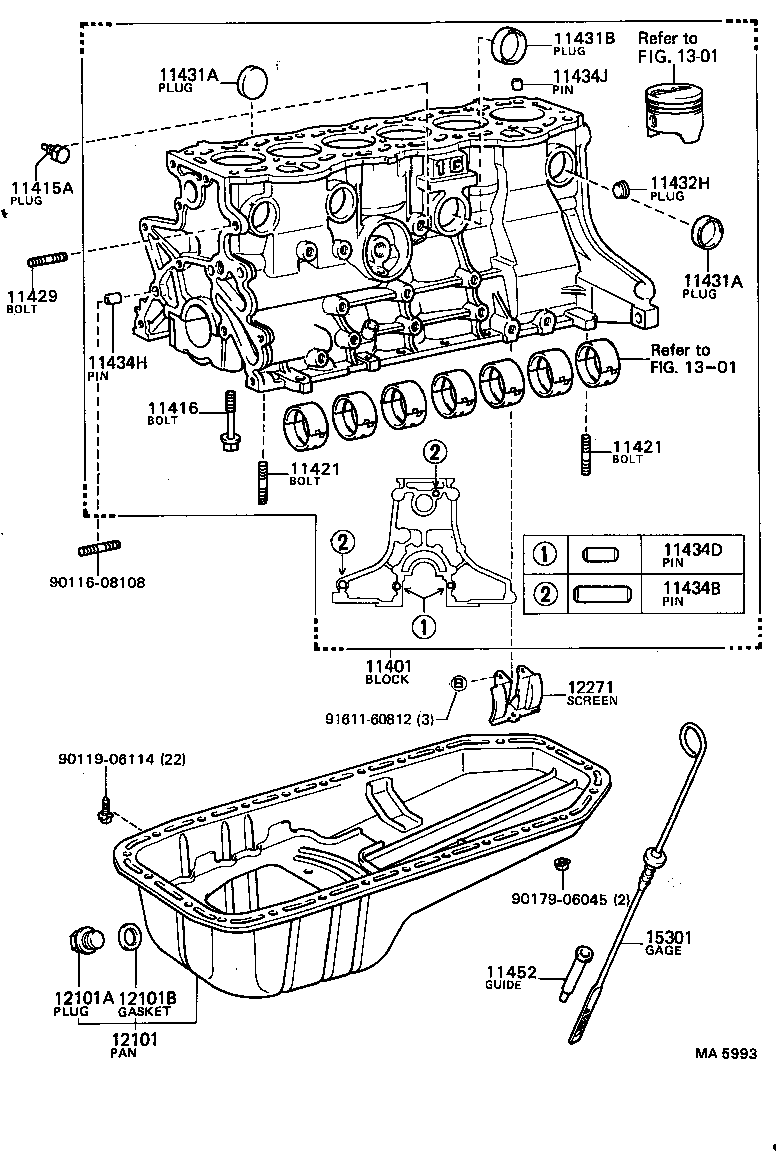

diagram 11401 11415A 11416 11421 11421 11429 11431A 11431A 11431B 11432H 11434B 11434D 11434H 11434J 11452 12101 12101A 12101B 12271 1301 1301 15301 9011608108 9011906114 9017906045 9161160812
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79017

1GE#..GS11#

 1
11401-79016

1GEU..GS110

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

1GE#..GS11#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1GE#..GS11#

*10-1.25PX67-18

 14
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

1GE#..GS11#

L=24.5,S=8.5&8.5

 2
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

1GE#..GS11#

L=24.5,S=8.5&8.5

 2
11429 - BOLT, STUD(FOR ALTERNATOR BRACKET)
90116-10051

1GE#..GS11#

L=70,S=12&22

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GE#..GS11#

OD=35

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GE#..GS11#

OD=35

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1GE#..GS11#

OD=40

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1GE#..GS11#

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1GE#..GS11#

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1GE#..GS11#

長さ=14,外径=6

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11021

1GE#..GS11#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1GE#..GS11#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-22011

1GE#..GS11#

 1
12101 - PAN SUB-ASSY, OIL
12101-79025

1GE#..GS11#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1GE#..GS11#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1GE#..GS11#

ID=18

 1
12271 - SCREEN, OIL SEPARATOR
12271-70010

1GE#..GS11#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-70020

1GE#..GS11#

 1
Common parts
90116-08108
90119-06114
90179-06045
91611-60812
Linked diagrams
1301

(8304- )L

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1301 1301 15301 15605 15708 9011608071 9011908156 9011908247 9011908247 9017908040
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79017

1GE#..GS11#

 1
11401-79016

1GEU..GS110

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

1GE#..GS11#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1GE#..GS11#

*10-1.25PX67-18

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GE#..GS11#

OD=35

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1GE#..GS11#

OD=40

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1GE#..GS11#

長さ=14,外径=6

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-22011

1GE#..GS11#

 1
12101 - PAN SUB-ASSY, OIL
12101-79025

1GE#..GS11#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1GE#..GS11#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1GE#..GS11#

ID=18

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-70020

1GE#..GS11#

 1
Common parts
90116-08071
90119-08156
90119-08247
90179-08040
Linked diagrams
1301
