GS110-SSMGE (1981)
Toyota Crown

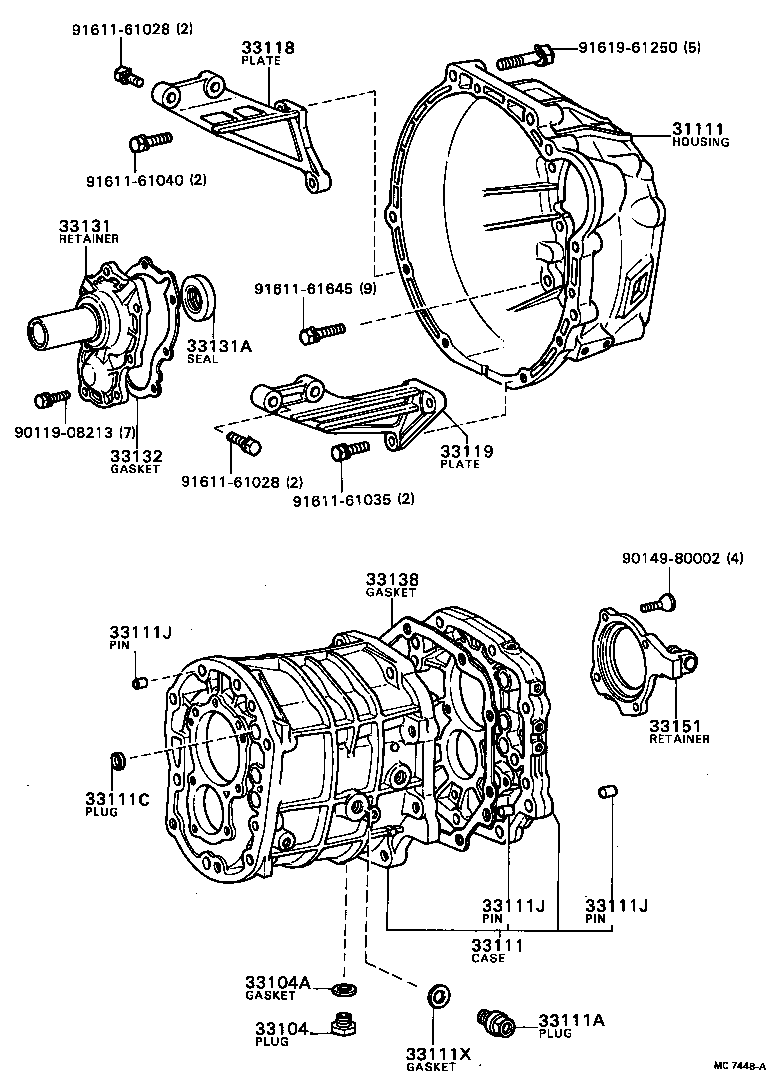

ILLUST NO. 1 OF 2(8108- )GS11#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22100 |
GS110..MTM |
1 | ||
| 31111-22130 |
GS11#..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
GS11#,LS11#,MS11#,RS110..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
GS11#,LS11#,MS110,117,RS110..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-22021 |
GS11#,LS11#,MS110,117..4F,5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
GS11#,LS11#,MS11#,RS110..MTM |
1 | ||
| 90341-18002 |
GS11#,LS11#,MS11#,RS110..4F,5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
GS110,LS11#,MS110,117,RS110..4F,5F 外径=14 |
3 | ||
| 90331-14004 |
GS11#,LS11#,MS110,117,RS110..MTM 外径=14 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GS11#,LS11#,MS110,117,RS110..MTM 長さ=16,外径=12,OD=12,L=16 |
6 | ||
| 90250-12146 |
GS110,LS11#,MS110,117,RS110..4F,5F 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GS11#,LS11#,MS110,117,RS110..MTM 長さ=16,外径=12,OD=12,L=16 |
6 | ||
| 90250-12146 |
GS110,LS11#,MS110,117,RS110..4F,5F 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GS11#,LS11#,MS110,117,RS110..MTM 長さ=16,外径=12,OD=12,L=16 |
6 | ||
| 90250-12146 |
GS110,LS11#,MS110,117,RS110..4F,5F 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
GS11#,LS11#,MS110,117,RS110..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-22050 |
GS11#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22041 |
GS11#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-22020 |
GS11#,LS11#,MS110,117,RS110..4F,5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
GS11#,LS11#,MS110,117,RS110..4F,5F |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-22010 |
GS11#,LS11#,MS110,117,RS110..4F,5F |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33142-22010 |
GS11#,LS11#,MS110,117,RS110..4F,5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33107-22010 |
GS11#,LS11#,MS110,117,RS110..4F,5F |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91611-61645 | ||||
| 91619-61250 | ||||
