GS110-SSMGE (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )1GE#

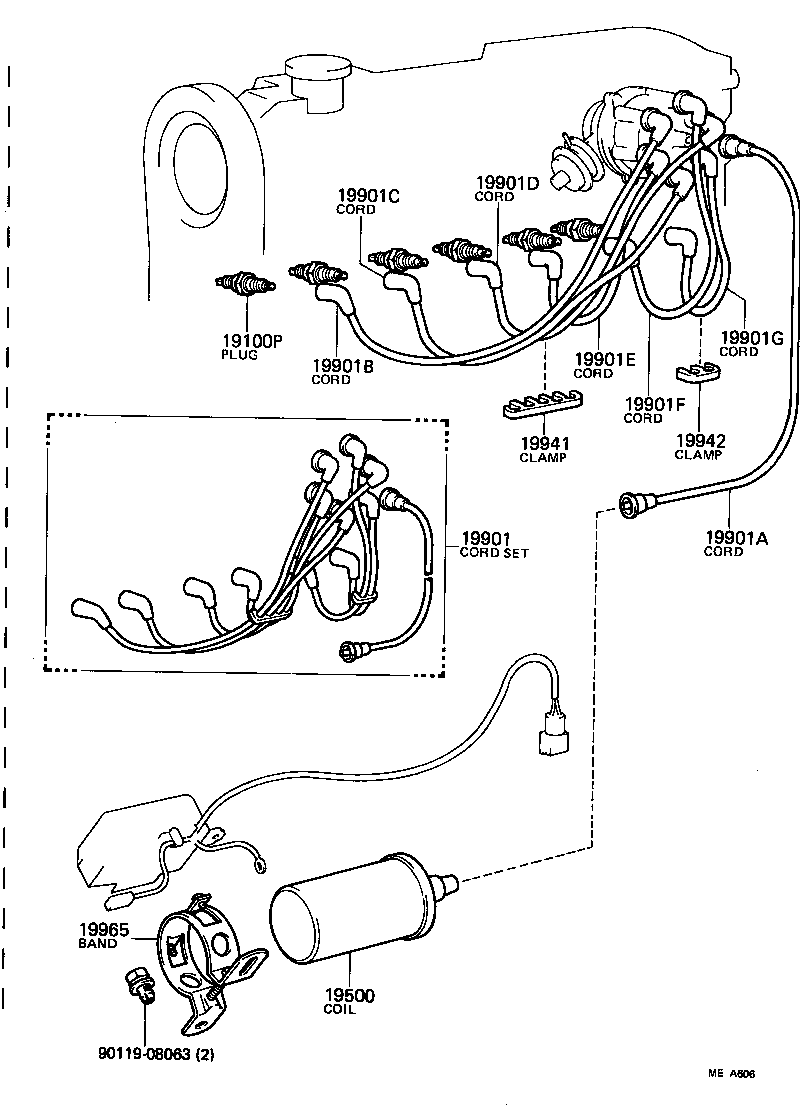

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19965 9011908063
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01119

1GE#..GS11#

J16BR−U,J16BR-U(DENSO)

 6
90919-01120

1GE#..GS11#

BRE529Y,BRE529Y(NGK)

 6
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21285

1GE#..GS11#

 1
19901A - CORD, COIL RESISTIVE
90919-13185

1GE#..GS11#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12330

1GE#..GS11#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12331

1GE#..GS11#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12332

1GE#..GS11#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12333

1GE#..GS11#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12334

1GE#..GS11#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12335

1GE#..GS11#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

1GE#..GS11#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00208

1GE#..GS11#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03066

1GE#..GS11#

 1
90919-03066

1GEU..GS110

 1
Common parts
90119-08063
