GS110-SENGE (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 1GEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )GS11#

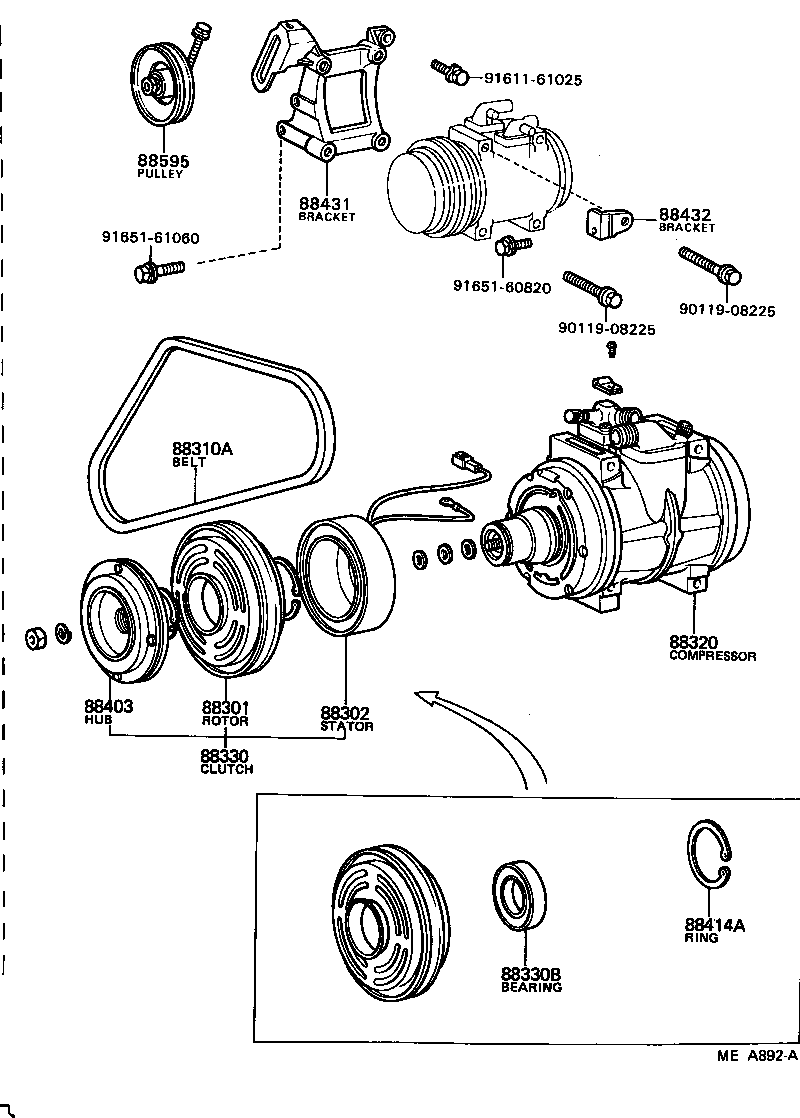

Click highlighted areas on diagram

diagram 88301 88302 88310A 88320 88330 88330B 88403 88414A 88431 88432 88595 9011908225 9011908225 9161161025 9165160820 9165161060
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-26010

GS11#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22020

GS11#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00920

GS11#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-22200

GS11#

 1
88330 - CLUTCH ASSY, MAGNET
88410-22030

GS11#

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

GS11#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-22030

GS11#

 1
88414A - RING, SHIELD SNAP
90099-07114

GS11#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22140

GS11#

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88437-22040

GS11#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

GS11#,MS11#

 1
Common parts
90119-08225
91611-61025
91651-60820
91651-61060
