GS110-SEMFE (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

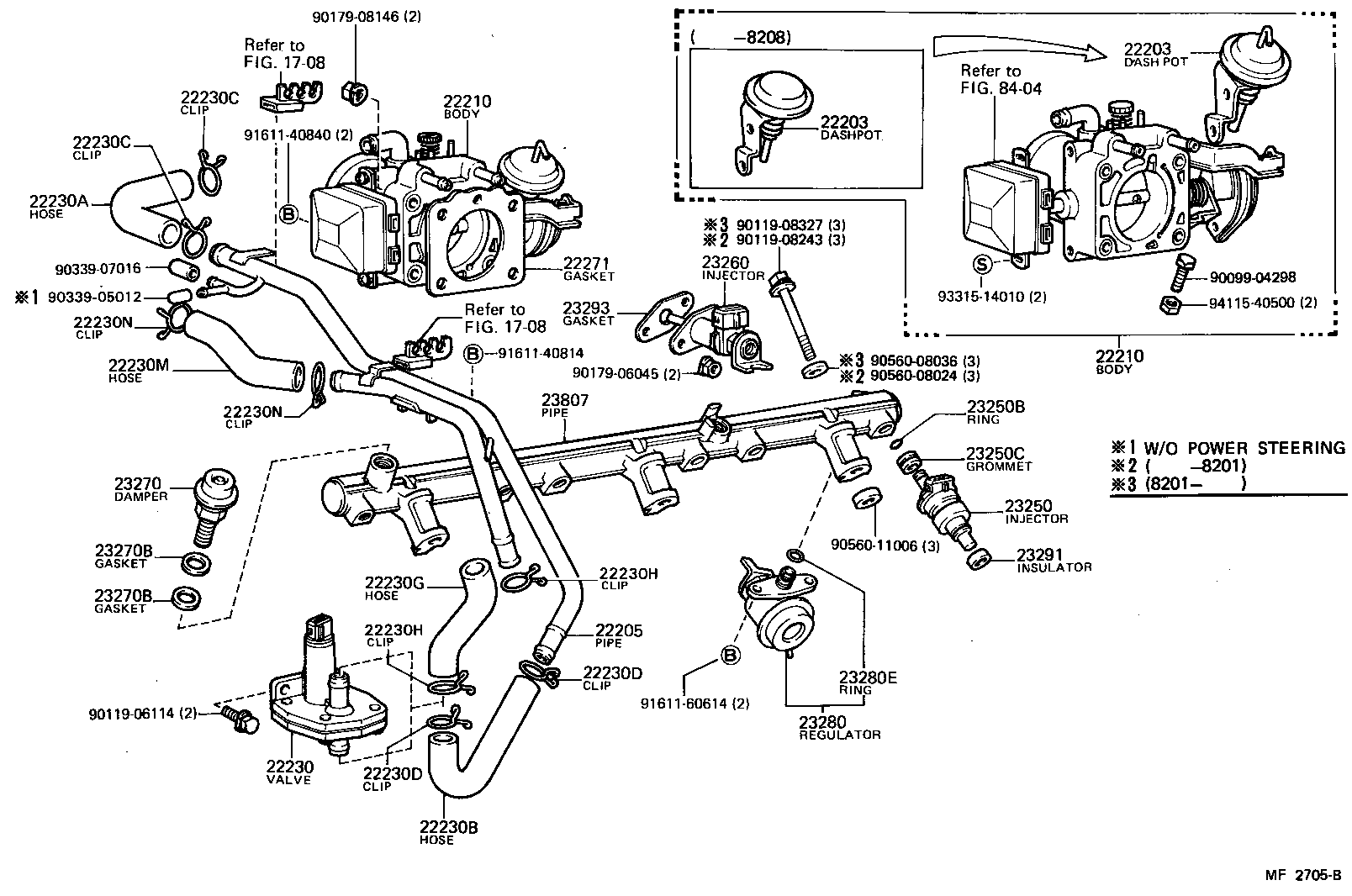

ILLUST NO. 1 OF 2(8108- )1GE#

Click highlighted areas on diagram

diagram 1708 1708 22203 22203 22205 22210 22210 22230 22230A 22230B 22230C 22230C 22230D 22230D 22230G 22230H 22230H 22230M 22230N 22230N 22271 23250 23250B 23250C 23260 23270 23270B 23270B 23280 23280E 23291 23293 23807 8404 9009904298 9011906114 9011908243 9011908327 9017906045 9017908146 9033905012 9033907016 9056008024 9056008036 9056011006 9161140814 9161140840 9161160614 9331514010 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70010

1GEU..GS110

 1
22203-70011

1GE#..GS11#

 1
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70010

1GEU..GS110

 1
22203-70011

1GE#..GS11#

 1
22205 - PIPE SUB-ASSY, AUXILIARY AIR
22205-70020

1GE#..GS11#

 1
22210 - BODY ASSY, THROTTLE
22210-70010

1GEU..GS110

 1
22210-70011

1GE#..GS11#

 1
22210 - BODY ASSY, THROTTLE
22210-70010

1GEU..GS110

 1
22210-70011

1GE#..GS11#

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-70020

1GEU..GS110

 1
22230-70021

1GE#..GS11#

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-70020

1GE#..GS11#

 1
22230B - HOSE, AUXILIARY AIR VALVE, NO.2
22234-70010

1GE#..GS11#

 1
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-20002

1GE#..GS11#

 2
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-20002

1GE#..GS11#

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-20002

1GE#..GS11#

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-20002

1GE#..GS11#

 2
22230G - HOSE, AUXILIARY AIR VALVE, NO.3
22237-70010

1GE#..GS11#

 1
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-20002

1GE#..GS11#

 2
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-20002

1GE#..GS11#

 2
22230M - HOSE, AUXILIARY AIR VALVE, NO.4
22237-70010

1GE#..GS11#

 1
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-20002

1GE#..GS11#

 2
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-20002

1GE#..GS11#

 2
22271 - GASKET, THROTTLE BODY
22271-70010

1GE#..GS11#

 1
23250 - INJECTOR ASSY, FUEL
23250-70010

1GE#..GS11#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GE#..GS11#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GE#..GS11#

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-70020

1GE#..GS11#

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-14002

1GE#..GS11#

ID=14.2

 1
90430-17002

1GE#..GS11#

ID=17.3

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-14002

1GE#..GS11#

ID=14.2

 1
90430-17002

1GE#..GS11#

ID=17.3

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70020

1GE#..GS11#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

1GE#..GS11#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GE#..GS11#

 6
23293 - GASKET, COLD START INJECTOR
23293-70010

1GE#..GS11#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-70020

1GE#..GS11#

 1
Common parts
90099-04298
90119-06114
90119-08243
90119-08327
90179-06045
90179-08146
90339-05012
90339-07016
90560-08024
90560-08036
90560-11006
91611-40814
91611-40840
91611-60614
93315-14010
94115-40500
Linked diagrams
1708
8404

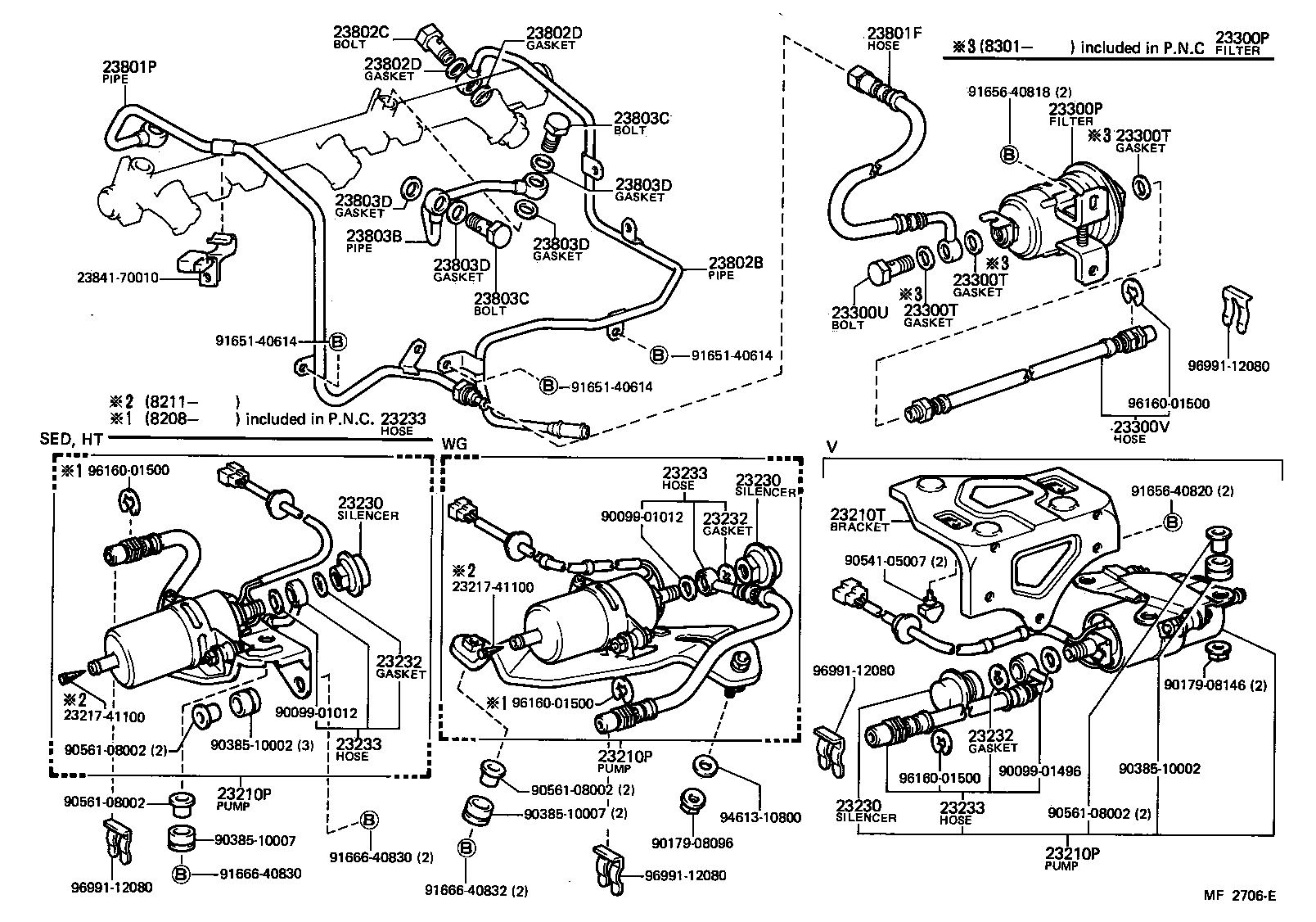

ILLUST NO. 2 OF 2(8108- )1GE#

Click highlighted areas on diagram

diagram 23210P 23210P 23210P 23210T 2321741100 2321741100 23230 23230 23230 23232 23232 23232 23233 23233 23233 23300P 23300T 23300T 23300T 23300U 23300V 23801F 23801P 23802B 23802C 23802D 23802D 23803B 23803C 23803C 23803D 23803D 23803D 23803D 2384170010 9009901012 9009901012 9009901496 9017908096 9017908146 9038510002 9038510002 9038510007 9038510007 9054105007 9056108002 9056108002 9056108002 9056108002 9165140614 9165140614 9165140614 9165640818 9165640820 9166640830 9166640830 9166640832 9461310800 9616001500 9616001500 9616001500 9616001500 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-41100

1GEU..GS110..HT,SED

 1
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-41100

1GEU..GS110..HT,SED

 1
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-41100

1GEU..GS110..HT,SED

 1
23230 - SILENCER ASSY
23230-74020

1GE#..GS11#

 1
23230-26080

1GE#..GS11#

 1
23230 - SILENCER ASSY
23230-74020

1GE#..GS11#

 1
23230-26080

1GE#..GS11#

 1
23230 - SILENCER ASSY
23230-74020

1GE#..GS11#

 1
23230-26080

1GE#..GS11#

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-26080

1GEU..GS110

 1
23232-41081

1GEU..GS110

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-26080

1GEU..GS110

 1
23232-41081

1GEU..GS110

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-26080

1GEU..GS110

 1
23232-41081

1GEU..GS110

 1
23233 - HOSE, FUEL PUMP
90999-99110

1GEU..GS110..HT,SED

 1
90999-99126

1GEU..GS110..HT,SED

 1
23233 - HOSE, FUEL PUMP
90999-99110

1GEU..GS110..HT,SED

 1
90999-99126

1GEU..GS110..HT,SED

 1
23233 - HOSE, FUEL PUMP
90999-99110

1GEU..GS110..HT,SED

 1
90999-99126

1GEU..GS110..HT,SED

 1
23300P - FILTER, FUEL(FOR EFI)
23300-79025

1GE#..GS11#

 1
23300-70020

1GE#..GS11#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GE#..GS11#

OUTLET

 2
90430-14002

1GE#..GS11#

INLET

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GE#..GS11#

OUTLET

 2
90430-14002

1GE#..GS11#

INLET

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GE#..GS11#

OUTLET

 2
90430-14002

1GE#..GS11#

INLET

 1
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GE#..GS11#

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01210

1GE#..GS11#

 1
23801F - HOSE, FUEL, NO.1
90923-01253

1GE#..GS11#

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70020

1GE#..GS11#

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-70030

1GE#..GS11#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08003

1GE#..GS11#

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08005

1GE#..GS11#

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08005

1GE#..GS11#

 2
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-70020

1GE#..GS11#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

1GE#..GS11#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

1GE#..GS11#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE#..GS11#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE#..GS11#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE#..GS11#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GE#..GS11#

 4
Common parts
23217-41100
23841-70010
90099-01012
90099-01496
90179-08096
90179-08146
90385-10002
90385-10007
90541-05007
90561-08002
91651-40614
91656-40818
91656-40820
91666-40830
91666-40832
94613-10800
96160-01500
96991-12080
