GS110-SEBFE (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 1GEU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

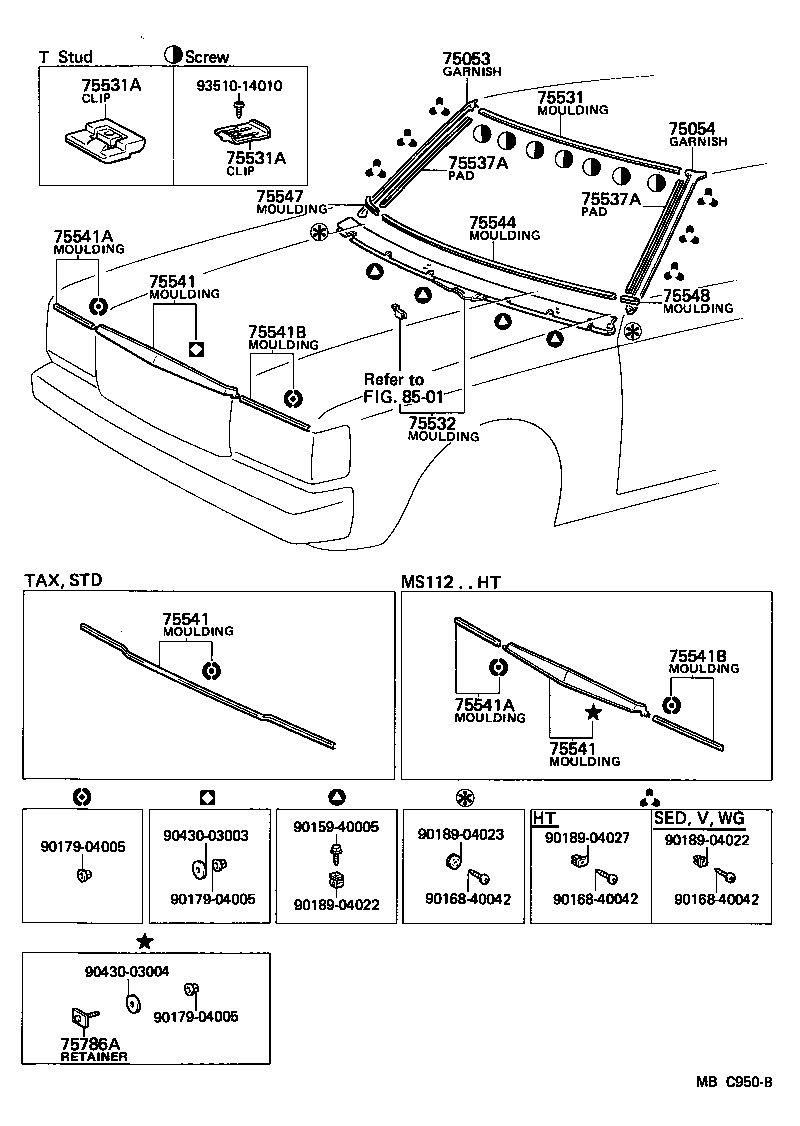

Click highlighted areas on diagram

diagram 75053 75054 75531 75531A 75531A 75532 75537A 75537A 75541 75541 75541 75541A 75541A 75541B 75541B 75544 75547 75548 75786A 8501 9015940005 9016840042 9016840042 9016840042 9017904005 9017904005 9017904005 9018904022 9018904022 9018904023 9018904027 9043003003 9043003004 9351014010
Part # Description Qty Price
75053 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER RH
75533-30160

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
75054 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER LH
75534-30140

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-30140

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30040

GS11#,LS11#,MS11#,RS110

SCREW

 6
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30040

GS11#,LS11#,MS11#,RS110

SCREW

 6
75532 - MOULDING, WINDSHIELD, LOWER
75504-30070

GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75537A - PAD, WINDSHIELD MOULDING
75537-30050

GS11#,LS11#,MS11#,RS110..SED,V,WG

 2
75537A - PAD, WINDSHIELD MOULDING
75537-30050

GS11#,LS11#,MS11#,RS110..SED,V,WG

 2
75541 - MOULDING, HOOD, FRONT
75770-39065

GS11#,LS11#,MS110,117,RS110..(SED,V,WG)..(BTP,DLX,SAL,SDX)

 1
75541 - MOULDING, HOOD, FRONT
75770-39065

GS11#,LS11#,MS110,117,RS110..(SED,V,WG)..(BTP,DLX,SAL,SDX)

 1
75541 - MOULDING, HOOD, FRONT
75770-39065

GS11#,LS11#,MS110,117,RS110..(SED,V,WG)..(BTP,DLX,SAL,SDX)

 1
75541A - MOULDING, HOOD, FRONT RH
75780-39025

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75541A - MOULDING, HOOD, FRONT RH
75780-39025

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75541B - MOULDING, HOOD, FRONT LH
75790-39025

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75541B - MOULDING, HOOD, FRONT LH
75790-39025

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75544 - MOULDING, HOOD, REAR
75772-30050

GS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX)

 1
75547 - MOULDING, FRONT FENDER, RH
75615-30050

GS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX)

 1
75548 - MOULDING, FRONT FENDER, LH
75616-30050

GS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX)

 1
Common parts
90159-40005
90168-40042
90179-04005
90189-04022
90189-04023
90189-04027
90430-03003
90430-03004
93510-14010
Linked diagrams
8501
