GRS204-AETXH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
2GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

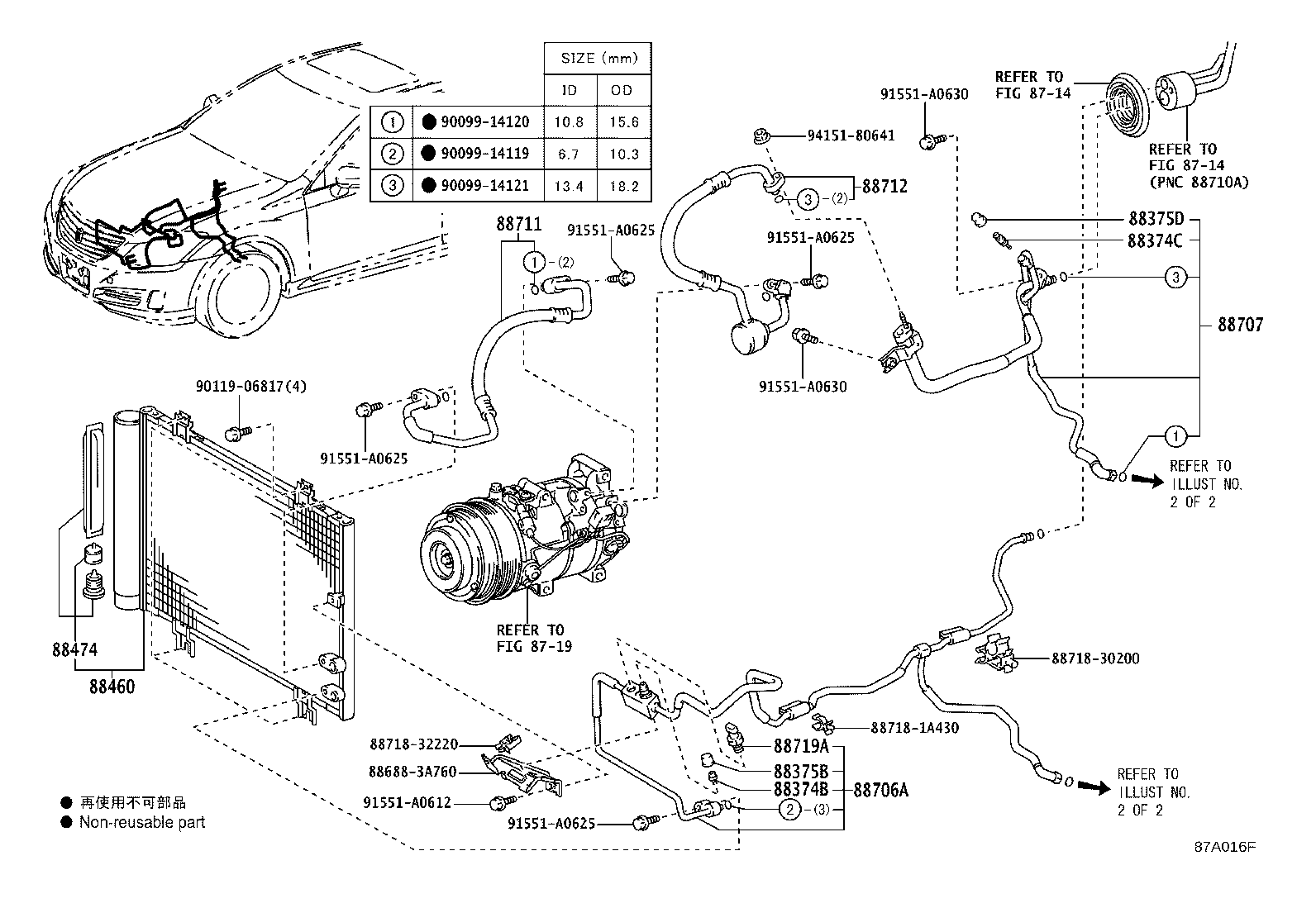

ILLUST NO. 1 OF 2(0802- )ATH,ROY
Click highlighted areas on diagram
ﾌﾛﾝﾄ---ｼﾝｸﾞﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GRS20#,GWS204 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GRS20# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GRS20#,GWS204 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
GRS20# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30A80 |
GRS20# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRS20# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-3A490 |
GRS20#..ATH,ROY |
1 | ||
| 88706-3A500 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-30840 |
GRS20#..ATH,ROY |
1 | ||
| 88707-30850 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3A650 |
GRS20# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30240 |
GRS20# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 88688-3A760 | ||||
| 88718-1A430 | ||||
| 88718-30200 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06817 | ||||
| 91551-A0612 | ||||
| 91551-A0625 | ||||
| 91551-A0630 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

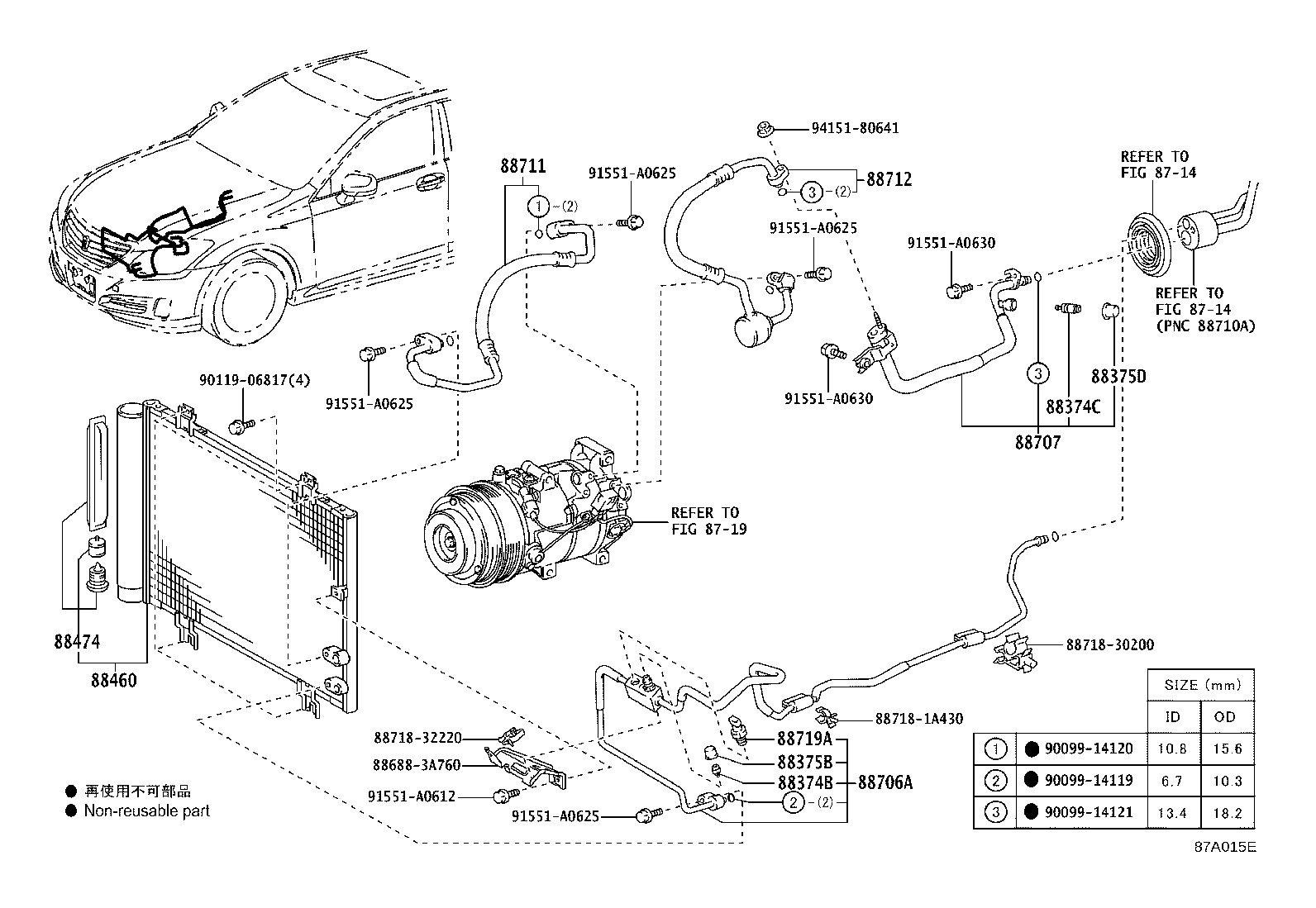

ILLUST NO. 1 OF 2(0802- )GRS202,204 ; (0802- )GRS200..ROY
Click highlighted areas on diagram
ﾌﾛﾝﾄ---ﾃﾞｭｱﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GRS20#,GWS204 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GRS20# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GRS20#,GWS204 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
GRS20# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30A80 |
GRS20# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRS20# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-3A490 |
GRS20#..ATH,ROY |
1 | ||
| 88706-3A500 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-30840 |
GRS20#..ATH,ROY |
1 | ||
| 88707-30850 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3A650 |
GRS20# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30240 |
GRS20# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 88688-3A760 | ||||
| 88718-1A430 | ||||
| 88718-30200 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06817 | ||||
| 91551-A0612 | ||||
| 91551-A0625 | ||||
| 91551-A0630 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

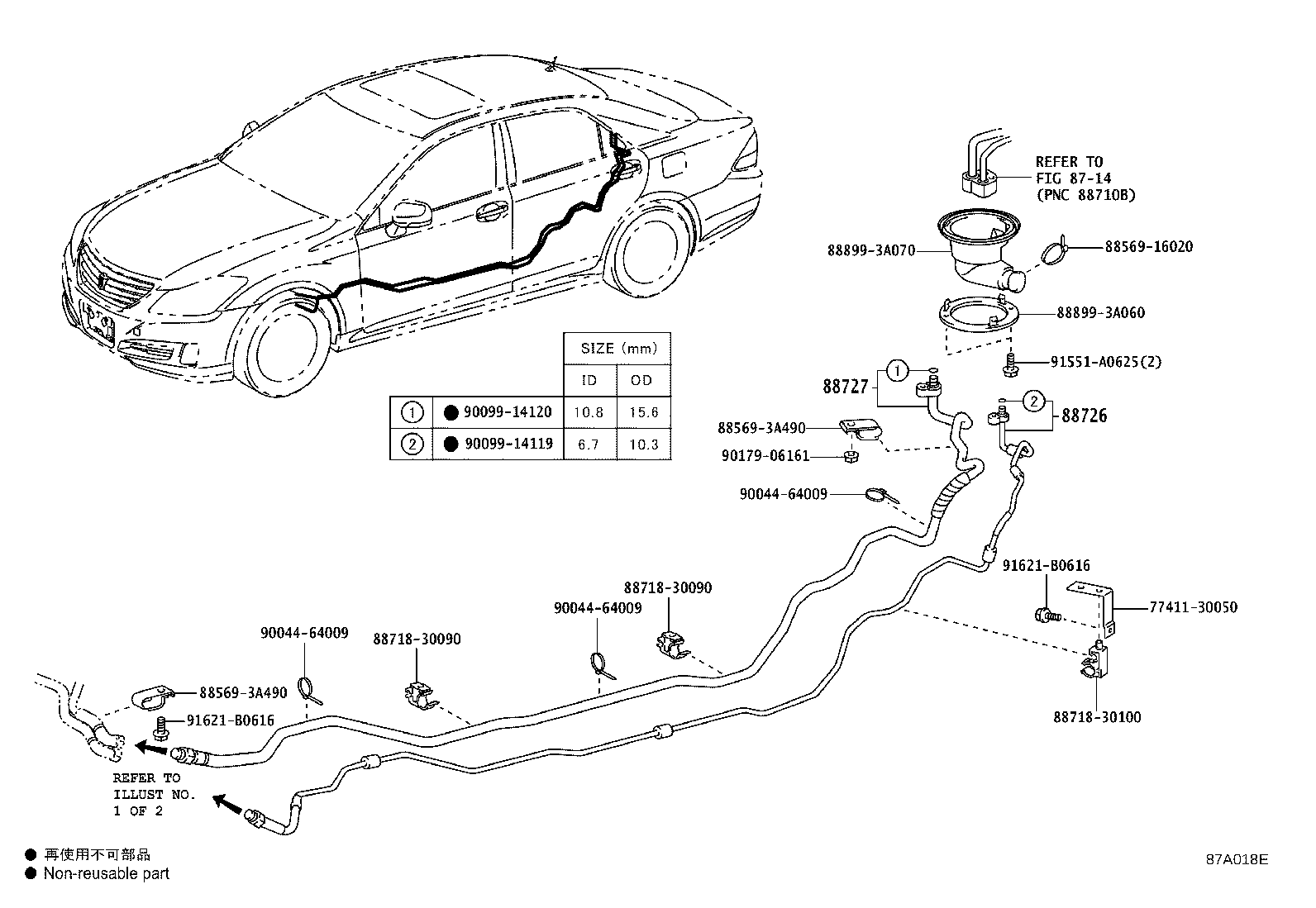

ILLUST NO. 2 OF 2(0802- )GRS204 ; (0802- )ROY,ROYG
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726 - TUBE, LIQUID, NO.2 | ||||
| 88706-3A460 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88707-30810 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| Common parts | ||||
| 77411-30050 | ||||
| 88569-16020 | ||||
| 88569-3A490 | ||||
| 88718-30090 | ||||
| 88718-30100 | ||||
| 88899-3A060 | ||||
| 88899-3A070 | ||||
| 90044-64009 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90179-06161 | ||||
| 91551-A0625 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
