GRS204-AETXH (2008)
Toyota Crown

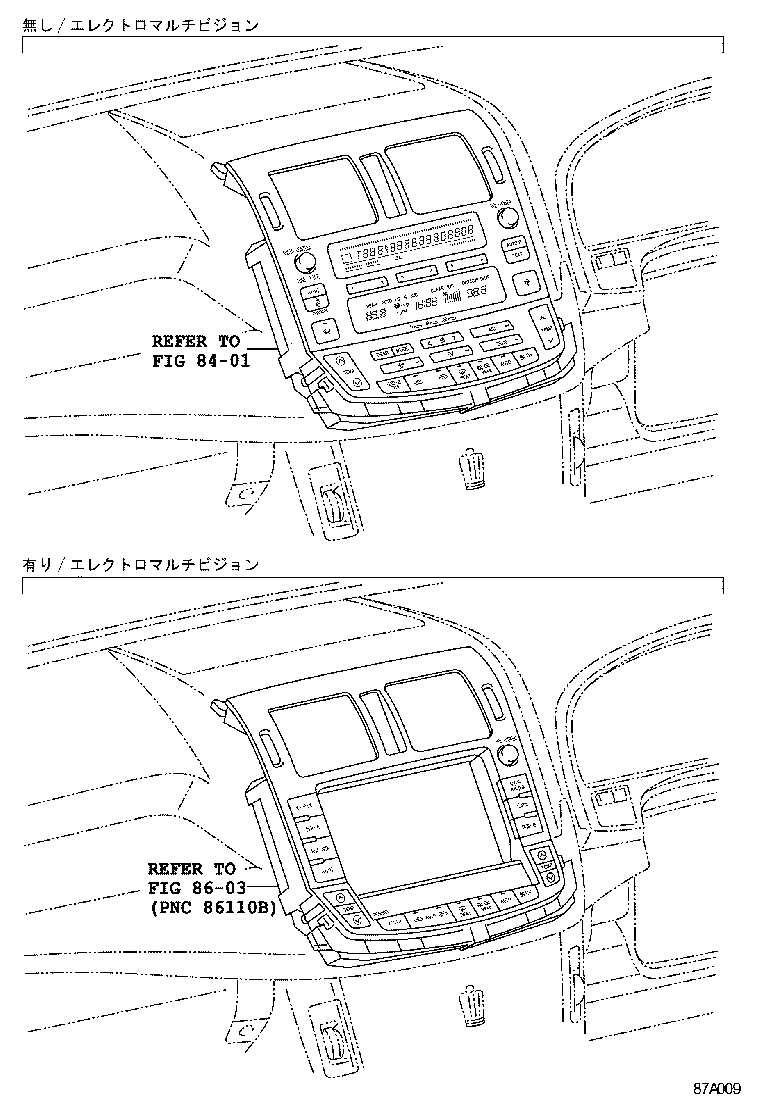

ILLUST NO. 1 OF 5(0802- )
ﾌﾛﾝﾄ ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||

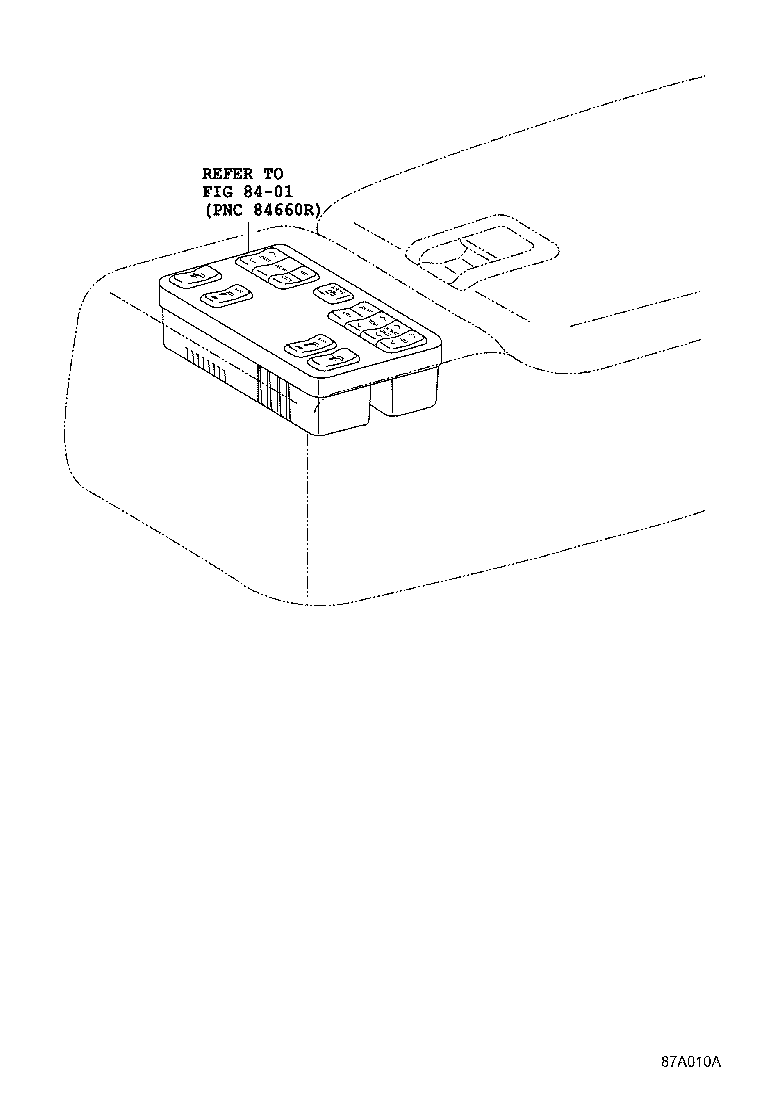

ILLUST NO. 2 OF 5(0802- )GRS204 ; (0802- )HBD,ROY,ROYG
ﾘﾔ ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||

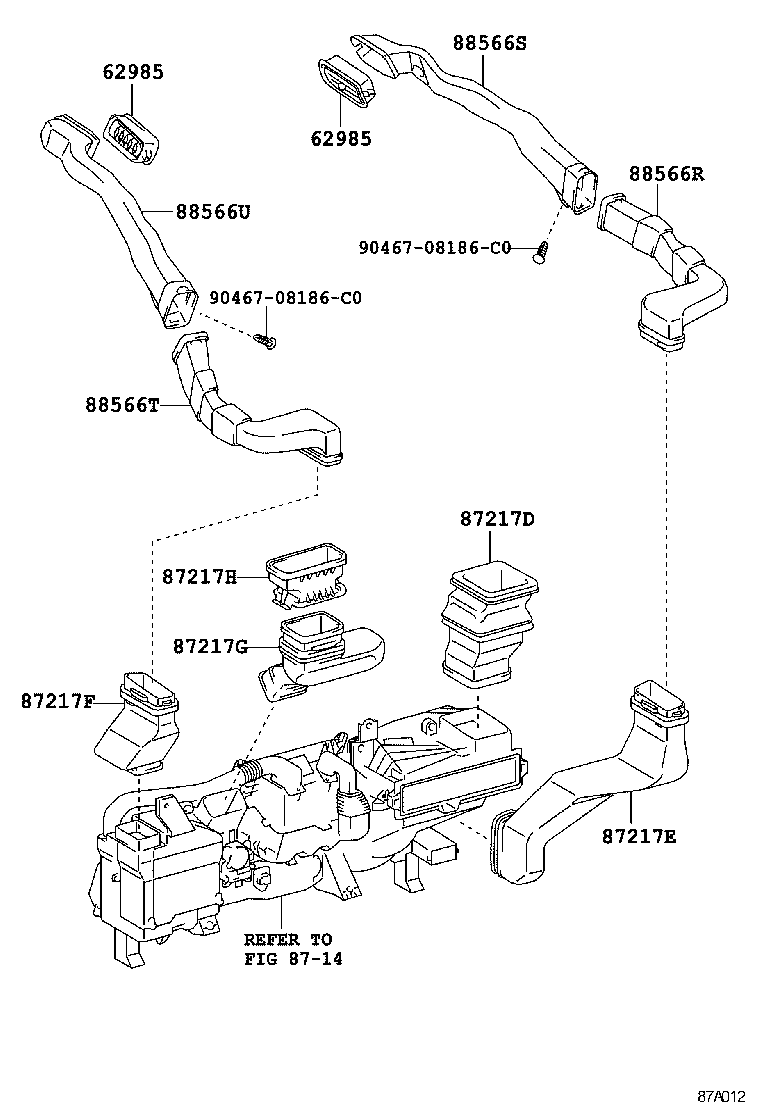

ILLUST NO. 4 OF 5(0802- )GRS204 ; (0802- )ROY,ROYG
ﾘﾔ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30080B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
2 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30080B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
2 | ||
| 62985-30080B0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
2 | ||
| 87217D - DUCT, AIR, REAR SIDE NO.1 | ||||
| 87211-30520 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 87217E - DUCT, AIR, REAR SIDE NO.2 | ||||
| 87211-30530 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 87217F - DUCT, AIR, REAR SIDE NO.3 | ||||
| 87211-30540 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 87217G - DUCT, AIR, REAR SIDE NO.4 | ||||
| 87211-30550 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 87217H - DUCT, AIR, REAR SIDE NO.5 | ||||
| 87211-30560 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 88566R - DUCT, AIR, REAR ROOF NO.1 | ||||
| 62973-30110 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 88566S - DUCT, AIR, REAR ROOF NO.2 | ||||
| 62971-30170 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 88566T - DUCT, AIR, REAR ROOF NO.3 | ||||
| 62974-30110 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 88566U - DUCT, AIR, REAR ROOF NO.4 | ||||
| 62972-30170 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| Common parts | ||||
| 90467-08186C0 | ||||
| Linked diagrams | ||||
| 8714 | ||||

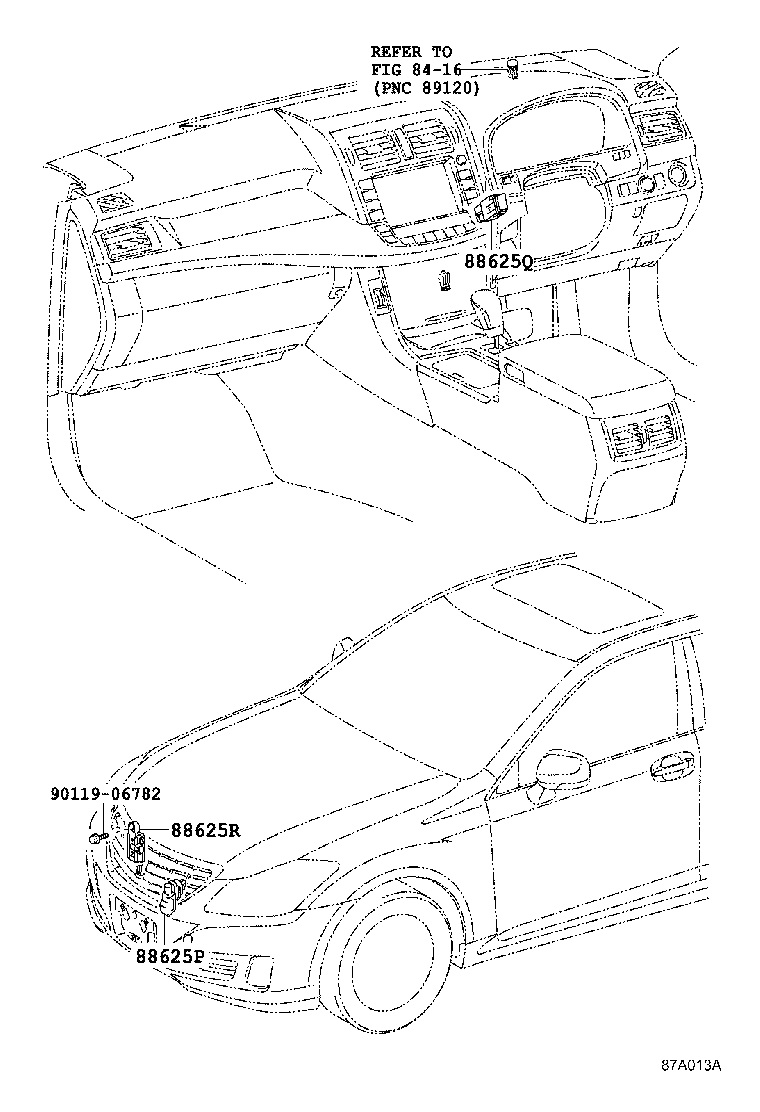

ILLUST NO. 5 OF 5(0802- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
GRS20#,GWS204..CBU |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-48070 |
GRS20#,GWS204..CBU |
1 | ||
| 88625R - THERMISTOR, COOLER (SENSOR, SMOG VENTILATION) | ||||
| 88898-50030 |
GRS202,203,204,GWS204..CBU |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| Linked diagrams | ||||
| 8416 | ||||
ILLUST NO. 3 OF 5(0802- )
ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30280 |
GRS20#,GWS204..CBU |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-30270 |
GRS20#,GWS204..CBU |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-30250 |
GRS20#,GWS204..CBU |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-30190 |
GRS20#,GWS204..CBU |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30220 |
GRS20#,GWS204..CBU |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30190 |
GRS20#,GWS204..CBU |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-30090 |
GRS20#,GWS204..CBU |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-30340 |
GRS20#,GWS204..CBU |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-30590 |
GRS20#,GWS204..CBU |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30430 |
GRS20#,GWS204..CBU |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87205-30220 |
GRS20#,GWS204..CBU |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-30370 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-30370 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87206-30010 |
GRS20#,GWS204..CBU |
1 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693B6 |
GRS20#,GWS204..CBU GRAY,TRIM1# |
4 | ||
| 90950-01693E5 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693B6 |
GRS20#,GWS204..CBU GRAY,TRIM1# |
4 | ||
| 90950-01693E5 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
4 | ||
| 87217C - DUCT, AIR, REAR NO.5 | ||||
| 87217-30240B2 |
GRS20#,GWS204..CBU GRAY,TRIM1# |
2 | ||
| 87217-30240E1 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
2 | ||
| 87217C - DUCT, AIR, REAR NO.5 | ||||
| 87217-30240B2 |
GRS20#,GWS204..CBU GRAY,TRIM1# |
2 | ||
| 87217-30240E1 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
2 | ||
| 87217C - DUCT, AIR, REAR NO.5 | ||||
| 87217-30240B2 |
GRS20#,GWS204..CBU GRAY,TRIM1# |
2 | ||
| 87217-30240E1 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
2 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-30050 |
GRS20#,GWS204..CBU |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-50346 | ||||
| 90164-60002 | ||||
| 90179-06206 | ||||
| 90183-05094 | ||||
| 90467-05145 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8724 | ||||
