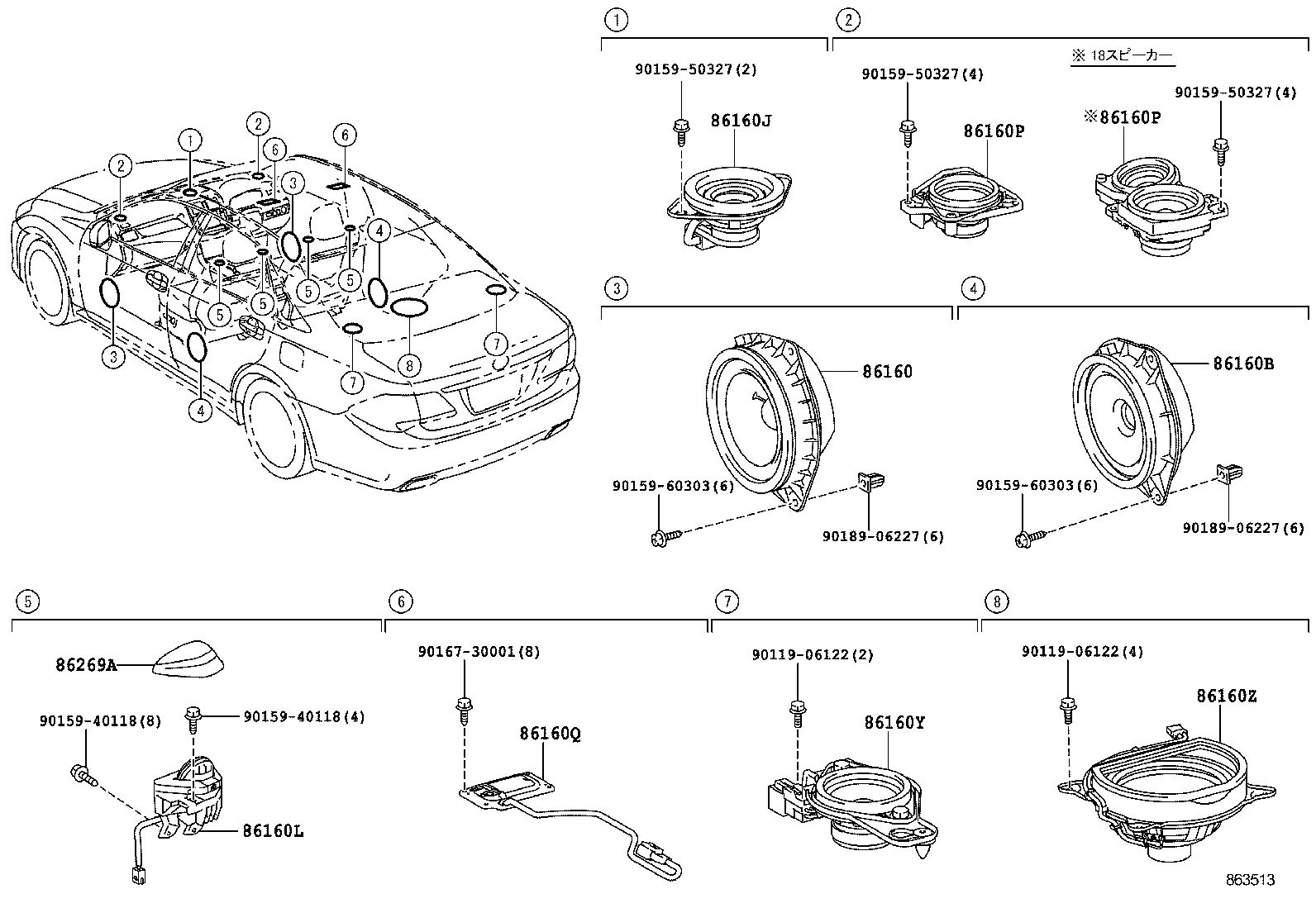

GRS204-AETXH (2008)
Toyota Crown
(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-30A20 |
GRS20#,GWS204 |
2 | ||
| 86160-30B40 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-30B70 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 86160-22A10 |
GRS20#,GWS204 |
2 | ||
| 86160J - SPEAKER ASSY, FRONT NO.3 | ||||
| 86160-30C00 |
GRS202,203,204,GWS204 |
1 | ||
| 86160-30C80 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 86160L - SPEAKER ASSY, FRONT NO.4 | ||||
| 86160-30C60 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,右側 |
2 | ||
| 86160-30C70 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,左側 |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-30B30 |
GRS20#,GWS204 左側 |
1 | ||
| 86160-30B60 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,左側 |
1 | ||
| 86160-30B20 |
GRS20#,GWS204 右側 |
1 | ||
| 86160-30B50 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,右側 |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-30B30 |
GRS20#,GWS204 左側 |
1 | ||
| 86160-30B60 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,左側 |
1 | ||
| 86160-30B20 |
GRS20#,GWS204 右側 |
1 | ||
| 86160-30B50 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,右側 |
1 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-30C50 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,右側 |
1 | ||
| 86160-30C90 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,左側 |
1 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-30C30 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 86160-30C10 |
GRS202,203,204,GWS204 |
2 | ||
| 86160Z - SPEAKER ASSY, REAR NO.3 | ||||
| 86160-30B80 |
GRS202,203,204,GWS204 |
1 | ||
| 86160-30B90 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 86269A - GRILLE, SPEAKER | ||||
| 86269-30020E0 |
GRS204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,DK. BROWN,TRIM4#,左側 |
2 | ||
| 86269-30010B0 |
GRS202,203,204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,右側 |
2 | ||
| 86269-30020B0 |
GRS202,203,204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,左側 |
2 | ||
| 86269-30010E0 |
GRS204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,DK. BROWN,TRIM4#,右側 |
2 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90159-40118 | ||||
| 90159-50327 | ||||
| 90159-60303 | ||||
| 90167-30001 | ||||
| 90189-06227 | ||||
