GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

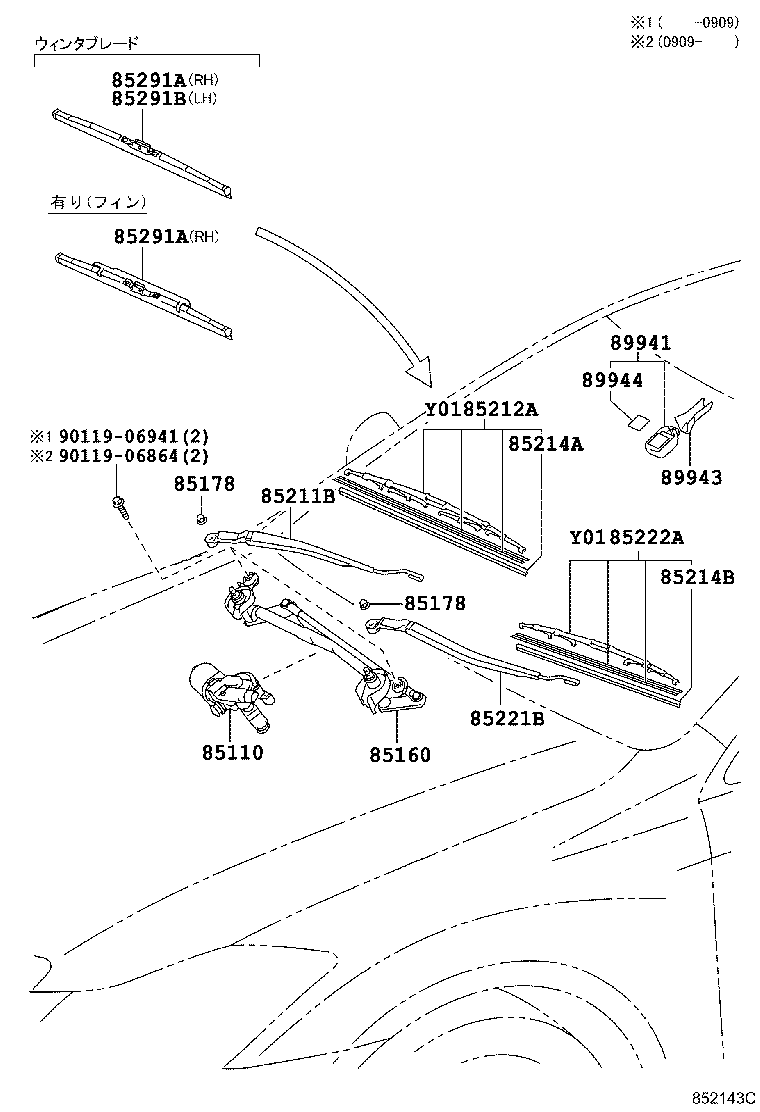

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 89941 89943 89944 9011906864 9011906941
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30570

GRS20#,GWS204

 1
85110-30580

GRS20#,GWS204

寒冷地仕様

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30660

GRS20#,GWS204

 1
85150-30670

GRS20#,GWS204

寒冷地仕様

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

GRS20#,GWS204

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

GRS20#,GWS204

 2
85211B - ARM, FRONT WIPER, RH
85211-30740

GRS20#,GWS204

 1
85211-30750

GRS20#,GWS204

寒冷地仕様

 1
85212A - BLADE, FR WIPER, RH
85212-33240

GRS20#,GWS204

 1
85214A - RUBBER, WIPER, RH
85214-30380

GRS20#,GWS204

 1
85214B - RUBBER, WIPER, LH
85214-30400

GRS20#,GWS204

 1
85221B - ARM, FRONT WIPER, LH
85221-30640

GRS20#,GWS204

 1
85221-30650

GRS20#,GWS204

寒冷地仕様

 1
85222A - BLADE, FR WIPER, LH
85222-30590

GRS20#,GWS204

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-30060

GRS20#,GWS204

寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-50060

GRS20#,GWS204

寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-50060

GRS20#,GWS204

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-30060

GRS20#,GWS204

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-30060

GRS20#,GWS204

寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-50060

GRS20#,GWS204

寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-50060

GRS20#,GWS204

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-30060

GRS20#,GWS204

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-33050

GRS20#,GWS204

寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-22080

GRS20#,GWS204

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
89941 - SENSOR, RAIN
89941-30020

GRS202,203,204,GWS204

 1
89943 - COVER, RAIN SENSOR
89943-22030

GRS202,203,204,GWS204

 1
89944 - TAPE, RAIN SENSOR
89944-42010

GRS202,203,204,GWS204

 1
Common parts
90119-06864
90119-06941
