GRS204-AETXH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
2GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

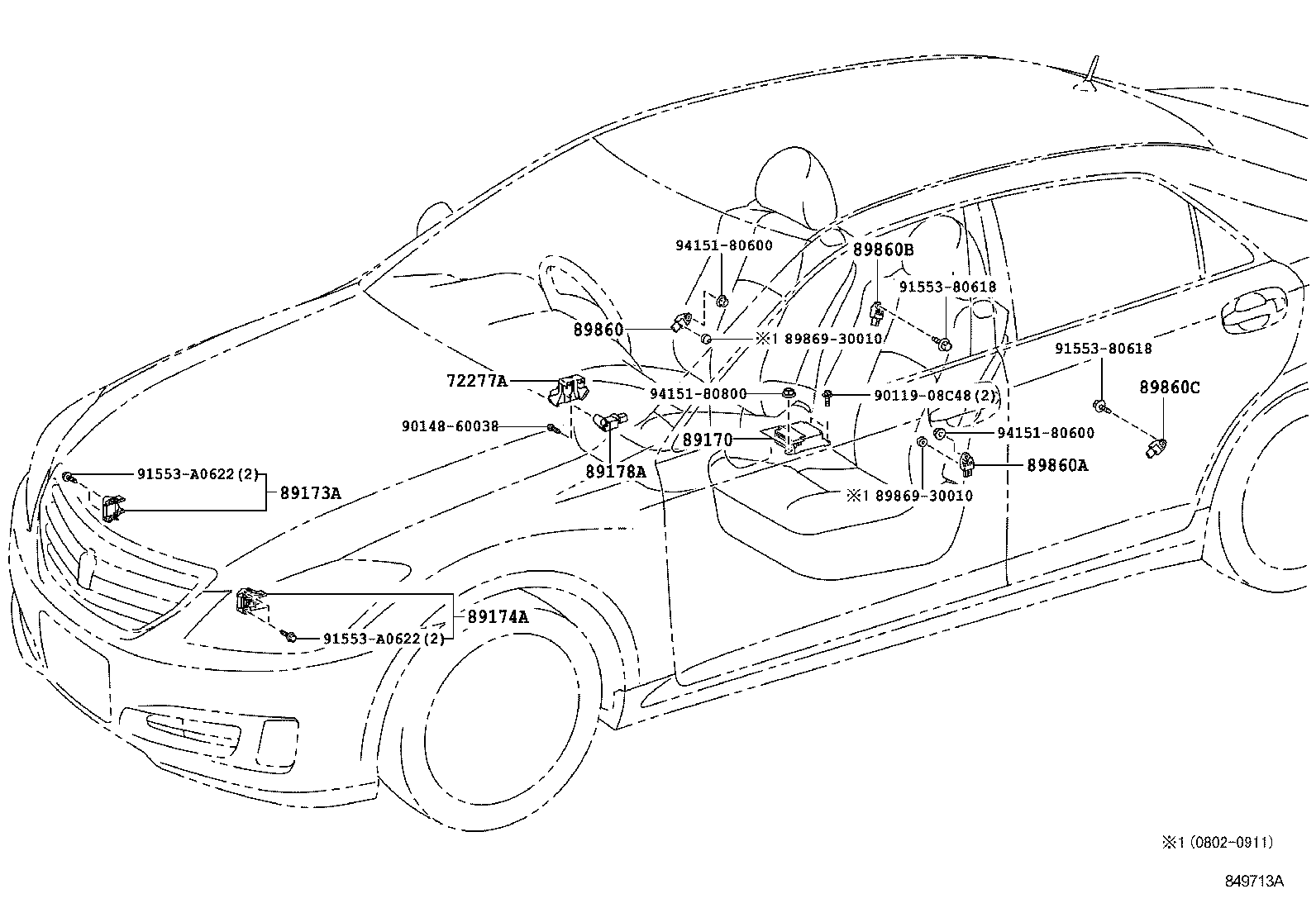

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR | ||||
| 72277-33021 |
GRS20#,GWS204 |
1 | ||
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-30670 |
GRS20#,GWS204 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-39385 |
GRS20#,GWS204 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-39385 |
GRS20#,GWS204 |
1 | ||
| 89178A - SENSOR, SEAT POSITION AIR BAG | ||||
| 89178-33050 |
GRS20#,GWS204 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89831-33010 |
GRS20#,GWS204 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89831-33010 |
GRS20#,GWS204 |
1 | ||
| 89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2 | ||||
| 89831-33020 |
GRS20#,GWS204 |
1 | ||
| 89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2 | ||||
| 89831-33020 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 89869-30010 | ||||
| 90119-08C48 | ||||
| 90148-60038 | ||||
| 91553-80618 | ||||
| 91553-A0622 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
