GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010

Engine 2GRFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0802-1002)GRS200,202,204

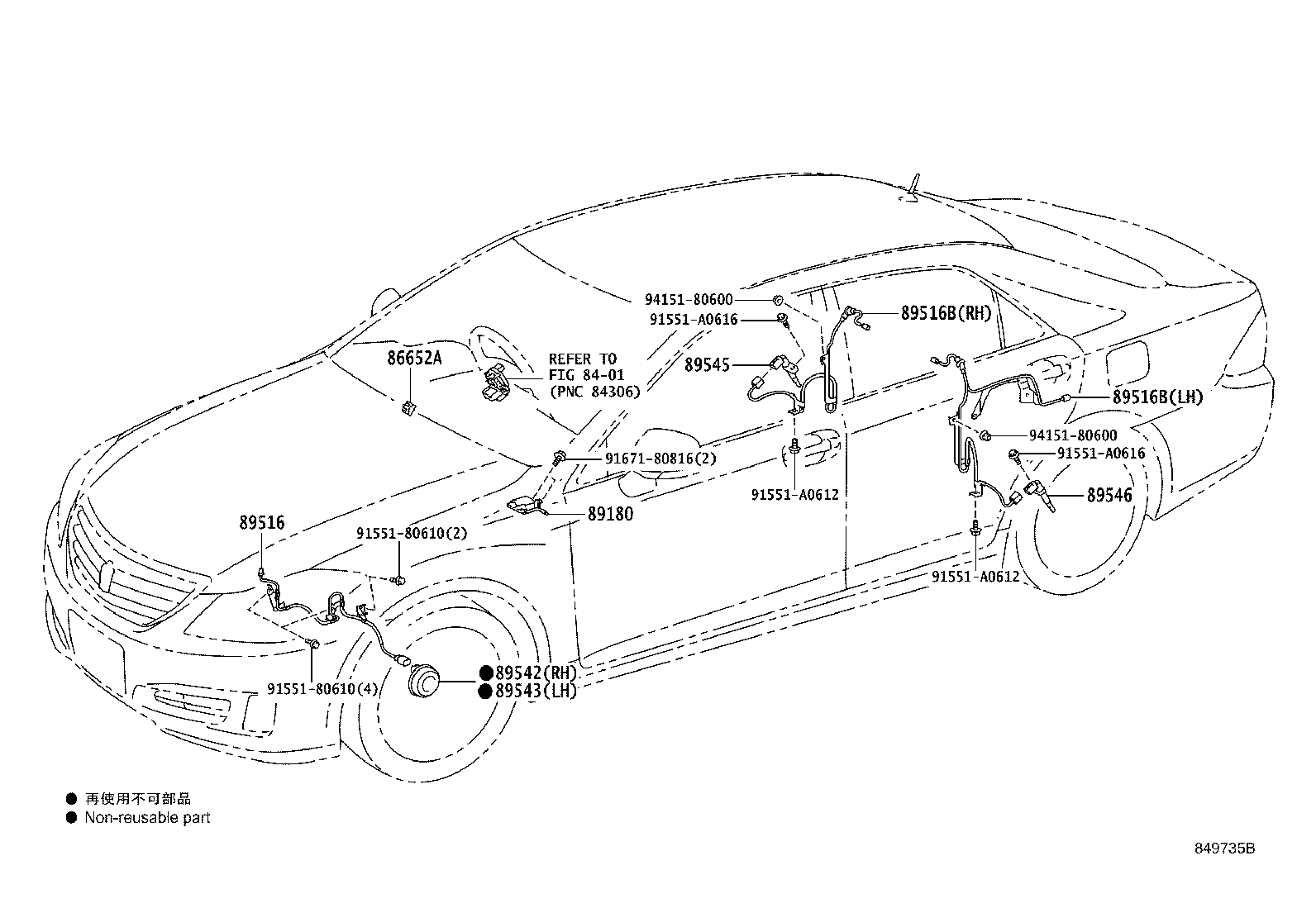

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010	GRS20#,GWS204	02/2008 - 02/2010	1
89180 - SENSOR ASSY, YAWRATE
89180-30090	GRS20#,GWS204	02/2008 - 02/2010	1
89516 - WIRE, SKID CONTROL SENSOR
89516-30030	GRS200,202,204,GWS204..CBU 左側	02/2008 - 02/2010	1
89516-30020	GRS200,202,204,GWS204..CBU 右側	02/2008 - 02/2010	1
89516B - WIRE, SKID CONTROL SENSOR
89516-22040	GRS20#,GWS204 左側	02/2008 - 02/2010	1
89516-22020	GRS20#,GWS204 右側	02/2008 - 02/2010	1
89516B - WIRE, SKID CONTROL SENSOR
89516-22040	GRS20#,GWS204 左側	02/2008 - 02/2010	1
89516-22020	GRS20#,GWS204 右側	02/2008 - 02/2010	1
89542 - SENSOR, SPEED, FRONT RH
89542-30260	GRS200,202,204,GWS204	02/2008 - 02/2010	1
89543 - SENSOR, SPEED, FRONT LH
89543-30260	GRS200,202,204,GWS204	02/2008 - 02/2010	1
89545 - SENSOR, SPEED, REAR RH
89545-30070	GRS20#,GWS204	02/2008 - 02/2010	1
89546 - SENSOR, SPEED, REAR LH
89546-30070	GRS20#,GWS204	02/2008 - 02/2010	1
Common parts
91551-80610
91551-A0612
91551-A0616
91671-80816
94151-80600
Linked diagrams
8401
