GRS204-AETXH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
2GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )GRS20#

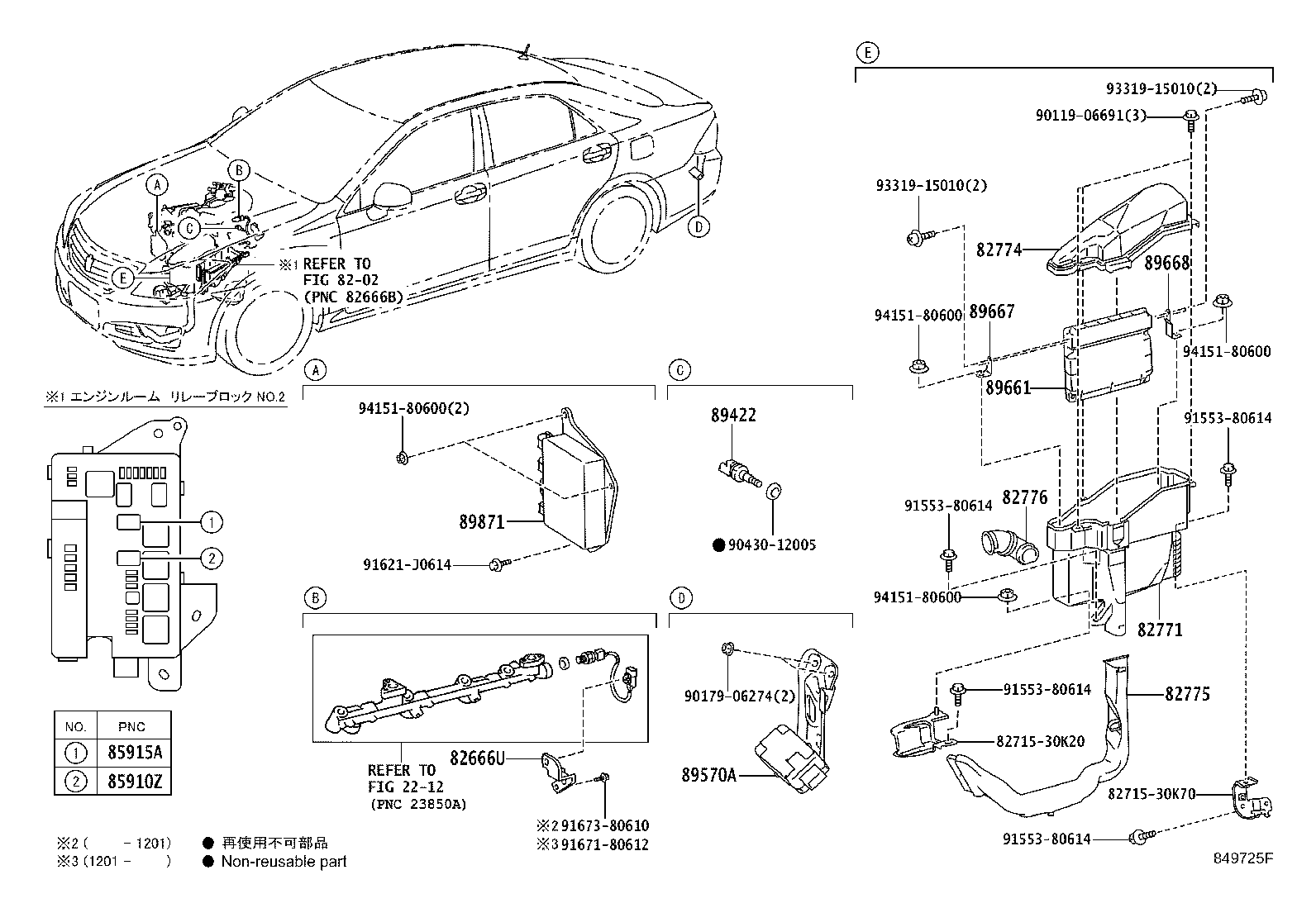

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82666U - HOLDER, CONNECTOR | ||||
| 82666-30780 |
GRS20#,GWS204 |
1 | ||
| 82771 - BOX, ENGINE ROOM ECU | ||||
| 82771-30060 |
GRS20# |
1 | ||
| 82774 - COVER, ENGINE ROOM ECU | ||||
| 82774-30060 |
GRS20# |
1 | ||
| 82776 - DUCT, ENGINE ROOM ECU OUTLET | ||||
| 82776-30120 |
GRS20# |
1 | ||
| 85910Z - RELAY, INJECTION (FOR EFI) | ||||
| 90987-02027 |
GRS20#,GWS204 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02027 |
GRS20#,GWS204 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
GRS20#,GWS204 |
1 | ||
| 89570A - COMPUTER ASSY, FUEL PUMP CONTROL | ||||
| 89570-30190 |
GRS20# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-30F90 |
GRS204 DENSO |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-30300 |
GRS20# |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-30280 |
GRS20# |
1 | ||
| 89871 - DRIVER, INJECTOR | ||||
| 89871-53010 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 82715-30K20 | ||||
| 82715-30K70 | ||||
| 90119-06691 | ||||
| 90179-06274 | ||||
| 90430-12005 | ||||
| 91553-80614 | ||||
| 91621-J0614 | ||||
| 91671-80612 | ||||
| 91673-80610 | ||||
| 93319-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 2212 | ||||
| 8202 | ||||
