GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )GRS20#

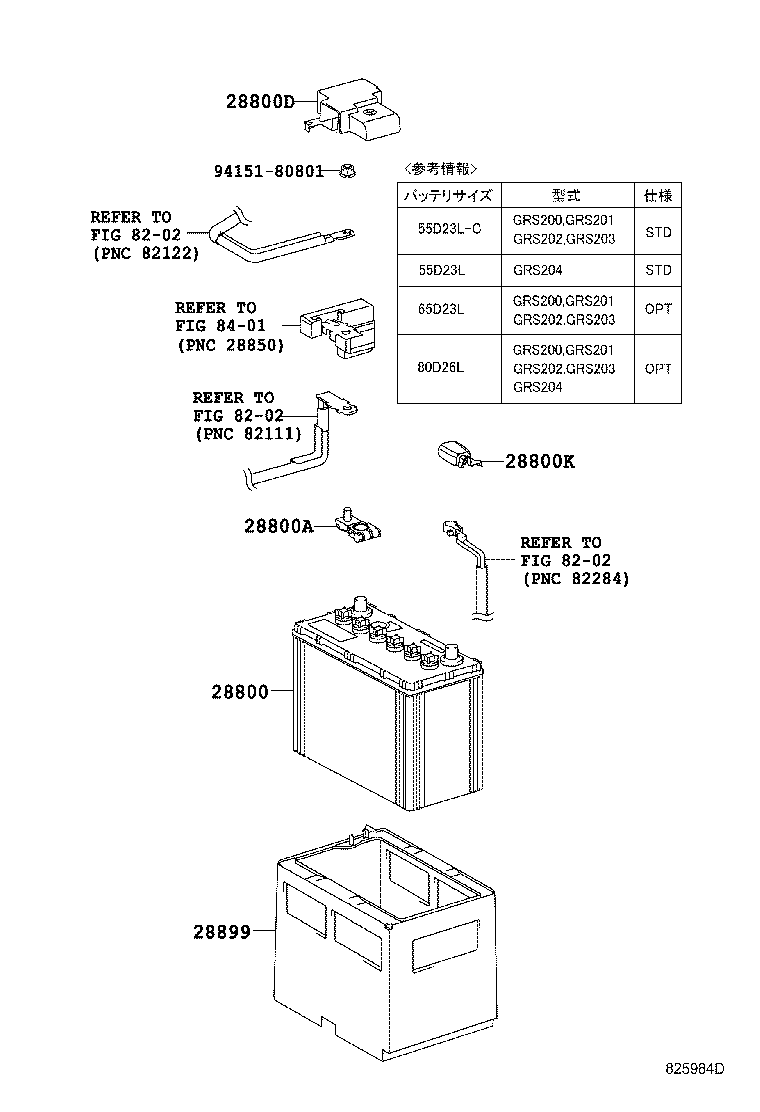

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800K 28899 8202 8202 8202 8401 9415180801
Part # Description Qty Price
28800 - BATTERY
00000-00000

2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU

寒冷地仕様,該当品番なし

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

2GRFSE,3GRFSE,4GRFSE..GRS20#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-30740

2GRFSE,3GRFSE,4GRFSE..GRS20#

 1
28800K - COVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)
82821-50450

2GRFSE,3GRFSE,4GRFSE..GRS20#

 1
28899 - INSULATOR, BATTERY
28899-31090

2GRFSE,3GRFSE,4GRFSE..GRS20#

 1
28899-38060

2GRFSE,3GRFSE,4GRFSE..GRS20#

寒冷地仕様

 1
Common parts
94151-80801
Linked diagrams
8202
8401
