GRS204-AETXH (2008)
Toyota Crown
(0802-1002)

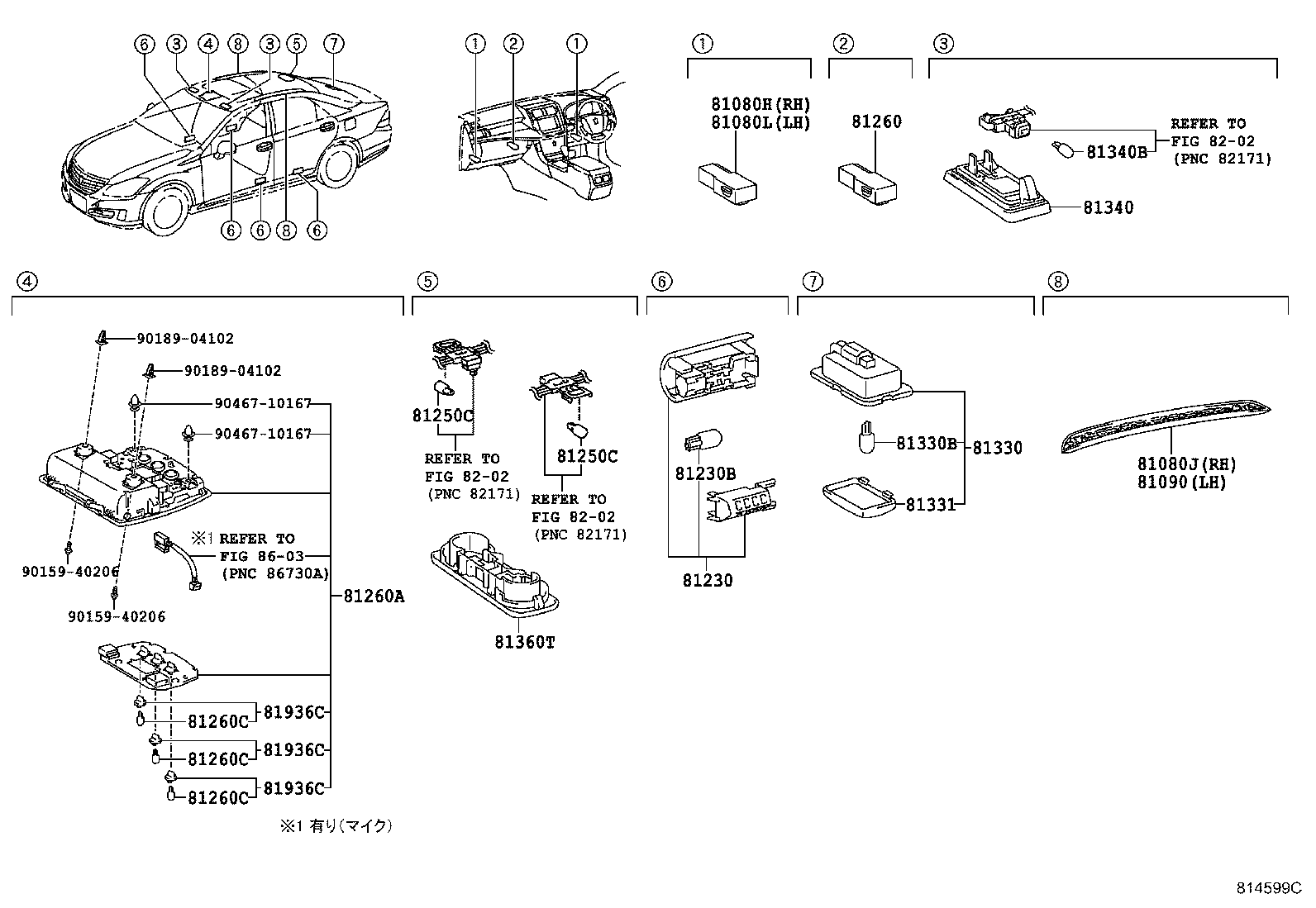

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-48010 |
GRS20#,GWS204 |
1 | ||
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-30070B0 |
GRS204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動),GRAY,TRIM1#,4# |
1 | ||
| 81080-30070B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 81080-30070B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM1#,4# |
1 | ||
| 81080-30070B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-48010 |
GRS20#,GWS204 |
1 | ||
| 81090 - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81090-30010B0 |
GRS204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動),GRAY,TRIM1#,4# |
1 | ||
| 81090-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 81090-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 81090-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM1#,4# |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-47010 |
GRS20#,GWS204 |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
GRS20#,GWS204 12V 5W |
4 | ||
| 81250C - BULB, SPOT LAMP | ||||
| 90981-11062 |
GRS20#,GWS204 12V 8W |
2 | ||
| 81250C - BULB, SPOT LAMP | ||||
| 90981-11062 |
GRS20#,GWS204 12V 8W |
2 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-48010 |
GRS20#,GWS204 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-30B30B0 |
GRS204 GRAY,TRIM1#,4# |
1 | ||
| 81260-30B60B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動),GRAY,TRIM1#,4# |
1 | ||
| 81260-30B40B0 |
GRS204 GｰBOOK−有り,GRAY,TRIM1#,4# |
1 | ||
| 81260-30B70B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り,GRAY,TRIM1#,4# |
1 | ||
| 81260-30B31B0 |
GRS204 GRAY,TRIM1#,4# |
1 | ||
| 81260-30B71B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り,GRAY,TRIM1#,4# |
1 | ||
| 81260-30B41B0 |
GRS204 GｰBOOK−有り,GRAY,TRIM1#,4# |
1 | ||
| 81260-30B61B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動),GRAY,TRIM1#,4# |
1 | ||
| 81260-30B41B0 |
GRS204 GRAY,TRIM1#,4# |
1 | ||
| 81260-30B71B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動),GRAY,TRIM1#,4# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
GRS20#,GWS204 12V 8W |
3 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
GRS20#,GWS204 12V 8W |
3 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
GRS20#,GWS204 12V 8W |
3 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-50021 |
GRS20#,GWS204 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
GRS20#,GWS204 12V 3.8W |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-50010 |
GRS20#,GWS204 |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100B1 |
GRS200,201,204,GWS204..ATH,HBD GRAY,TRIM1#,4# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
GRS20#,GWS204 12V 8W |
2 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-30040B1 |
GRS200,201,204,GWS204..ATH,HBD GRAY,TRIM1#,4# |
1 | ||
| 81360-30050B0 |
GRS200,201,204,GWS204..ATH,HBD GRAY,TRIM1#,4# |
1 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
GRS20#,GWS204 |
3 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
GRS20#,GWS204 |
3 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
GRS20#,GWS204 |
3 | ||
| Common parts | ||||
| 90159-40206 | ||||
| 90189-04102 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8603 | ||||
