GRS204-AETXH (2008)
Toyota Crown

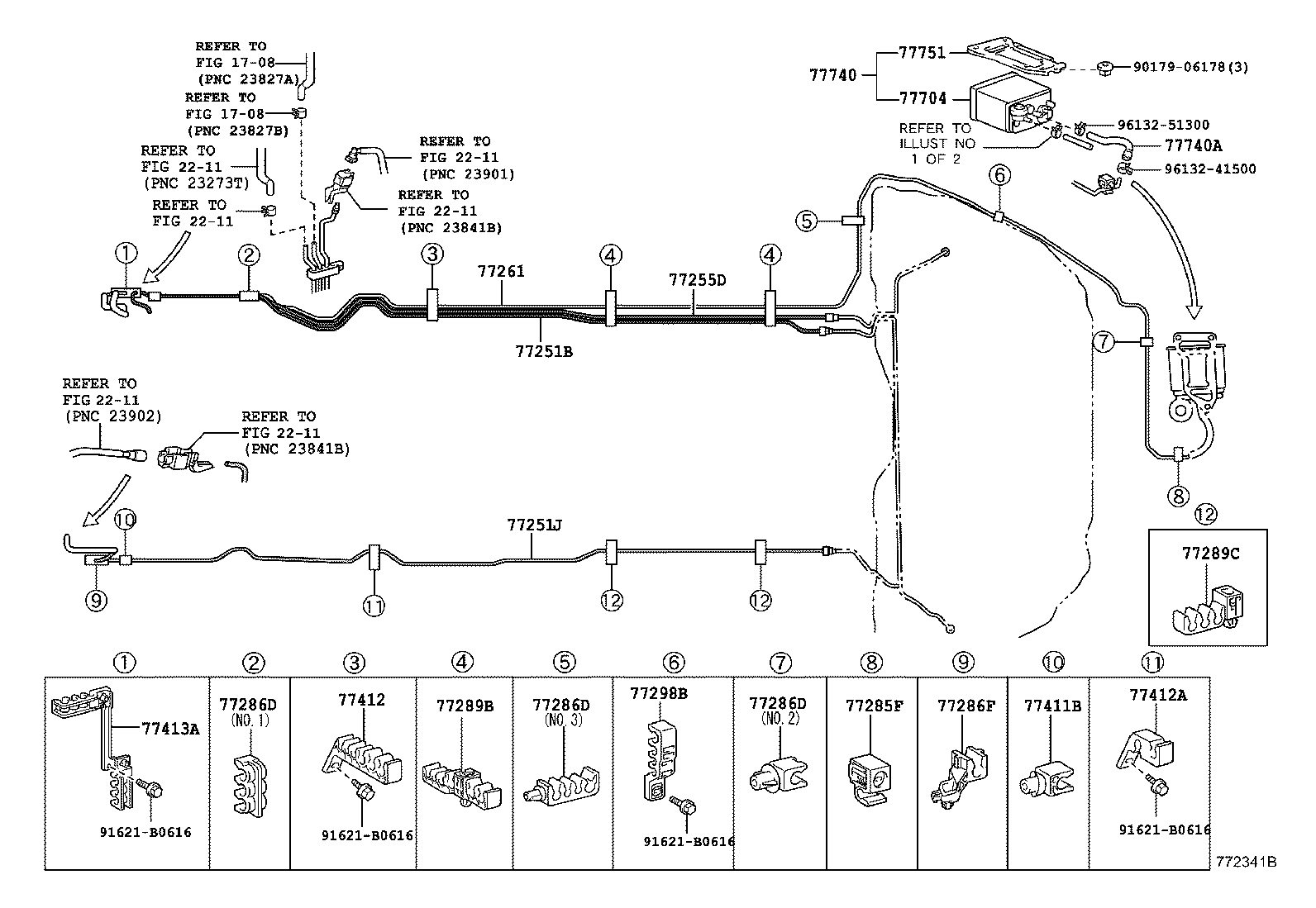

ILLUST NO. 2 OF 2(0802- )GRS204
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-22540 |
GRS20#,GWS204 |
1 | ||
| 77251J - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-30480 |
GRS204 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-22430 |
GRS20#,GWS204 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-30310 |
GRS20# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50030 |
GRS20#,GWS204 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20170 |
GRS20#,GWS204 NO.1 |
1 | ||
| 77286-30120 |
GRS20# NO.2 |
1 | ||
| 77286-30110 |
GRS20# NO.3 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20170 |
GRS20#,GWS204 NO.1 |
1 | ||
| 77286-30120 |
GRS20# NO.2 |
1 | ||
| 77286-30110 |
GRS20# NO.3 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20170 |
GRS20#,GWS204 NO.1 |
1 | ||
| 77286-30120 |
GRS20# NO.2 |
1 | ||
| 77286-30110 |
GRS20# NO.3 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30150 |
GRS204 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-30060 |
GRS20#,GWS204 |
2 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-30070 |
GRS204 |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30150 |
GRS20#,GWS204 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-53010 |
GRS204 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-30060 |
GRS20#,GWS204 |
1 | ||
| 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-30090 |
GRS204,GWS204 |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-30071 |
GRS20#,GWS204 |
1 | ||
| 77413-30070 |
GRS20#,GWS204 |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-30200 |
GRS20#,GWS204 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30320 |
GRS20#,GWS204 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-46290 |
GRS20#,GWS204 長さ=185 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-30150 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 91621-B0616 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

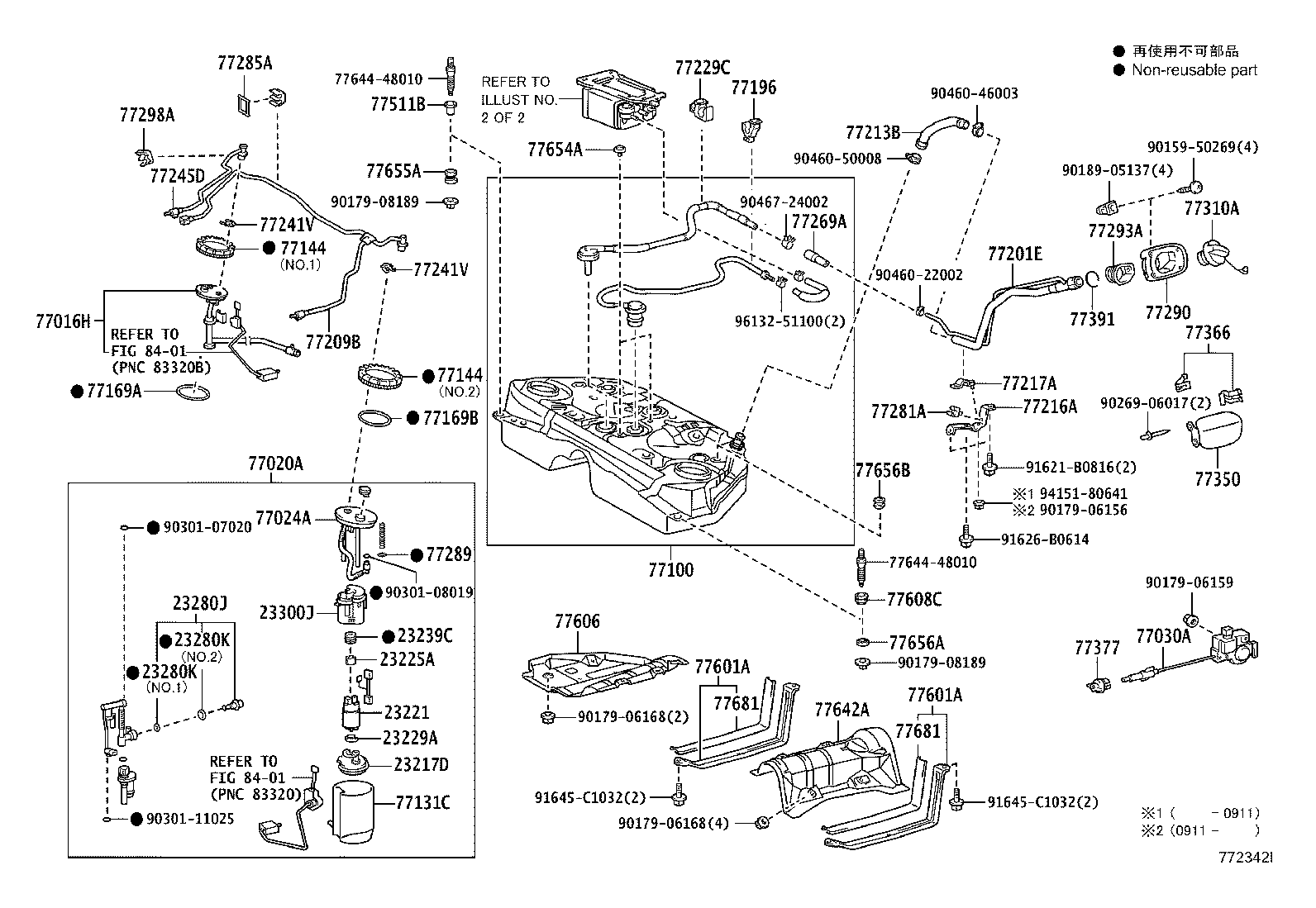

ILLUST NO. 1 OF 2(0802-1002)GRS20#
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31100 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31340 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 23221-31090 |
2GRFSE..GRS204,GWS204 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-31020 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 NO.1 |
1 | ||
| 90301-15024 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 NO.1 |
1 | ||
| 90301-15024 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 NO.2 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-31140 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-30080 |
GRS20# |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-30291 |
GRS204 |
1 | ||
| 77020-30292 |
GRS20# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30110 |
GRS20# |
1 | ||
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-30170 |
GRS20#,GWS204 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30561 |
GRS20# |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-30071 |
GRS20# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-47020 |
GRS20# NO.2 |
1 | ||
| 77144-30020 |
GRS20# NO.1 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-47020 |
GRS20# NO.2 |
1 | ||
| 77144-30020 |
GRS20# NO.1 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-30010 |
GRS20# |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-47030 |
GRS20# |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-30050 |
GRS20# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-30490 |
GRS20# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-30220 |
GRS204 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30191 |
GRS20# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-30050 |
GRS20#,GWS204 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-30130 |
GRS20#,GWS204 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-30050 |
GRS20# |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-60320 |
GRS20#,GWS204 |
2 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-60320 |
GRS20#,GWS204 |
2 | ||
| 77245D - TUBE, FUEL TANK RETURN VENT | ||||
| 77245-30170 |
GRS20# |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-30060 |
GRS204 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-50020 |
GRS20#,GWS204 |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-30230 |
GRS20# |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
GRS20# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-30130 |
GRS20#,GWS204 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-30090 |
GRS20#,GWS204 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30180 |
GRS20# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
GRS20#,GWS204 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30390 |
GRS20#,GWS204 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
GRS20#,GWS204 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
GRS20#,GWS204 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GRS20#,GWS204 |
1 | ||
| 77511B - BRACKET, FUEL TANK | ||||
| 77511-48030 |
GRS20# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30170 |
GRS20# |
2 | ||
| 77601-30171 |
GRS20# |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30170 |
GRS20# |
2 | ||
| 77601-30171 |
GRS20# |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-30190 |
GRS20# |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48010 |
GRS20# |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-30030 |
GRS20# |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-30020 |
GRS20# |
2 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-30080 |
GRS20# |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77655-48010 |
GRS20# |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
GRS20# |
4 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-30010 |
GRS20# |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-30010 |
GRS20# |
2 | ||
| Common parts | ||||
| 77644-48010 | ||||
| 90159-50269 | ||||
| 90179-06156 | ||||
| 90179-06159 | ||||
| 90179-06168 | ||||
| 90179-08189 | ||||
| 90189-05137 | ||||
| 90269-06017 | ||||
| 90301-07020 | ||||
| 90301-08019 | ||||
| 90301-11025 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-50008 | ||||
| 90467-24002 | ||||
| 91621-B0816 | ||||
| 91626-B0614 | ||||
| 91645-C1032 | ||||
| 94151-80641 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
