GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

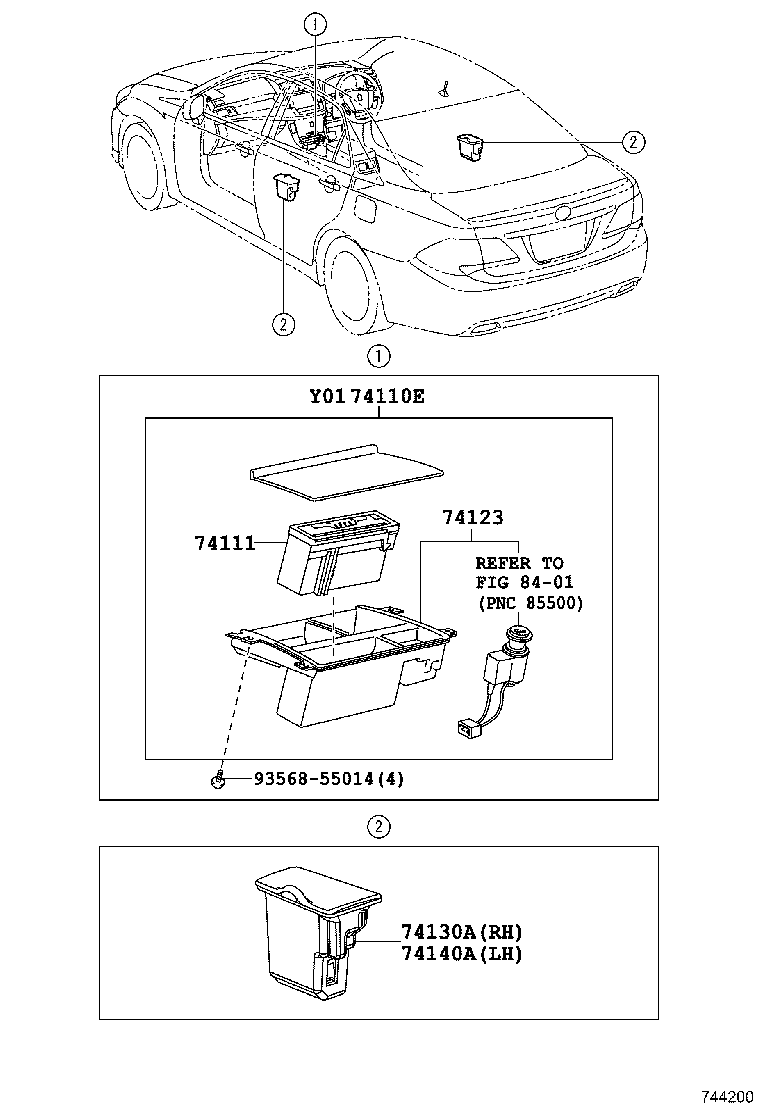

Click highlighted areas on diagram

diagram 74110E 74111 74123 74130A 74140A 8401 9356855014
Part # Description Qty Price
74110E - RECEPTACLE ASSY, FRONT ASH
74110-30420

GRS20#,GWS204

 1
74111 - BOX, FRONT ASH RECEPTACLE
74111-30190

GRS20#,GWS204

 1
74123 - RETAINER, ASH RECEPTACLE
74121-30170

GRS20#,GWS204

 1
74130A - RECEPTACLE ASSY, REAR ASH, RH
74130-30380C0

GRS200,201,204..ATH

BLACK,TRIM1#,4#

 1
74130-30410C1

GRS200,201,204..ATH

“Anniversary Edition” *(A),BLACK,TRIM1#,4#

 1
74140A - RECEPTACLE ASSY, REAR ASH, LH
74140-30250C1

GRS200,201,204..ATH

“Anniversary Edition” *(A),BLACK,TRIM1#,4#

 1
74140-30220C0

GRS200,201,204..ATH

BLACK,TRIM1#,4#

 1
Common parts
93568-55014
Linked diagrams
8401
