GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

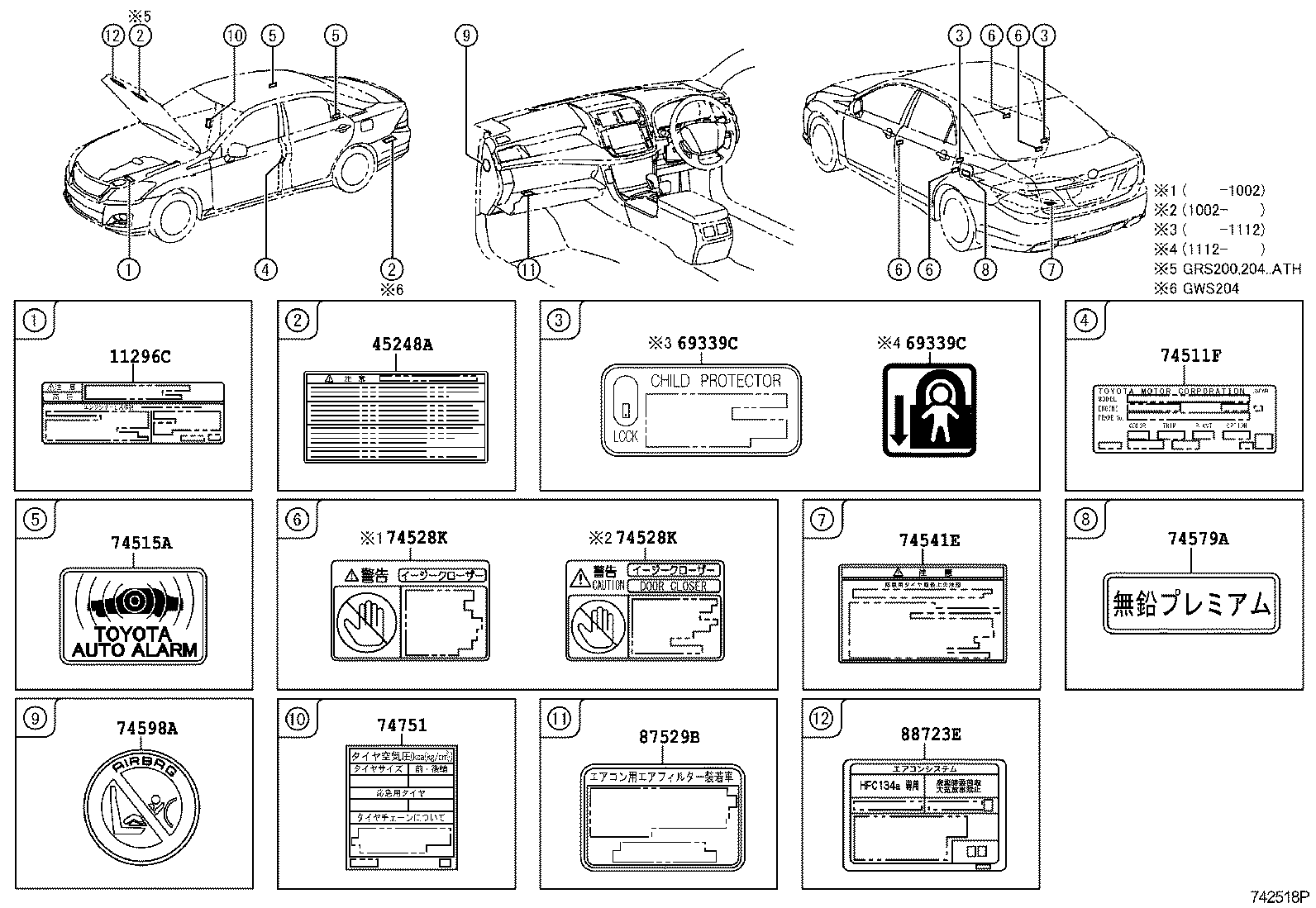

ILLUST NO. 1 OF 2(0802- )

Click highlighted areas on diagram

diagram 11296C 45248A 69339C 69339C 74511F 74515A 74528K 74528K 74541E 74579A 74598A 74751 87529B 88723E
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-31100

2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU

 1
45248A - LABEL, STEERING ACTUATOR CAUTION
45248-30010

GRS204,GWS204

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

GRS20#,GWS204..CBU

 2
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

GRS20#,GWS204..CBU

 2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-33040

GRS20#,GWS204..CBU

*111

 1
74515A - PLATE, THEFT WARNING
74515-33020

GRS20#,GWS204..CBU

 2
74528K - LABEL, DOOR CLOSER CAUTION
74528-30010

GRS203..CBU;GRS202,204,GWS204..ATH,HBD,ROYG

 4
74528K - LABEL, DOOR CLOSER CAUTION
74528-30010

GRS203..CBU;GRS202,204,GWS204..ATH,HBD,ROYG

 4
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-30010

GRS20#,GWS204..CBU

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-24010

GRS20#,GWS204..CBU

 1
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

GRS20#,GWS204..CBU

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-30A30

GRS200,201,204..ATH

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

GRS20#,GWS204..CBU

 1
88723E - LABEL, COOLER SERVICE CAUTION
88733-21020

GRS20#..(ATH,ROY)..CBU

 1
88733-27010

GRS204

ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)

 1

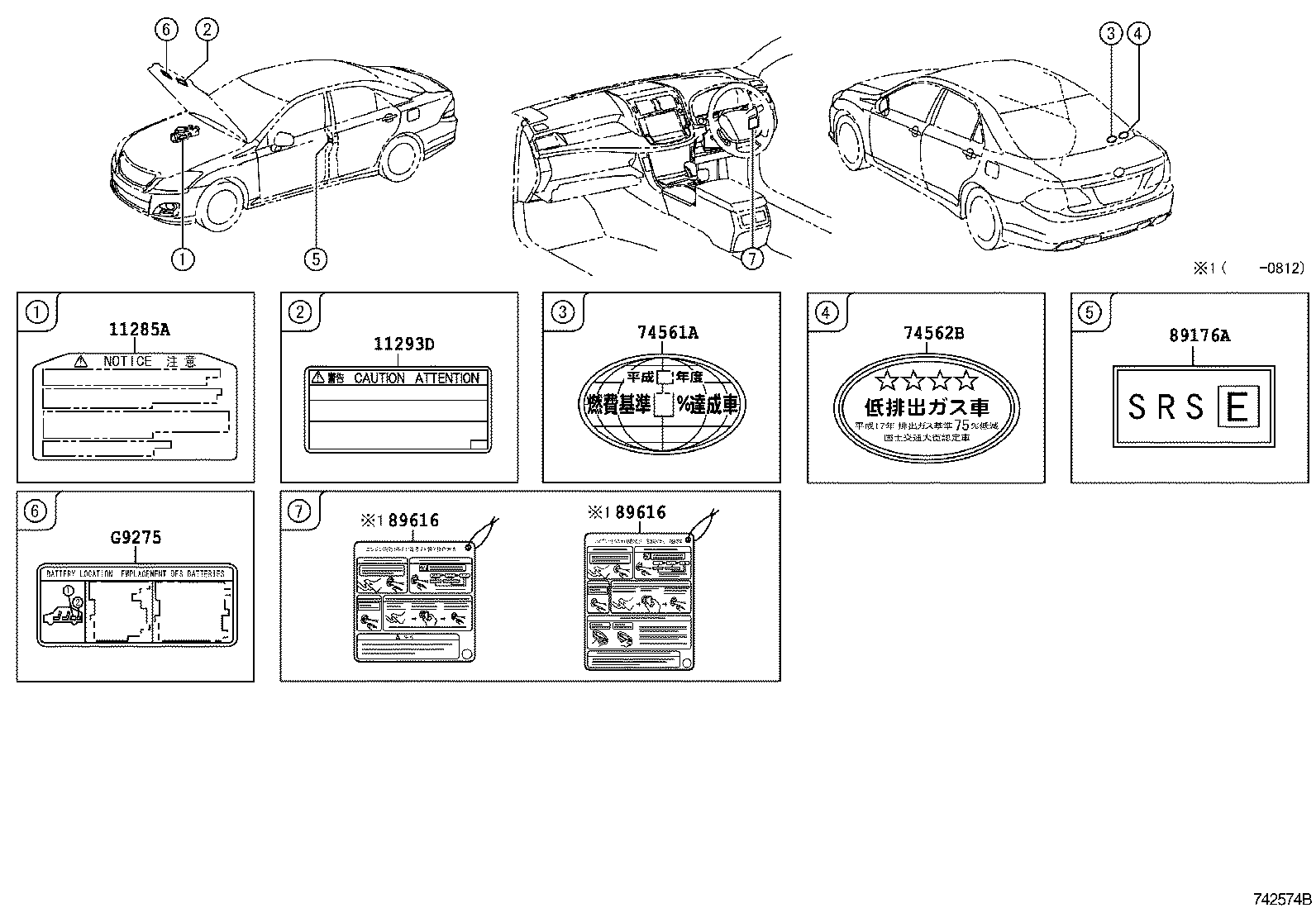

ILLUST NO. 2 OF 2(0802- )

Click highlighted areas on diagram

diagram 11285A 11293D 74561A 74562B 89176A 89616 89616 G9275
Part # Description Qty Price
74562B - LABEL, EMISSION INFORMATION
74562-47010

GRS20#,GWS204..CBU

 1
74562-47010

GRS204

ｽｰﾊﾟｰﾁｬｰｼﾞｬｰ

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-20010

GRS20#,GWS204..CBU

 1
89616 - LABEL, PUSH START INFORMATION
89616-30091

GRS20#..CBU

 1
89616 - LABEL, PUSH START INFORMATION
89616-30091

GRS20#..CBU

 1
