GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )GRS20#

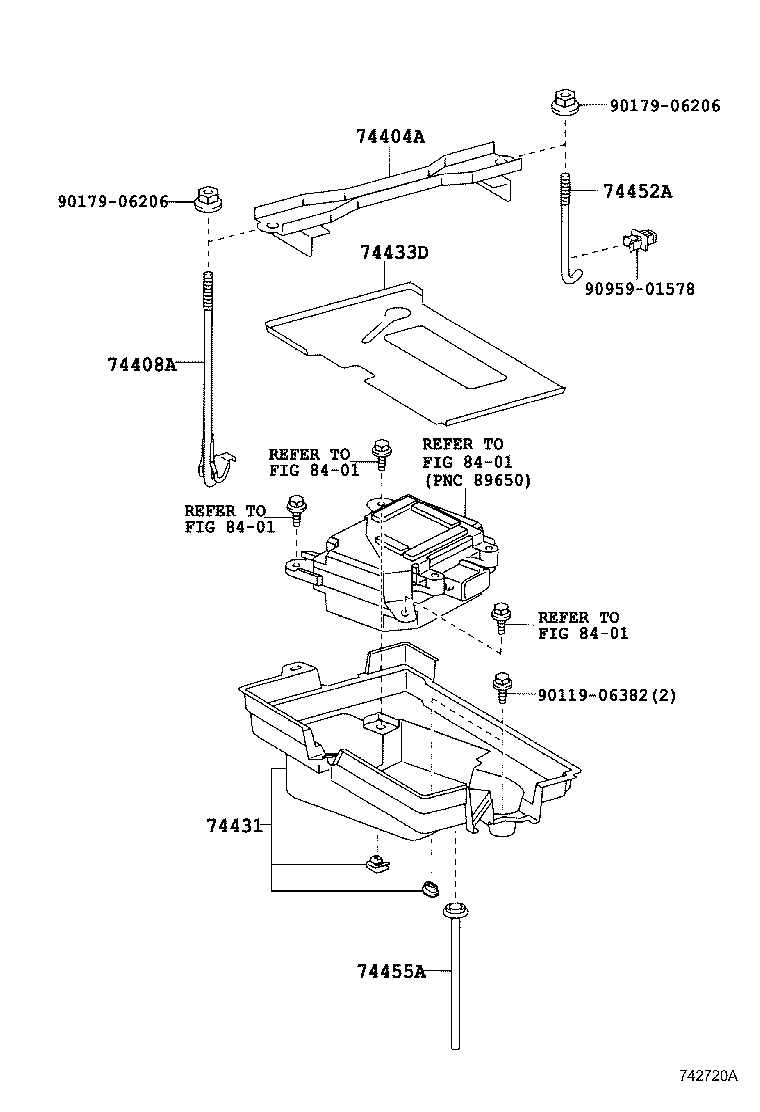

Click highlighted areas on diagram

diagram 74404A 74408A 74431 74433D 74452A 74455A 8401 8401 8401 8401 9011906382 9017906206 9017906206 9095901578
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-30280

GRS20#

 1
74408A - BOLT SUB-ASSY, BATTERY CLAMP, NO.2
74408-30010

GRS20#

 1
74431 - TRAY, BATTERY
74431-30190

GRS20#

 1
74431-30191

GRS20#

 1
74433D - SUPPORT, BATTERY TRAY,NO.1
74433-30022

GRS20#

 1
74433-30021

GRS20#

 1
74452A - BOLT, BATTERY CLAMP, NO.2
74452-30010

GRS20#

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

GRS20#

 1
Common parts
90119-06382
90179-06206
90959-01578
Linked diagrams
8401
