GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0802- )

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄﾍﾞﾙﾄ

diagram 73223 73223 73343 73344 73345 73360 73370 73470B 73480 73480 73717 73717 73719 73719 9010508253 9010508253 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 91511B0614 91511B0614 91511B0614 9356054014 9356054014 9356054014 9356056035 9356056035
Part # Description Qty Price
73223 - COVER, SEAT BELT RETRACTOR
73223-30140

GRS20#,GWS204..CBU

 2
73223 - COVER, SEAT BELT RETRACTOR
73223-30140

GRS20#,GWS204..CBU

 2
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73330-33010B2

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73330-33010E1

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73340-33010E1

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73340-33010B2

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73343-30060B4

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73343-30060E1

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-30470E1

GRS200,201,204,GWS204..ATH,HBD

DK.BROWN,TRIM4#

 1
73360-30470B1

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73360-30490E1

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73360-30490B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-30300E1

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73370-30300B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73370-30280B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73370-30280E0

GRS200,201,204,GWS204..ATH,HBD

DK.BROWN,TRIM4#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-30040E1

GRS200,201,204,GWS204..ATH,HBD

DK.BROWN,TRIM4#

 1
73470-30040B1

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73470-30050E1

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73470-30050B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-30260B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73480-30260E0

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73480-30280E1

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73480-30280B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-30260B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73480-30260E0

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73480-30280E1

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73480-30280B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-50020B5

GRS20#,GWS204..CBU

GRAY,TRIM1#

 2
73717-50020E3

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 2
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-50020B5

GRS20#,GWS204..CBU

GRAY,TRIM1#

 2
73717-50020E3

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-30010

GRS20#,GWS204..CBU

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-30010

GRS20#,GWS204..CBU

 2
Common parts
90105-08253
90105-11036
91511-B0614
93560-54014
93560-56035

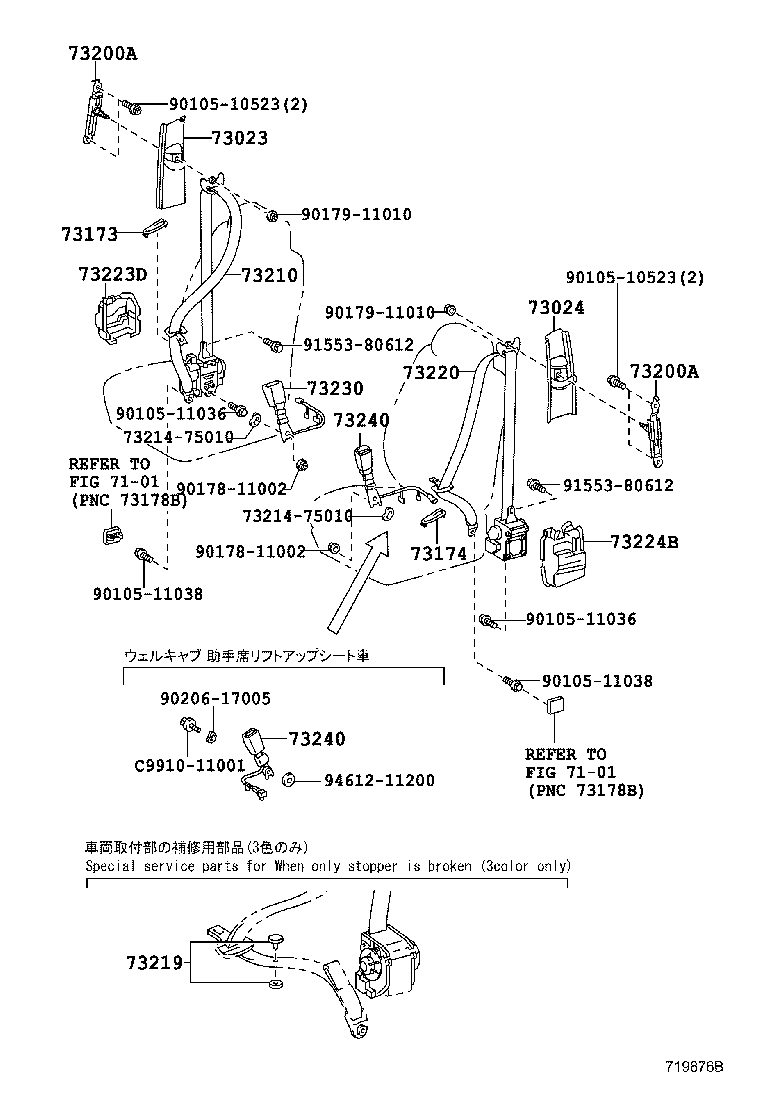

ILLUST NO. 1 OF 2(0802- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄﾍﾞﾙﾄ

diagram 7101 7101 73023 73024 73173 73174 73200A 73200A 73210 7321475010 7321475010 73219 73220 73223D 73224B 73230 73240 73240 9010510523 9010510523 9010511036 9010511036 9010511038 9010511038 9017811002 9017811002 9017911010 9017911010 9020617005 9155380612 9155380612 9461211200 C991011001
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-53010B1

GRS200,201,204,GWS204..ATH,HBD

GRAY,TRIM1#,4#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-53010B1

GRS200,201,204,GWS204..ATH,HBD

GRAY,TRIM1#,4#

 1
73173 - COVER, FRONT SEAT BELT HOLE, RH
73173-30070E0

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73173-30070B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73174 - COVER, FRONT SEAT BELT HOLE, LH
73174-30070B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73174-30070E0

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-53010

GRS20#,GWS204..CBU

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-53010

GRS20#,GWS204..CBU

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-30C50B3

GRS204

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り,BLACK/DK.BROWN/GRAY,TRIM4#

 1
73210-30C60B2

GRS20#..CBU

GRAY/GRAY/GRAY,TRIM1#

 1
73210-30C50B3

GRS204

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),BLACK/DK.BROWN/GRAY,TRIM4#

 1
73210-30C60B3

GRS200,201,204..ATH

BLACK/DK.BROWN/GRAY,TRIM4#

 1
73210-30C50B2

GRS202,203,204..CBU

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り,GRAY/GRAY/GRAY,TRIM1#

 1
73210-30C50B2

GRS202,204..ATH,ROYG

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),GRAY/GRAY/GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-30C10B3

GRS204

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り,BLACK/DK.BROWN/GRAY,TRIM4#

 1
73220-30C10B3

GRS204

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),BLACK/DK.BROWN/GRAY,TRIM4#

 1
73220-30C10B2

GRS202,203,204..CBU

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り,GRAY/GRAY/GRAY,TRIM1#

 1
73220-30C20B3

GRS200,201,204..ATH

BLACK/DK.BROWN/GRAY,TRIM4#

 1
73220-30C20B2

GRS20#..CBU

GRAY/GRAY/GRAY,TRIM1#

 1
73220-30C10B2

GRS202,204..ATH,ROYG

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),GRAY/GRAY/GRAY,TRIM1#

 1
73223D - COVER, FRONT SEAT BELT RETRACTOR, RH
73223-30130

GRS20#,GWS204..CBU

 1
73224B - COVER, FRONT SEAT BELT RETRACTOR, LH
73224-30100

GRS20#,GWS204..CBU

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-30A40E0

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73230-30A40B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-30A60E0

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73230-30A60B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-30A60E0

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
73230-30A60B0

GRS20#,GWS204..CBU

GRAY,TRIM1#

 1
Common parts
73214-75010
90105-10523
90105-11036
90105-11038
90178-11002
90179-11010
90206-17005
91553-80612
94612-11200
C9910-11001
Linked diagrams
7101
