GRS204-AETXH (2008)
Toyota Crown
ILLUST NO. 2 OF 2(0802- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-30J80C1 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK. BROWN,TRIM4# |
1 | ||
| 67630-30J70C3 |
GRS200,201,204..ATH DK. BROWN,TRIM4# |
1 | ||
| 67630-30J70C2 |
GRS200,201,204..ATH GRAY,TRIM1# |
1 | ||
| 67630-30J80C1 |
GRS204 ｼｰﾄ表皮−本革,DK. BROWN,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
GRS20#,GWS204 |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-30J80C1 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK. BROWN,TRIM4# |
1 | ||
| 67640-30J70C2 |
GRS200,201,204..ATH GRAY,TRIM1# |
1 | ||
| 67640-30J70C3 |
GRS200,201,204..ATH DK. BROWN,TRIM4# |
1 | ||
| 67640-30J80C1 |
GRS204 ｼｰﾄ表皮−本革,DK. BROWN,TRIM4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-30180 |
GRS20#,GWS204 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-30140 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 67923-30190 | ||||
| 90164-40105 | ||||
| 90164-60014 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||
| 7404 | ||||
| 8121 | ||||

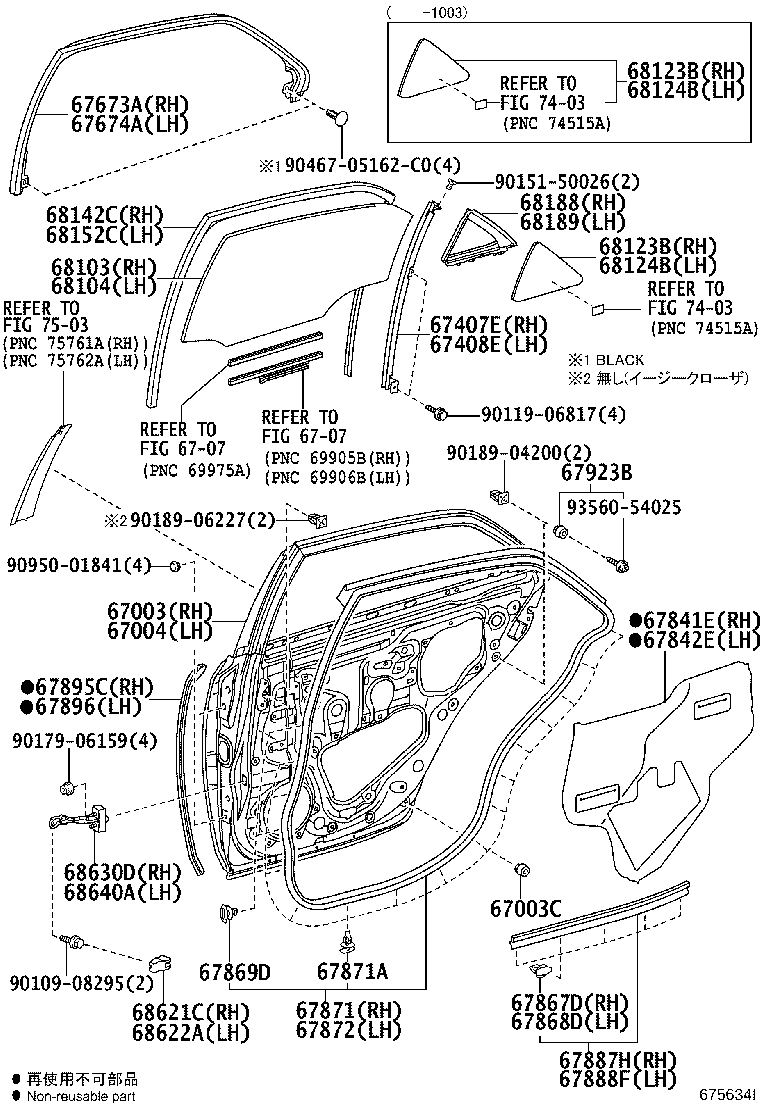

ILLUST NO. 1 OF 2(0802- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30630 |
GRS20#,GWS204 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
GRS20#,GWS204 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30630 |
GRS20#,GWS204 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-30190 |
GRS20#,GWS204 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-30180 |
GRS20#,GWS204 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-30070 |
GRS20#..ATH,ROY |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-30070 |
GRS20#..ATH,ROY |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30430 |
GRS20#,GWS204 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30290 |
GRS20#,GWS204 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-52010 |
GRS20#,GWS204 |
5 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
GRS20#,GWS204 |
5 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-04034 |
GRS20#,GWS204 |
4 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30270 |
GRS20#,GWS204 |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
GRS20#,GWS204 |
30 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30280 |
GRS20#,GWS204 |
1 | ||
| 67887H - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-30150 |
GRS20#,GWS204 |
1 | ||
| 67888F - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-30150 |
GRS20#,GWS204 |
1 | ||
| 67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH | ||||
| 67895-30030 |
GRS20#,GWS204 |
1 | ||
| 67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH | ||||
| 67896-30030 |
GRS20#,GWS204 |
1 | ||
| 67923B - CUSHION, REAR DOOR STIFFENER, NO.1 | ||||
| 67923-24030 |
GRS20#,GWS204 |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-30750 |
GRS200,201,204,GWS204..ATH,HBD *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68113-30751 |
GRS20#,GWS204 *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68113-30760 |
GRS20#,GWS204 *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-30670 |
GRS200,201,204,GWS204..ATH,HBD *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68114-30671 |
GRS20#,GWS204 *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68114-30680 |
GRS20#,GWS204 *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-30541 |
GRS20#,GWS204 *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68123-30540 |
GRS200,201,204,GWS204..ATH,HBD *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68123-30570 |
GRS20#,GWS204 *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-30541 |
GRS20#,GWS204 *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68123-30540 |
GRS200,201,204,GWS204..ATH,HBD *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68123-30570 |
GRS20#,GWS204 *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-30480 |
GRS200,201,204,GWS204..ATH,HBD *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68124-30481 |
GRS20#,GWS204 *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68124-30510 |
GRS20#,GWS204 *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-30480 |
GRS200,201,204,GWS204..ATH,HBD *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68124-30481 |
GRS20#,GWS204 *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68124-30510 |
GRS20#,GWS204 *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-30210 |
GRS20#,GWS204 |
1 | ||
| 68142-30211 |
GRS20#,GWS204 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-30091 |
GRS20#,GWS204 |
1 | ||
| 68152-30090 |
GRS20#,GWS204 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-30160 |
GRS20#,GWS204 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-30140 |
GRS20#,GWS204 |
1 | ||
| 68621C - COVER, REAR DOOR CHECK, RH | ||||
| 68621-53010 |
GRS20#,GWS204 |
1 | ||
| 68622A - COVER, REAR DOOR CHECK, LH | ||||
| 68622-53010 |
GRS20#,GWS204 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-30210 |
GRS20#,GWS204 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-30110 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06817 | ||||
| 90151-50026 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 90189-06227 | ||||
| 90467-05162C0 | ||||
| 90950-01841 | ||||
| 93560-54025 | ||||
