GRS204-AETXH (2008)
Toyota Crown
ILLUST NO. 2 OF 2(0802- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-30G00C1 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK. BROWN,TRIM4# |
1 | ||
| 67610-30F90C2 |
GRS200,201,204..ATH GRAY,TRIM1# |
1 | ||
| 67610-30F90C3 |
GRS200,201,204..ATH DK. BROWN,TRIM4# |
1 | ||
| 67610-30G00C1 |
GRS204 ｼｰﾄ表皮−本革,DK. BROWN,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
GRS20#,GWS204 |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-30F90C1 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK. BROWN,TRIM4# |
1 | ||
| 67620-30F80C3 |
GRS200,201,204..ATH DK. BROWN,TRIM4# |
1 | ||
| 67620-30F90C1 |
GRS204 ｼｰﾄ表皮−本革,DK. BROWN,TRIM4# |
1 | ||
| 67620-30F80C2 |
GRS200,201,204..ATH GRAY,TRIM1# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30170 |
GRS20#,GWS204 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30140 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8401 | ||||

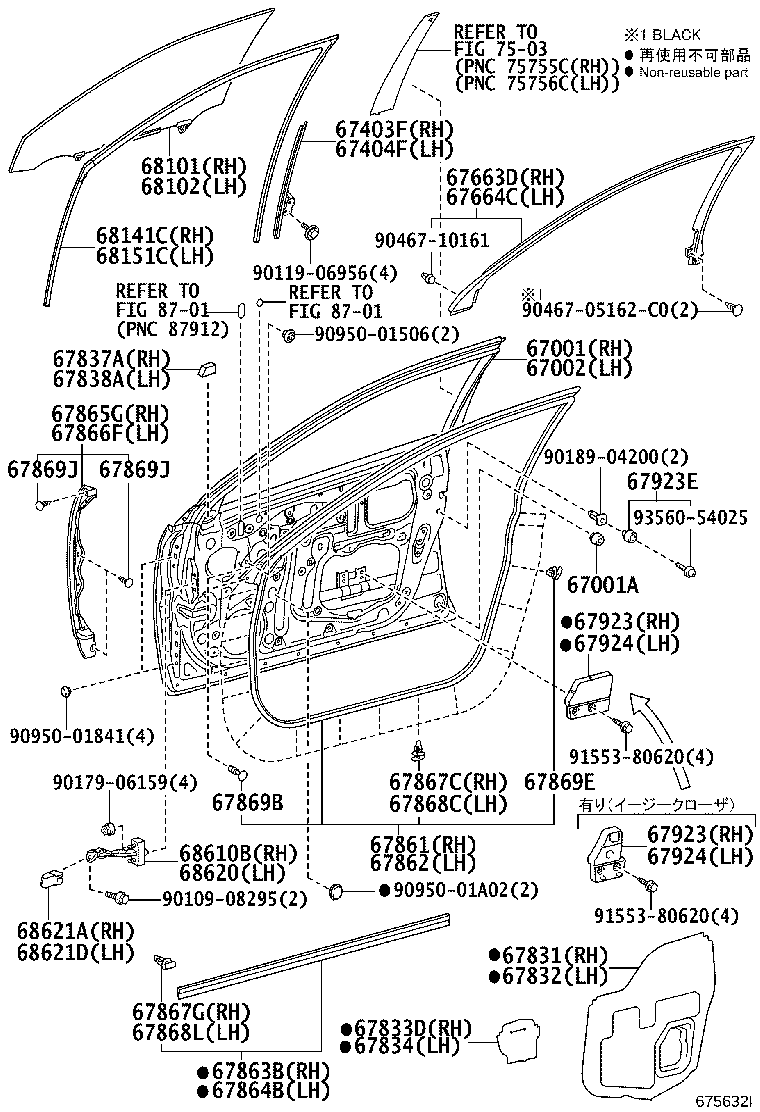

ILLUST NO. 1 OF 2(0802- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30890 |
GRS20#,GWS204 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
GRS20#,GWS204 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30A50 |
GRS20#,GWS204 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30190 |
GRS20#,GWS204 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30190 |
GRS20#,GWS204 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-30070 |
GRS20#,GWS204 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-30070 |
GRS20#,GWS204 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30430 |
GRS20#,GWS204 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30280 |
GRS20#,GWS204 |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-30090 |
GRS20#,GWS204 |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67834-30030 |
GRS20#,GWS204 |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-51010 |
GRS20#,GWS204 |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67837-51010 |
GRS20#,GWS204 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30300 |
GRS20#,GWS204 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30300 |
GRS20#,GWS204 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-30150 |
GRS20#,GWS204 |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-30130 |
GRS20#,GWS204 |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-30050 |
GRS20#,GWS204 |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-30050 |
GRS20#,GWS204 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GRS20#,GWS204 |
15 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52010 |
GRS20#,GWS204 |
8 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GRS20#,GWS204 |
15 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
GRS20#,GWS204 |
8 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-22010 |
GRS20#,GWS204 |
4 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-04034 |
GRS20#,GWS204 |
2 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-06195 |
GRS20#,GWS204 |
6 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-06195 |
GRS20#,GWS204 |
6 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-30160 |
GRS203;GRS202,204,GWS204..ATH,HBD,ROYG |
1 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-30160 |
GRS203;GRS202,204,GWS204..ATH,HBD,ROYG |
1 | ||
| 67923E - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-24030 |
GRS20#,GWS204 |
2 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-30090 |
GRS203;GRS202,204,GWS204..ATH,HBD,ROYG |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-30090 |
GRS203;GRS202,204,GWS204..ATH,HBD,ROYG |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-30791 |
GRS20#,GWS204 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-30790 |
GRS20#,GWS204 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-30790 |
GRS20#,GWS204 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-30791 |
GRS20#,GWS204 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-30360 |
GRS20#,GWS204 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-30200 |
GRS20#,GWS204 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-30190 |
GRS20#,GWS204 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-30110 |
GRS20#,GWS204 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-53010 |
GRS20#,GWS204 |
1 | ||
| 68621D - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-53010 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06956 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 90467-05162C0 | ||||
| 90467-10161 | ||||
| 90950-01506 | ||||
| 90950-01841 | ||||
| 90950-01A02 | ||||
| 91553-80620 | ||||
| 93560-54025 | ||||
| Linked diagrams | ||||
| 7503 | ||||
| 8701 | ||||
