GRS204-AETXH (2008)
Toyota Crown

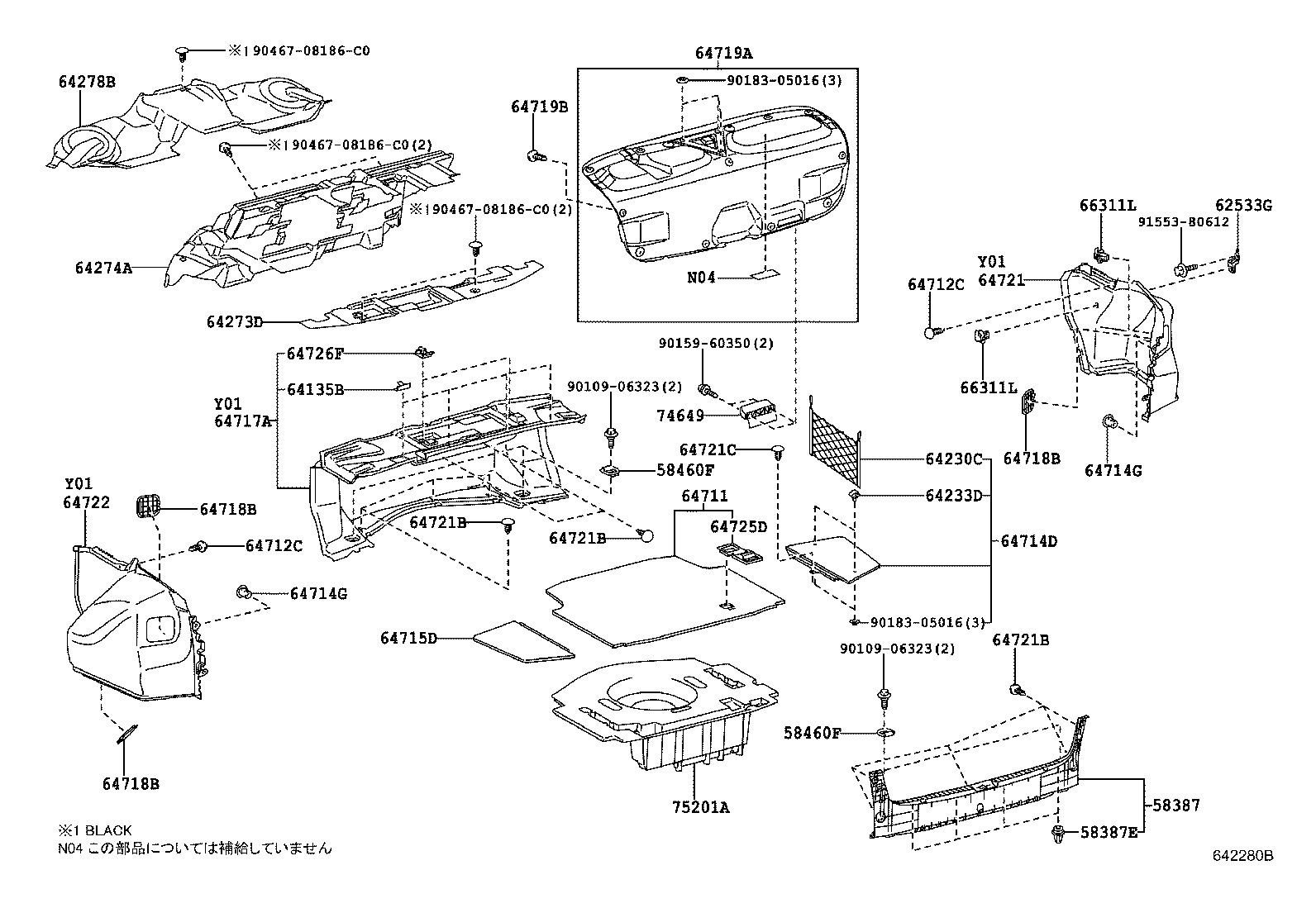

ILLUST NO. 1 OF 2(0802- )GRS20#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-30180C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-10161 |
GRS20#,GWS204 |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRS20#,GWS204 |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRS20#,GWS204 |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRS20#,GWS204 |
4 | ||
| 62533G - BRACKET, QUARTER TRIM, RH | ||||
| 62533-30040 |
GRS20#,GWS204 |
1 | ||
| 64135B - BRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH | ||||
| 64135-30040 |
GRS20#,GWS204 |
4 | ||
| 64230C - NET ASSY, ROOM PARTITION | ||||
| 64230-30050 |
GRS20#,GWS204 |
1 | ||
| 64233D - HOOK, ROOM PARTITION NET, REAR RH | ||||
| 64233-30010C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
2 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-30170 |
GRS20#,GWS204 |
1 | ||
| 64274A - PAD, ROOM PARTITION, NO.2 | ||||
| 64274-30080 |
GRS20#..ATH,ROY |
1 | ||
| 64274-30090 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 64274-30090 |
GRS204 ｼｰﾄ表皮−本革 |
1 | ||
| 64278B - PAD, ROOM PARTITION, NO.3 | ||||
| 64278-30010 |
GRS20#,GWS204 |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64701-30030C1 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08186C0 |
GRS20#,GWS204 BLACK |
2 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08186C0 |
GRS20#,GWS204 BLACK |
2 | ||
| 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64714-30490C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-12069 |
GRS20#,GWS204 |
2 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-12069 |
GRS20#,GWS204 |
2 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-30320C1 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-30180C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64075-30190C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK,TRIM4# |
1 | ||
| 64075-30190C0 |
GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK,TRIM1#,4# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
GRS20#,GWS204 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
GRS20#,GWS204 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
GRS20#,GWS204 |
3 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-30270C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
GRS20#,GWS204 BLACK |
13 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-30220C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK,TRIM4# |
1 | ||
| 64721-30220C0 |
GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK,TRIM1#,4# |
1 | ||
| 64721-30180C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-05145 |
GRS20#..ATH,ROY |
1 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-08186C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK |
10 | ||
| 90467-08186C0 |
GRS202,203..ROY;GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK |
2 | ||
| 90467-08186C0 |
GRS20#,GWS204..ATH,HBD,ROY BLACK |
8 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-08186C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK |
10 | ||
| 90467-08186C0 |
GRS202,203..ROY;GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK |
2 | ||
| 90467-08186C0 |
GRS20#,GWS204..ATH,HBD,ROY BLACK |
8 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
GRS20#,GWS204 BLACK |
1 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-30150C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK,TRIM4# |
1 | ||
| 64722-30140C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64722-30150C0 |
GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK,TRIM1#,4# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-50071 |
GRS20#,GWS204 |
1 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64726-30060C0 |
GRS20#,GWS204 BLACK |
2 | ||
| 66311L - HOOK,ROPE | ||||
| 66311-30010C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
2 | ||
| 66311L - HOOK,ROPE | ||||
| 66311-30010C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
2 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010 |
GRS20#,GWS204 |
1 | ||
| 74649-51010C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 75201A - BOX, TOOL | ||||
| 75201-30090C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90109-06323 | ||||
| 90159-60350 | ||||
| 90183-05016 | ||||
| 90467-08186C0 | ||||
| 91553-80612 | ||||

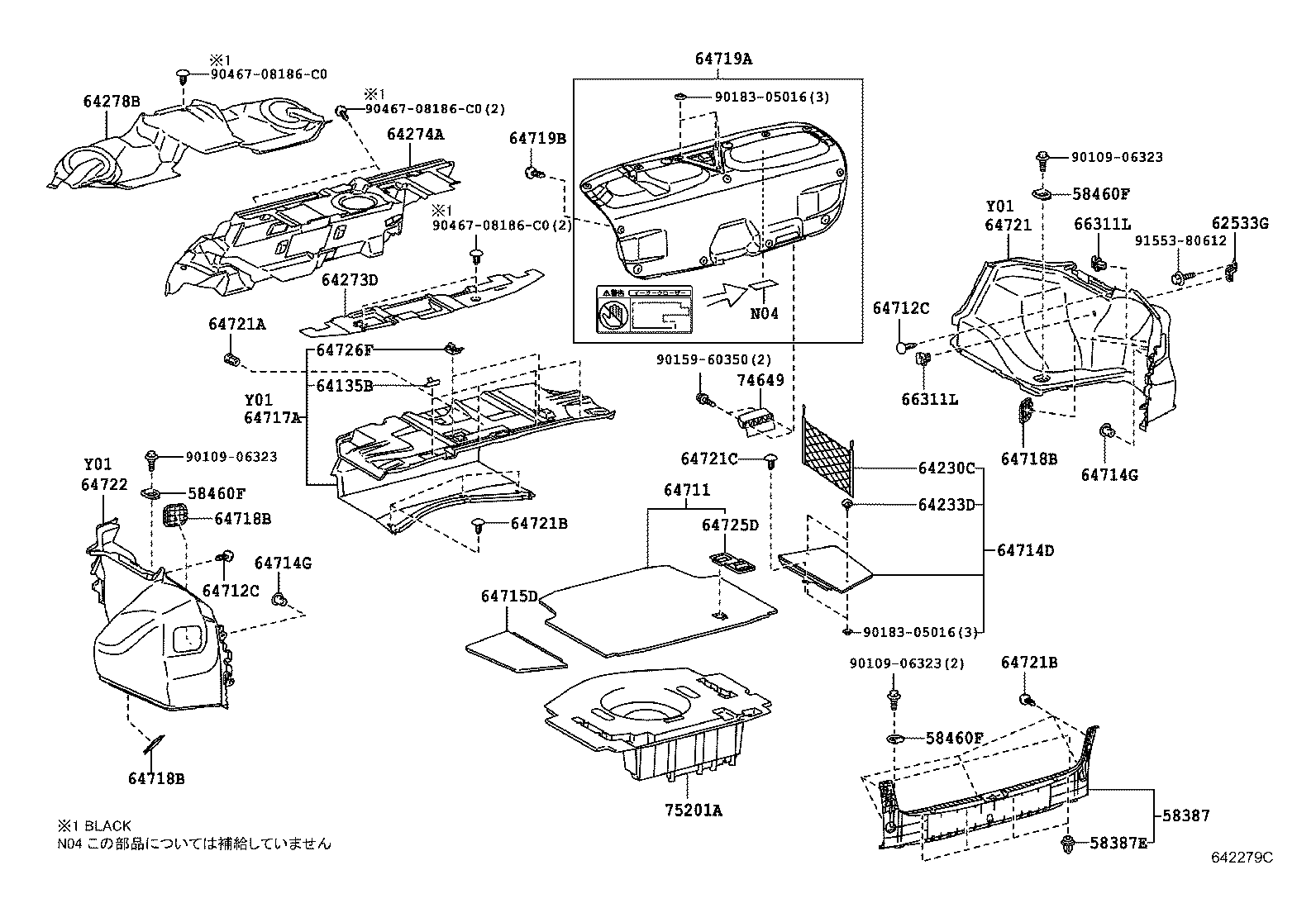

ILLUST NO. 1 OF 2(0802- )GRS20#
ｱﾘ(ｴｱ ﾋﾟｭﾘﾌｧｲｱ OR ﾘﾔ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-30180C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-10161 |
GRS20#,GWS204 |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRS20#,GWS204 |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRS20#,GWS204 |
4 | ||
| 62533G - BRACKET, QUARTER TRIM, RH | ||||
| 62533-30040 |
GRS20#,GWS204 |
1 | ||
| 64135B - BRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH | ||||
| 64135-30040 |
GRS20#,GWS204 |
4 | ||
| 64230C - NET ASSY, ROOM PARTITION | ||||
| 64230-30050 |
GRS20#,GWS204 |
1 | ||
| 64233D - HOOK, ROOM PARTITION NET, REAR RH | ||||
| 64233-30010C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
2 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-30170 |
GRS20#,GWS204 |
1 | ||
| 64274A - PAD, ROOM PARTITION, NO.2 | ||||
| 64274-30080 |
GRS20#..ATH,ROY |
1 | ||
| 64274-30090 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 64274-30090 |
GRS204 ｼｰﾄ表皮−本革 |
1 | ||
| 64278B - PAD, ROOM PARTITION, NO.3 | ||||
| 64278-30010 |
GRS20#,GWS204 |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64701-30030C1 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08186C0 |
GRS20#,GWS204 BLACK |
2 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08186C0 |
GRS20#,GWS204 BLACK |
2 | ||
| 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64714-30490C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-12069 |
GRS20#,GWS204 |
2 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-12069 |
GRS20#,GWS204 |
2 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-30320C1 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-30180C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64075-30190C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK,TRIM4# |
1 | ||
| 64075-30190C0 |
GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK,TRIM1#,4# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
GRS20#,GWS204 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
GRS20#,GWS204 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
GRS20#,GWS204 |
3 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-30270C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
GRS20#,GWS204 BLACK |
13 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-30220C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK,TRIM4# |
1 | ||
| 64721-30220C0 |
GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK,TRIM1#,4# |
1 | ||
| 64721-30180C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-08186C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK |
10 | ||
| 90467-08186C0 |
GRS202,203..ROY;GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK |
2 | ||
| 90467-08186C0 |
GRS20#,GWS204..ATH,HBD,ROY BLACK |
8 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-08186C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK |
10 | ||
| 90467-08186C0 |
GRS202,203..ROY;GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK |
2 | ||
| 90467-08186C0 |
GRS20#,GWS204..ATH,HBD,ROY BLACK |
8 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-08186C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK |
10 | ||
| 90467-08186C0 |
GRS202,203..ROY;GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK |
2 | ||
| 90467-08186C0 |
GRS20#,GWS204..ATH,HBD,ROY BLACK |
8 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
GRS20#,GWS204 BLACK |
1 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-30150C0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),BLACK,TRIM4# |
1 | ||
| 64722-30140C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 64722-30150C0 |
GRS200,201,204..ATH ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),BLACK,TRIM1#,4# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-50071 |
GRS20#,GWS204 |
1 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64726-30060C0 |
GRS20#,GWS204 BLACK |
2 | ||
| 66311L - HOOK,ROPE | ||||
| 66311-30010C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
2 | ||
| 66311L - HOOK,ROPE | ||||
| 66311-30010C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
2 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010 |
GRS20#,GWS204 |
1 | ||
| 74649-51010C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 75201A - BOX, TOOL | ||||
| 75201-30090C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90109-06323 | ||||
| 90159-60350 | ||||
| 90183-05016 | ||||
| 90467-08186C0 | ||||
| 91553-80612 | ||||

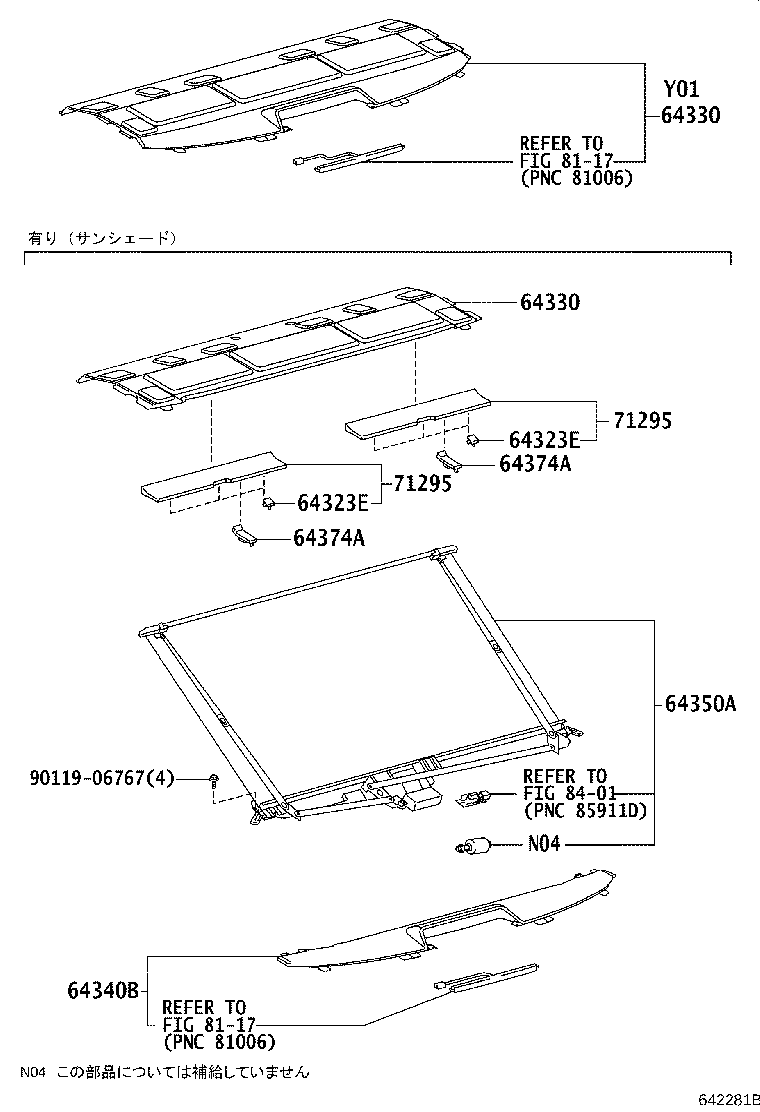

ILLUST NO. 2 OF 2(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64323E - CLAMP, PACKAGE TRAY TRIM | ||||
| 64323-30040 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
6 | ||
| 64323-30040 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
6 | ||
| 64323-30040 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
6 | ||
| 64323-30040 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
6 | ||
| 64323E - CLAMP, PACKAGE TRAY TRIM | ||||
| 64323-30040 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
6 | ||
| 64323-30040 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
6 | ||
| 64323-30040 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
6 | ||
| 64323-30040 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
6 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30D10E0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C90E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C60B0 |
GRS202,203,204..ATH,ROY GRAY,TRIM1# |
1 | ||
| 64330-30D10E0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C80E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),DK.BROWN,TRIM4# |
1 | ||
| 64330-30D10E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C80B0 |
GRS202,203,204..ATH,ROY ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),GRAY,TRIM1# |
1 | ||
| 64330-30C60E0 |
GRS204 DK.BROWN,TRIM4# |
1 | ||
| 64330-30C90E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330-30D10E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30D10E0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C90E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C60B0 |
GRS202,203,204..ATH,ROY GRAY,TRIM1# |
1 | ||
| 64330-30D10E0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C80E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),DK.BROWN,TRIM4# |
1 | ||
| 64330-30D10E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C80B0 |
GRS202,203,204..ATH,ROY ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),GRAY,TRIM1# |
1 | ||
| 64330-30C60E0 |
GRS204 DK.BROWN,TRIM4# |
1 | ||
| 64330-30C90E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330-30D10E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64340B - PANEL ASSY, PACKAGE TRAY TRIM, NO.2 | ||||
| 64340-30090E0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64340-30090E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64340-30090E0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64340-30090E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64350A - SHADE ASSY, REAR WINDOW | ||||
| 64350-30100 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||
| 64350-30100 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 64350-30100 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||
| 64350-30100 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 64374A - SUPPORT, PACKAGE TRAY TRIM | ||||
| 64374-30040 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
2 | ||
| 64374-30040 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
2 | ||
| 64374-30040 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
2 | ||
| 64374-30040 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
2 | ||
| 64374A - SUPPORT, PACKAGE TRAY TRIM | ||||
| 64374-30040 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
2 | ||
| 64374-30040 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
2 | ||
| 64374-30040 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
2 | ||
| 64374-30040 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
2 | ||
| 71295 - PLATE, REAR SEAT BACK, UPPER RH | ||||
| 71295-30110E0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
2 | ||
| 71295-30110E0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
2 | ||
| 71295-30110E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
2 | ||
| 71295-30110E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
2 | ||
| 71295 - PLATE, REAR SEAT BACK, UPPER RH | ||||
| 71295-30110E0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
2 | ||
| 71295-30110E0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
2 | ||
| 71295-30110E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
2 | ||
| 71295-30110E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
2 | ||
| Common parts | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8117 | ||||
| 8401 | ||||

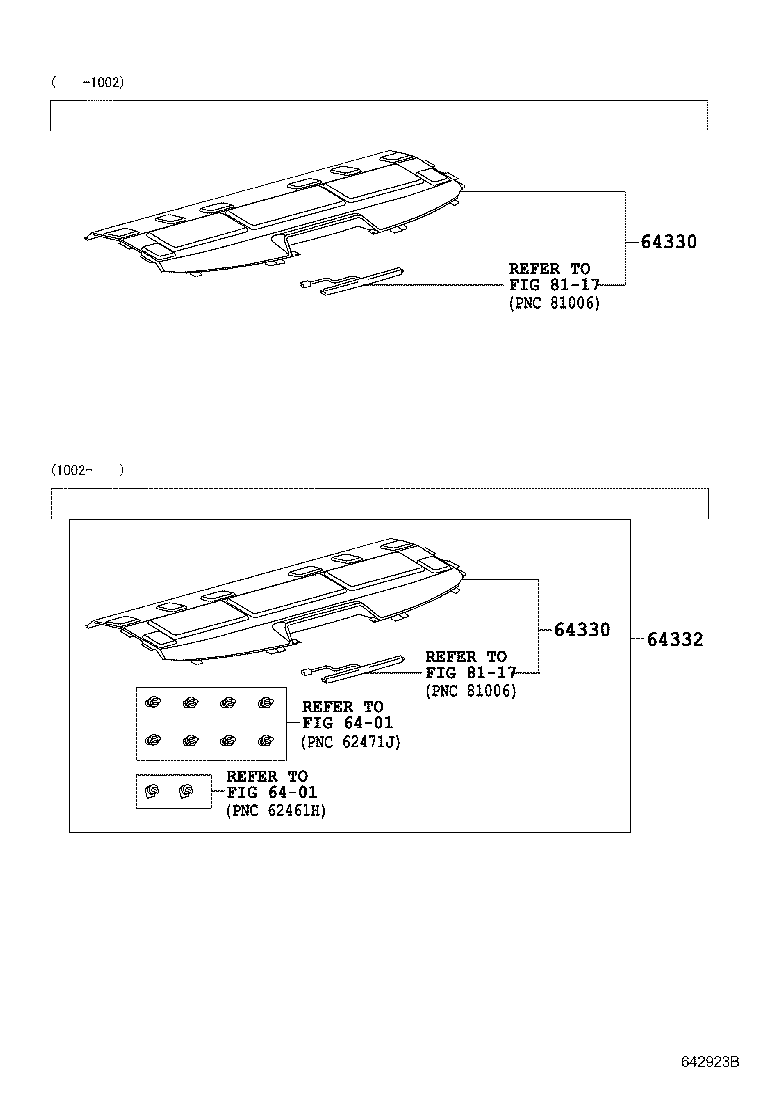

ILLUST NO. 2 OF 2(0802- )
ｴｱ ﾋﾟｭﾘﾌｧｲｱ-ｱﾘ(DOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30D10E0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C90E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C60B0 |
GRS202,203,204..ATH,ROY GRAY,TRIM1# |
1 | ||
| 64330-30D10E0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C80E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),DK.BROWN,TRIM4# |
1 | ||
| 64330-30D10E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C80B0 |
GRS202,203,204..ATH,ROY ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),GRAY,TRIM1# |
1 | ||
| 64330-30C60E0 |
GRS204 DK.BROWN,TRIM4# |
1 | ||
| 64330-30C90E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330-30D10E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30D10E0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C90E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C60B0 |
GRS202,203,204..ATH,ROY GRAY,TRIM1# |
1 | ||
| 64330-30D10E0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C80E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),DK.BROWN,TRIM4# |
1 | ||
| 64330-30D10E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革,DK.BROWN,TRIM4# |
1 | ||
| 64330-30C80B0 |
GRS202,203,204..ATH,ROY ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP),GRAY,TRIM1# |
1 | ||
| 64330-30C60E0 |
GRS204 DK.BROWN,TRIM4# |
1 | ||
| 64330-30C90E0 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| 64330-30D10E0 |
GRS204 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(DOP)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,DK.BROWN,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 6401 | ||||
| 8117 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
