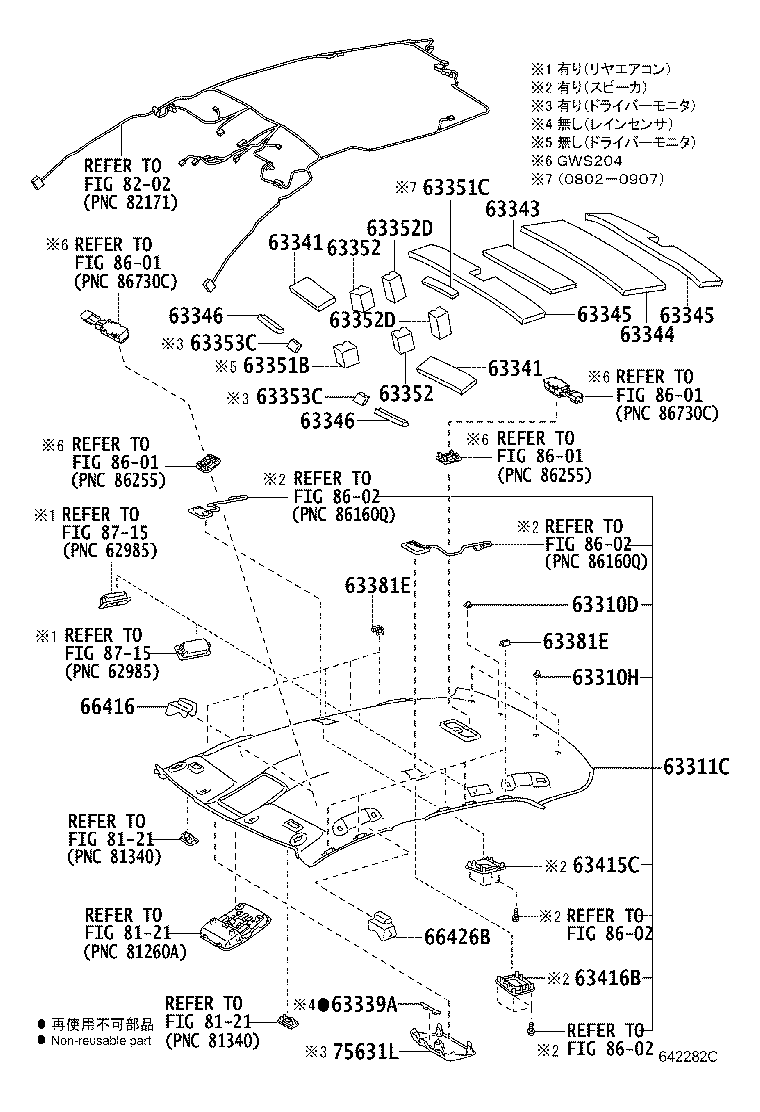

GRS204-AETXH (2008)
Toyota Crown
(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-10181 |
GRS20#,GWS204 |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-09126 |
GRS20#,GWS204 |
3 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-30670B0 |
GRS200,201,204..ATH GRAY,TRIM1#,4# |
1 | ||
| 63311-30690B1 |
GRS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63311-30700B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),GRAY,TRIM4# |
1 | ||
| 63311-30690B1 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63311-30720B1 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63311-30720B1 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63311-30730B1 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
1 | ||
| 63311-30700B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
1 | ||
| 63311-30750B1 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63311-30730B1 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動),GRAY,TRIM1#,4# |
1 | ||
| 63311-30750B1 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-30430 |
GRS20#,GWS204 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-30430 |
GRS20#,GWS204 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-30380 |
GRS20#,GWS204 |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-30260 |
GRS20#,GWS204 |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63345-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 63345-30280 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63345-30280 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63345-30280 |
GRS20#,GWS204 |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63345-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 63345-30280 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63345-30280 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63345-30280 |
GRS20#,GWS204 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
GRS20#,GWS204 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
GRS20#,GWS204 |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-30300 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63351-30290 |
GRS20#,GWS204 |
1 | ||
| 63351-30300 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63351-30300 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 63351-30300 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63354-30040 |
GRS20#,GWS204 |
1 | ||
| 63352 - PAD, ROOF HEADLINING, CENTER | ||||
| 63352-30280 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| 63352-30280 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63351-30290 |
GRS20#,GWS204 |
2 | ||
| 63352-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63352-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63352 - PAD, ROOF HEADLINING, CENTER | ||||
| 63352-30280 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| 63352-30280 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63351-30290 |
GRS20#,GWS204 |
2 | ||
| 63352-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63352-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-30270 |
GRS20#,GWS204 |
2 | ||
| 63353-30050 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30050 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30050 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| 63353-30050 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-30270 |
GRS20#,GWS204 |
2 | ||
| 63353-30050 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30050 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30050 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| 63353-30050 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63353C - PAD, ROOF HEADLINING, CENTER | ||||
| 63353-30040 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30040 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30040 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS) |
2 | ||
| 63353-30040 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63353C - PAD, ROOF HEADLINING, CENTER | ||||
| 63353-30040 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30040 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30040 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS) |
2 | ||
| 63353-30040 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30200 |
GRS20#,GWS204 |
10 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30200 |
GRS20#,GWS204 |
10 | ||
| 63415C - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63415-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63415-30110B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63415-30110B0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63415-30110B0 |
GRS204,GWS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63415-30110B0 |
GRS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63416B - GRILLE, ROOF SPEAKER, LH | ||||
| 63416-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63416-30110B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63416-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63416-30110B0 |
GRS204,GWS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63416-30110B0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63416-30110B0 |
GRS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-30020 |
GRS20#,GWS204 |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-30020 |
GRS20#,GWS204 |
1 | ||
| 75631L - GARNISH, ROOF TOP, FRONT | ||||
| 75631-30260B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),GRAY,TRIM4# |
1 | ||
| 75631-30260B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 75631-30260B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
1 | ||
| 75631-30260B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8601 | ||||
| 8602 | ||||
| 8715 | ||||

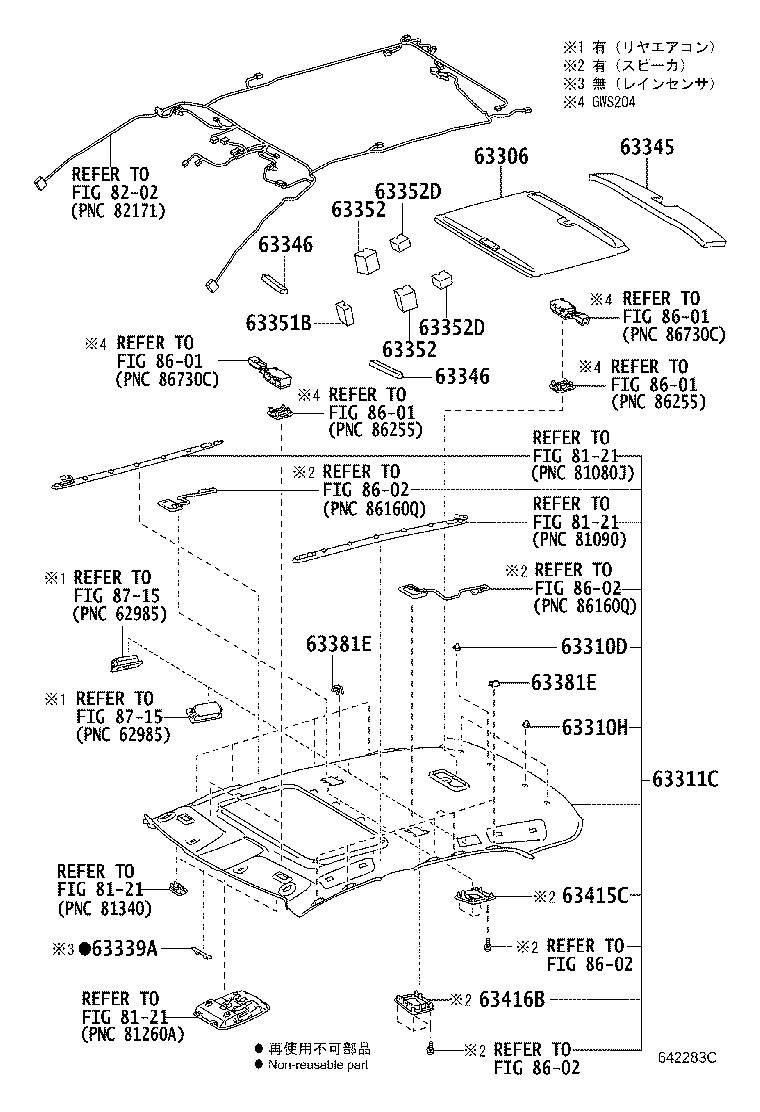

(0802- )
ｱﾘ(ﾑｰﾝ ﾙｰﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-33090B0 |
GRS200,201,204,GWS204..ATH,HBD ﾑｰﾝﾙｰﾌ−有り(電動),GRAY,TRIM1#,4# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-10181 |
GRS20#,GWS204 |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-09126 |
GRS20#,GWS204 |
3 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-30670B0 |
GRS200,201,204..ATH GRAY,TRIM1#,4# |
1 | ||
| 63311-30690B1 |
GRS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63311-30700B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),GRAY,TRIM4# |
1 | ||
| 63311-30690B1 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63311-30720B1 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63311-30720B1 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63311-30730B1 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
1 | ||
| 63311-30700B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付),GRAY,TRIM4# |
1 | ||
| 63311-30750B1 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63311-30730B1 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動),GRAY,TRIM1#,4# |
1 | ||
| 63311-30750B1 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63345-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 63345-30280 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63345-30280 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63345-30280 |
GRS20#,GWS204 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
GRS20#,GWS204 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
GRS20#,GWS204 |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-30300 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63351-30290 |
GRS20#,GWS204 |
1 | ||
| 63351-30300 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63351-30300 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
1 | ||
| 63351-30300 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 63352 - PAD, ROOF HEADLINING, CENTER | ||||
| 63352-30280 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| 63352-30280 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63351-30290 |
GRS20#,GWS204 |
2 | ||
| 63352-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63352-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63352 - PAD, ROOF HEADLINING, CENTER | ||||
| 63352-30280 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| 63352-30280 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63351-30290 |
GRS20#,GWS204 |
2 | ||
| 63352-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63352-30280 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-30270 |
GRS20#,GWS204 |
2 | ||
| 63353-30050 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30050 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30050 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| 63353-30050 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-30270 |
GRS20#,GWS204 |
2 | ||
| 63353-30050 |
GRS202,204,GWS204..ATH,HBD,ROYG ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30050 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 63353-30050 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| 63353-30050 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付) |
2 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30200 |
GRS20#,GWS204 |
10 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30200 |
GRS20#,GWS204 |
10 | ||
| 63415C - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63415-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63415-30110B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63415-30110B0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63415-30110B0 |
GRS204,GWS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63415-30110B0 |
GRS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63416B - GRILLE, ROOF SPEAKER, LH | ||||
| 63416-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63416-30110B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63416-30010B0 |
GRS204 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63416-30110B0 |
GRS204,GWS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM4# |
1 | ||
| 63416-30110B0 |
GRS204 ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| 63416-30110B0 |
GRS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,GRAY,TRIM1#,4# |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8601 | ||||
| 8602 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
