GRS204-AETXH (2008)
Toyota Crown
ILLUST NO. 1 OF 2(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30110 |
GRS20#,GWS204 |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
GRS20#,GWS204 |
1 | ||
| 61815J - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-30120 |
GRS20#,GWS204 |
3 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63142-30902 |
GRS202,203,204..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 63142-30902 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30720 |
GRS202,203,204..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 63111-30700 |
GRS20#..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63111-30690 |
GRS202,203,204..ATH,ROY |
1 | ||
| 63111-30710 |
GRS202,203,204..ATH,ROY |
1 | ||
| 63111-30710 |
GRS202,203,204..ATH,ROY GｰBOOK−有り |
1 | ||
| 63111-30720 |
GRS202,203,204..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30720 |
GRS202,203,204..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 63111-30700 |
GRS20#..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63111-30690 |
GRS202,203,204..ATH,ROY |
1 | ||
| 63111-30710 |
GRS202,203,204..ATH,ROY |
1 | ||
| 63111-30710 |
GRS202,203,204..ATH,ROY GｰBOOK−有り |
1 | ||
| 63111-30720 |
GRS202,203,204..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-30130 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63118-30130 |
GRS202,203,204..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-30130 |
GRS202,203,204..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 63118-30130 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-30310 |
GRS20#,GWS204 |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-30310 |
GRS20#,GWS204 |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-30290 |
GRS20#,GWS204 |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-30290 |
GRS20#,GWS204 |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-30250 |
GRS20#,GWS204 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63143-30270 |
GRS20#,GWS204 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63141-30220 |
GRS20#,GWS204 |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63148-30140 |
GRS202,203,204..ATH,ROY ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 63148-30140 |
GRS202,203,204,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63144-30200 |
GRS20#,GWS204 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63128-30060 |
GRS20#,GWS204 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63128-30060 |
GRS20#,GWS204 |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63146-30120 |
GRS20#,GWS204 |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63147-30050 |
GRS20#,GWS204 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30880 |
GRS20#,GWS204 |
1 | ||
| 64147D - PLATE, BACK PANEL CORNER, UPPER | ||||
| 64147-30020 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 64147-30020 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||
| 64206F - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-30090 |
GRS204 ｼｰﾄ表皮−本革 |
1 | ||
| 64206-30080 |
GRS20#..ATH,ROY |
1 | ||
| 64206-30090 |
GRS204 ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-30140 |
GRS20#,GWS204 |
1 | ||
| 64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-30120 |
GRS20#,GWS204 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-30914 |
GRS202,203,204,GWS204 *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 64801-30913 |
GRS204,GWS204 *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応j |
1 | ||
| 64801-30913 |
GRS204,GWS204 *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(純塔Zｸﾞ対応) |
1 | ||
| 64801-30917 |
GRS202,203,204,GWS204 *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 64801-30913 |
GRS202,203,204,GWS204 *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 64801-30917 |
GRS202,203,204,GWS204 *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-30220 |
GRS20#,GWS204 |
1 | ||
| 75573F - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-30381 |
GRS20#,GWS204 |
1 | ||
| 75573-30380 |
GRS20#,GWS204 |
1 | ||
| 75575E - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-30300 |
GRS204,GWS204 寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 75575-30300 |
GRS20#,GWS204 寒冷地仕様 |
1 | ||
| 75575-30300 |
GRS20#,GWS204 寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90119-06939 | ||||
| 90179-06274 | ||||
| 90467-08186C0 | ||||

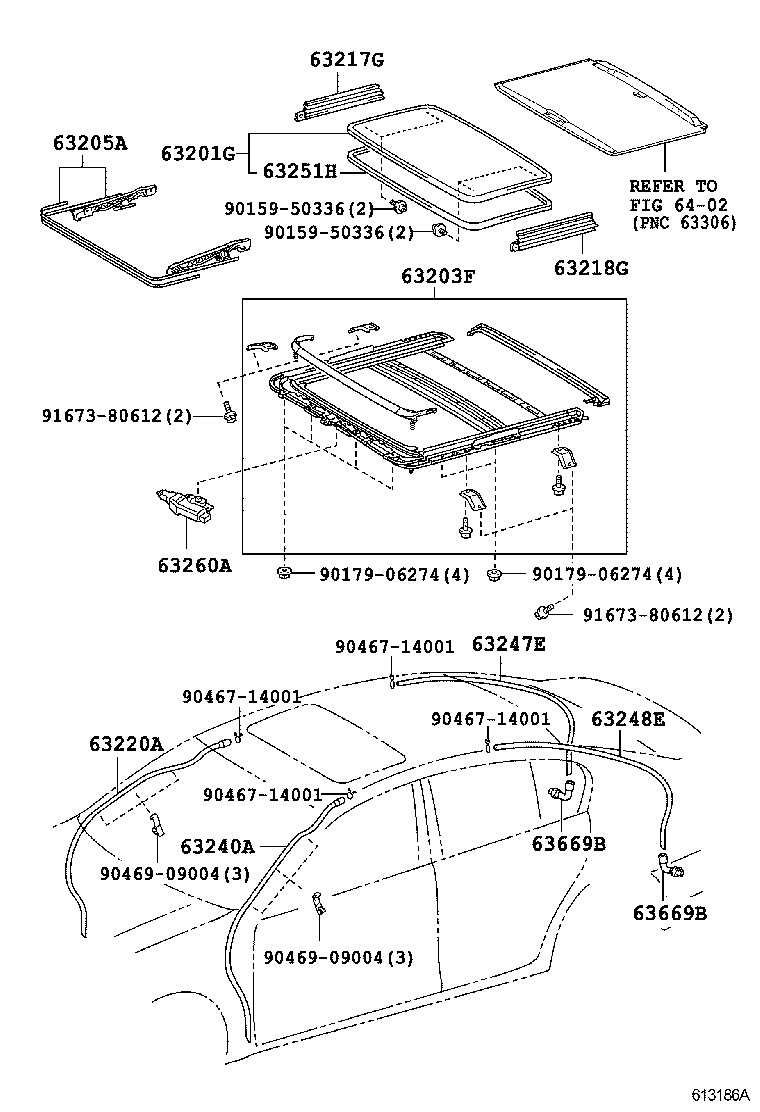

ILLUST NO. 2 OF 2(0802- )
ｱﾘ(ﾑｰﾝﾙｰﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-30150 |
GRS20#,GWS204 *SERT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-30160 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-48010 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-48030 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-48030 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63220A - HOSE ASSY, SLIDING ROOF DRAIN, RH | ||||
| 63220-30100 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63240A - HOSE ASSY, SLIDING ROOF DRAIN, LH | ||||
| 63220-30100 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-30070 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-30050 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-30100 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-30160 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
GRS20#,GWS204 ﾑｰﾝﾙｰﾌ−有り(電動) |
2 | ||
| Common parts | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90467-14001 | ||||
| 90469-09004 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 6402 | ||||
