GRS204-AETXH (2008)
Toyota Crown
(0802- )

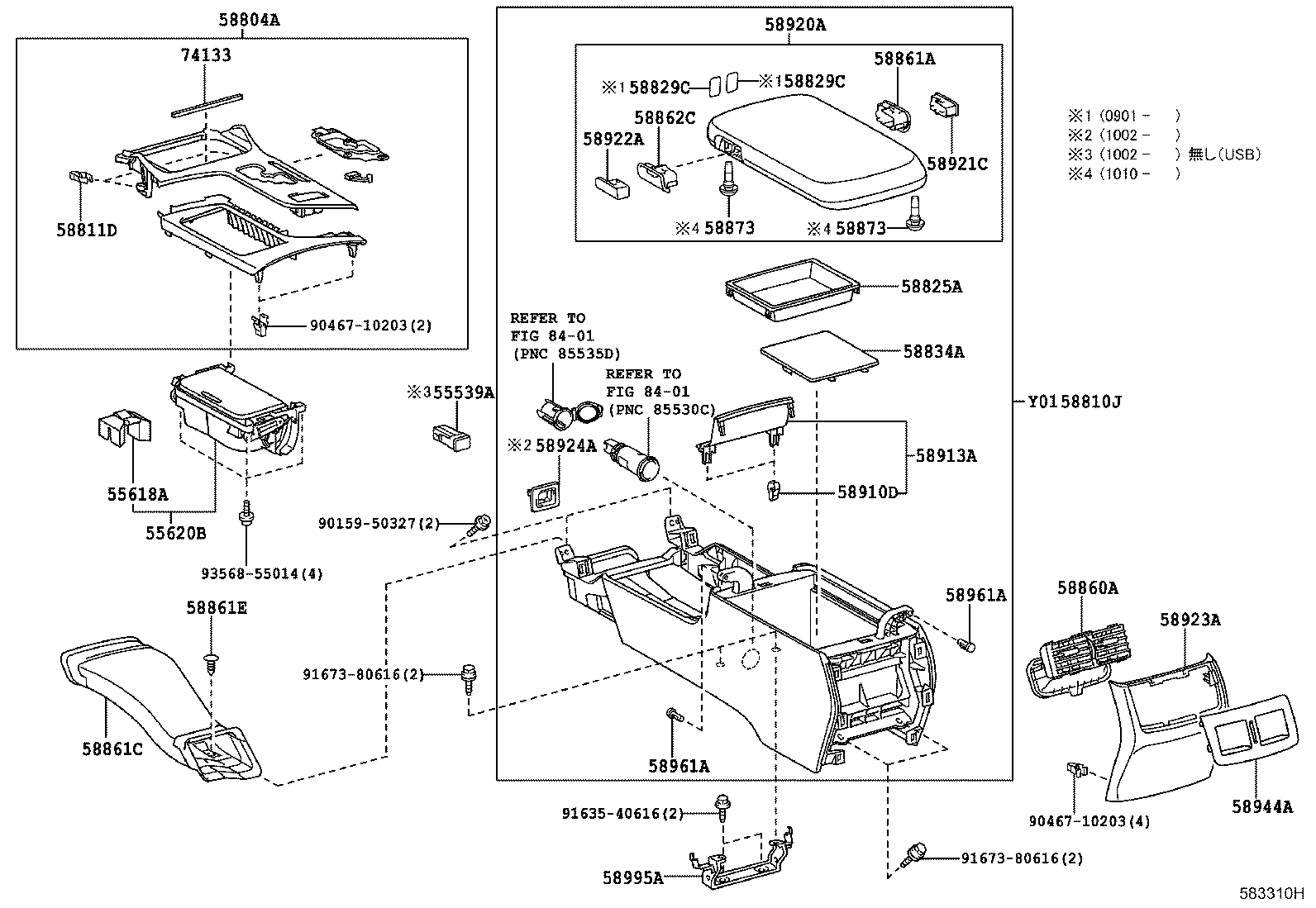

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-30040 |
GRS20#,GWS204 |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-30180C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 55620-30230C0 |
GRS200,201,204..ATH “Anniversary Edition” *(A),BLACK,TRIM1#,4# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-30620C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 58804-30730C0 |
GRS200,201,204..ATH “Anniversary Edition” *(A),BLACK,TRIM1#,4# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-30B50B1 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 58810-30B50E1 |
GRS200,201,204,GWS204..ATH,HBD DK.BROWN,TRIM4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-13082A0 |
GRS20#,GWS204 MELLOW WHITE |
2 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-30150 |
GRS20#,GWS204 |
1 | ||
| 58829C - STOPPER, CONSOLE BOX POCKET | ||||
| 58829-30060B0 |
GRS20#,GWS204 GRAY,TRIM1# |
2 | ||
| 58829-30060E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
2 | ||
| 58829C - STOPPER, CONSOLE BOX POCKET | ||||
| 58829-30060B0 |
GRS20#,GWS204 GRAY,TRIM1# |
2 | ||
| 58829-30060E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
2 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-30090 |
GRS20#,GWS204 |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-30050 |
GRS20#,GWS204 |
1 | ||
| 58861A - SUPPORT, CONSOLE BOX, NO.1 | ||||
| 58865-30120B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 58865-30120E0 |
GRS200,201,204,GWS204..ATH,HBD DK.BROWN,TRIM4# |
1 | ||
| 58861C - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-30110 |
GRS20#,GWS204 |
1 | ||
| 58861E - CLIP, CONSOLE BOX DUCT | ||||
| 90467-08186C0 |
GRS20#,GWS204 BLACK |
1 | ||
| 58862C - SUPPORT, CONSOLE BOX, NO.2 | ||||
| 58866-30060B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 58866-30060E0 |
GRS200,201,204,GWS204..ATH,HBD DK.BROWN,TRIM4# |
1 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-13082A0 |
GRS20#,GWS204 MELLOW WHITE |
2 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-30060E0 |
GRS200,201,204,GWS204..ATH,HBD DK.BROWN,TRIM4# |
1 | ||
| 58913-30060B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-30220E1 |
GRS200,201,204,GWS204..ATH,HBD DK.BROWN,TRIM4# |
1 | ||
| 58920-30221B1 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 58920-30220B1 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 58920-30221E1 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 58921C - PLATE, BOX, UPPER NO.1 | ||||
| 58921-30060 |
GRS20#,GWS204 |
1 | ||
| 58922A - PLATE, BOX, UPPER NO.2 | ||||
| 58922-30040 |
GRS20#,GWS204 |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-30160B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 58923-30160E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 58944A - COVER, CONSOLE, REAR | ||||
| 58944-30060 |
GRS20#,GWS204 |
1 | ||
| 58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE | ||||
| 58961-30110 |
GRS20#,GWS204 |
2 | ||
| 58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE | ||||
| 58961-30110 |
GRS20#,GWS204 |
2 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-30200 |
GRS20#,GWS204 |
1 | ||
| 74133 - SEAL, FRONT ASH RECEPTACLE | ||||
| 74133-30140 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10203 | ||||
| 91635-40616 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
