GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )GRS200,202,204,GWS204

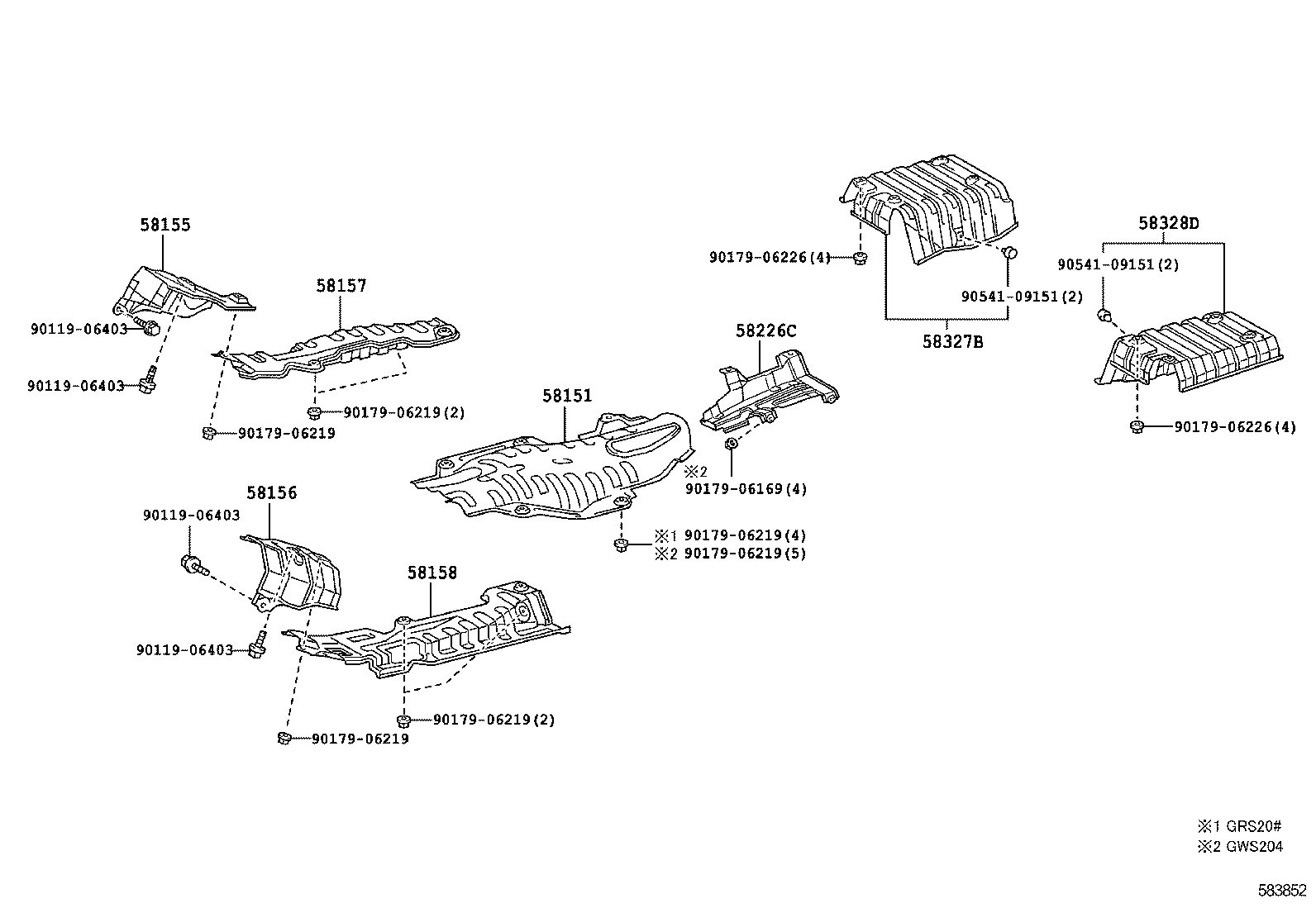

Click highlighted areas on diagram

diagram 58151 58155 58156 58157 58158 58226C 58327B 58328D 9011906403 9011906403 9011906403 9011906403 9017906169 9017906219 9017906219 9017906219 9017906219 9017906219 9017906219 9017906226 9017906226 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30160

GRS200,202,204

 1
58151-30190

GRS200,202,204

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-30040

GRS20#,GWS204

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-30080

GRS200,202,204

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58157-30071

GRS20#,GWS204

 1
58158 - INSULATOR, FRONT FLOOR HEAT, NO.6
58158-30061

GRS200,202,204,GWS204

 1
58226C - PLATE, AIR GUIDE, OUTSIDE RH
58226-30040

GRS20#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-30053

GRS20#,GWS204

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58328-30034

GRS20#,GWS204

 1
Common parts
90119-06403
90179-06169
90179-06219
90179-06226
90541-09151
