GRS204-AETXH (2008)
Toyota Crown

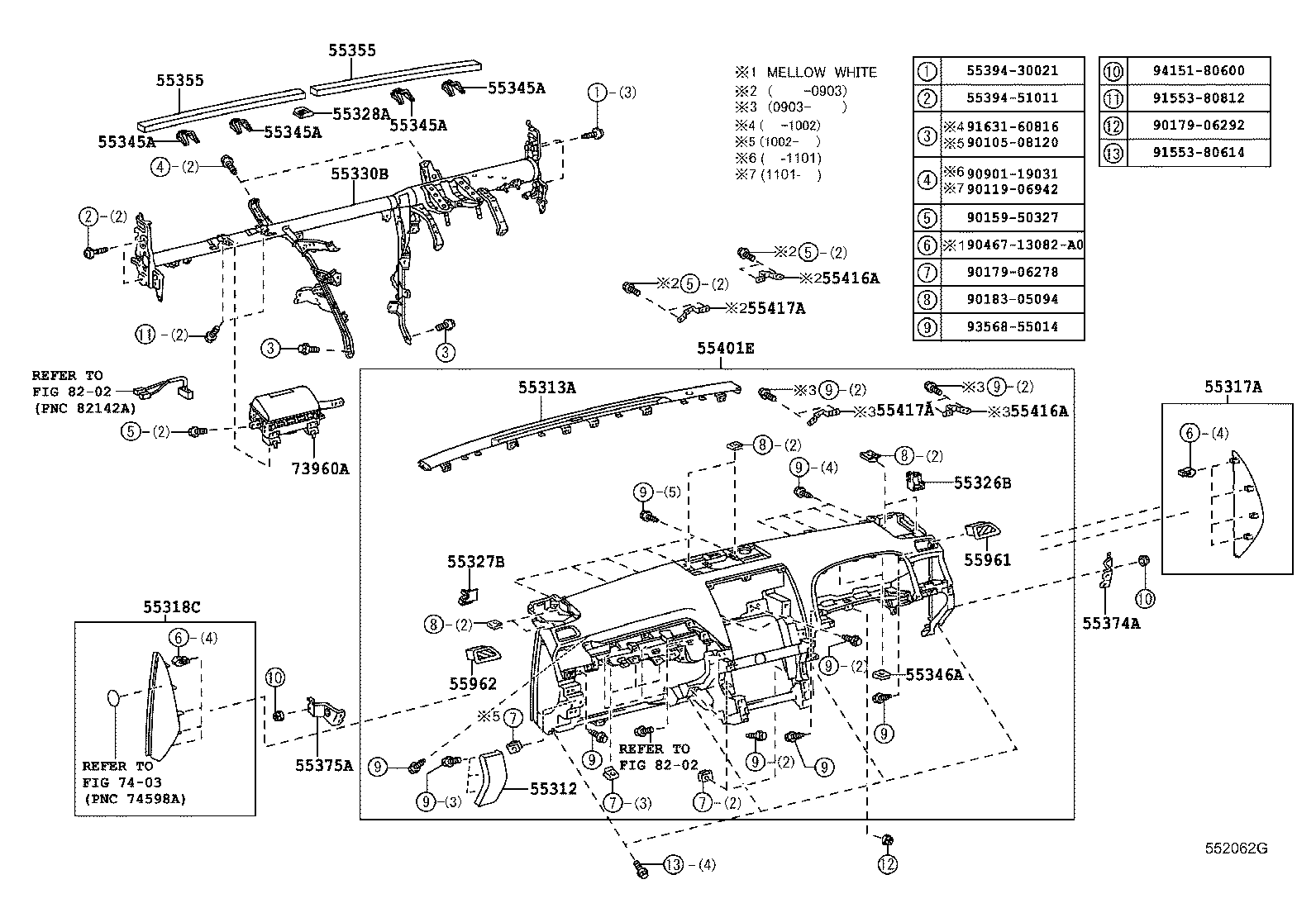

ILLUST NO. 1 OF 2(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-30120B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 55312-30120E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 55313A - PANEL, INSTRUMENT MAIN | ||||
| 55313-30080C0 |
GRS200,201,204,GWS204..ATH,HBD BLACK,TRIM1#,4# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-30080E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 55317-30080B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-30100E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 55318-30100B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 55326B - STAY, INSTRUMENT PANEL, RH | ||||
| 55326-30130 |
GRS20#,GWS204 |
1 | ||
| 55327B - STAY, INSTRUMENT PANEL, LH | ||||
| 55327-30120 |
GRS20#,GWS204 |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-22060 |
GRS20#,GWS204 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-30370 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30060 |
GRS20#,GWS204 |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30060 |
GRS20#,GWS204 |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30060 |
GRS20#,GWS204 |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30060 |
GRS20#,GWS204 |
4 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 55345-12060 |
GRS20#,GWS204 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30060 |
GRS20#,GWS204 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30060 |
GRS20#,GWS204 |
2 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-30270 |
GRS20#,GWS204 |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-30170 |
GRS20#,GWS204 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-30081C1 |
GRS200,201,204,GWS204..ATH,HBD BLACK,TRIM4# |
1 | ||
| 55400-30081C0 |
GRS20#,GWS204 BLACK,TRIM1# |
1 | ||
| 55400-30082C0 |
GRS20#,GWS204 BLACK/GRAY,TRIM1# |
1 | ||
| 55400-30082C1 |
GRS200,201,204,GWS204..ATH,HBD BLACK/DK.BRWN,TRIM4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30190 |
GRS20#,GWS204 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30190 |
GRS20#,GWS204 |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-30080 |
GRS20#,GWS204 |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-30080 |
GRS20#,GWS204 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-30150C0 |
GRS200,201,204,GWS204..ATH,HBD BLACK,TRIM1#,4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-30130C0 |
GRS200,201,204,GWS204..ATH,HBD BLACK,TRIM1#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-30090 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 55394-30021 | ||||
| 55394-51011 | ||||
| 90105-08120 | ||||
| 90119-06942 | ||||
| 90159-50327 | ||||
| 90179-06278 | ||||
| 90179-06292 | ||||
| 90183-05094 | ||||
| 90467-13082A0 | ||||
| 90901-19031 | ||||
| 91553-80614 | ||||
| 91553-80812 | ||||
| 91631-60816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||

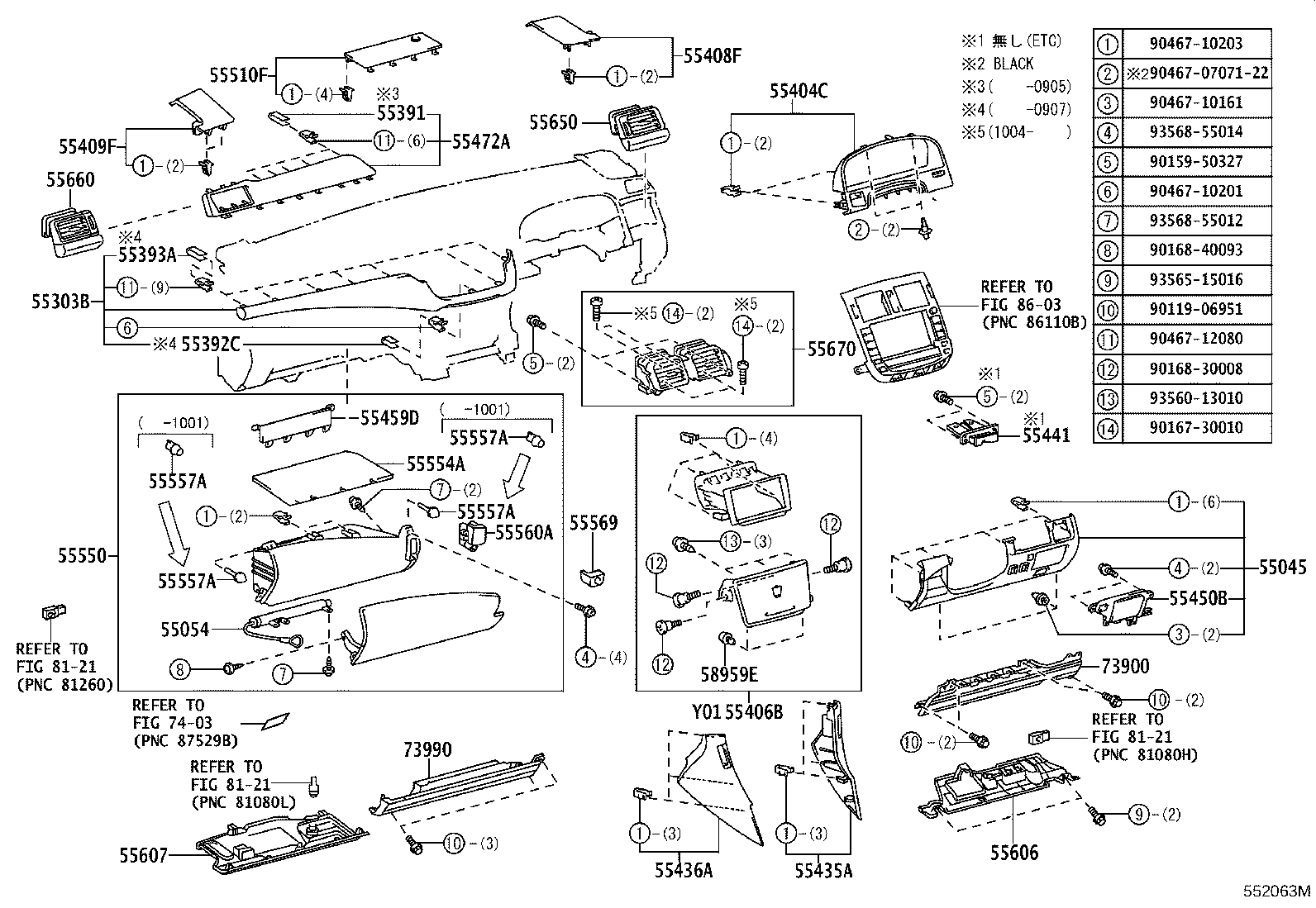

ILLUST NO. 2 OF 2(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-30190C1 |
GRS200,201,204,GWS204..ATH,HBD BLACK,TRIM4# |
1 | ||
| 55045-30190C0 |
GRS20#,GWS204 BLACK,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-30050 |
GRS20#,GWS204 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-30200C1 |
GRS200,201,204,GWS204..ATH,HBD BLACK,TRIM1#,4# |
1 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-30120 |
GRS20#,GWS204 |
6 | ||
| 55392C - CUSHION, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55392-30070 |
GRS20#,GWS204 |
1 | ||
| 55393A - CUSHION, INSTRUMENT PANEL, LOWER NO.3 | ||||
| 55391-30120 |
GRS20#,GWS204 |
9 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-30A30 |
GRS20#,GWS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 55404-30A10 |
GRS20#,GWS204 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-30160C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 55406-30210C0 |
GRS200,201,204..ATH “Anniversary Edition” *(A),BLACK,TRIM1#,4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-30170C0 |
GRS200,201,204,GWS204..ATH,HBD BLACK,TRIM1#,4# |
1 | ||
| 55408-30180C0 |
GRS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,BLACK,TRIM1#,4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-30240C0 |
GRS200,201,204,GWS204..ATH,HBD BLACK,TRIM1#,4# |
1 | ||
| 55409-30250C0 |
GRS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,BLACK,TRIM1#,4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30240C2 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 55435-30250C2 |
GRS200,201,204..ATH ｼｰﾄ表皮−本革,BLACK,TRIM4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-30160C2 |
GRS200,201,204..ATH ｼｰﾄ表皮−本革,BLACK,TRIM4# |
1 | ||
| 55436-30120C2 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-30050B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 55450-30050E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
GRS20#,GWS204 |
1 | ||
| 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 | ||||
| 55472-30220C0 |
GRS200,201,204..ATH “Anniversary Edition” *(A),BLACK,TRIM1#,4# |
1 | ||
| 55472-30170C0 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-30130C0 |
GRS204,GWS204 BLACK,TRIM1#,4# |
1 | ||
| 55510-30140C0 |
GRS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ,BLACK,TRIM1#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30450B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 55550-30450E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 55554A - FILLER, GLOVE COMPARTMENT DOOR PAD | ||||
| 55554-30120 |
GRS20#,GWS204 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
GRS20#,GWS204 |
2 | ||
| 90541-04002 |
GRS20#,GWS204 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
GRS20#,GWS204 |
2 | ||
| 90541-04002 |
GRS20#,GWS204 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
GRS20#,GWS204 |
2 | ||
| 90541-04002 |
GRS20#,GWS204 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
GRS20#,GWS204 |
2 | ||
| 90541-04002 |
GRS20#,GWS204 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-30070E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 55560-30070B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-30050B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 55569-30050E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-30240 |
GRS20#,GWS204 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30330 |
GRS20#,GWS204 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30350C1 |
GRS200,201,204..ATH BLACK,TRIM1#,4# |
1 | ||
| 55650-30390C0 |
GRS200,201,204..ATH “Anniversary Edition” *(A),BLACK,TRIM1#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30450 |
GRS20#,GWS204 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30500 |
GRS20#,GWS204 |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GRS20#,GWS204 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-30040B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 73900-30040E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-30040B0 |
GRS20#,GWS204 GRAY,TRIM1# |
1 | ||
| 73990-30040E0 |
GRS200,201,204,GWS204..ATH,HBD DK. BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90167-30010 | ||||
| 90168-30008 | ||||
| 90168-40093 | ||||
| 90467-0707122 | ||||
| 90467-10161 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93560-13010 | ||||
| 93565-15016 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
| 8603 | ||||
