GRS204-AETXH (2008)
Toyota Crown
(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-30180 |
GRS20#,GWS204 |
1 | ||
| 53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-30170 |
GRS20#,GWS204 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-30090 |
GRS20#,GWS204 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-30100 |
GRS20#,GWS204 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-30070 |
GRS20#,GWS204 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-30050 |
GRS20#,GWS204 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-30310 |
GRS20#,GWS204 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-30250 |
GRS20#,GWS204 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-30100 |
GRS20#,GWS204 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-30100 |
GRS20#,GWS204 |
1 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-30030 |
GRS20#,GWS204 |
2 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-30030 |
GRS20#,GWS204 |
2 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-30090 |
GRS20#,GWS204 |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-30070 |
GRS20#,GWS204 |
1 | ||
| 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 90467-07211 |
GRS20#,GWS204..CBU |
8 | ||
| 53259D - CLIP, RADIATOR SUPPORT TO FRAME SEAL, NO.2 | ||||
| 90467-07211 |
GRS20#,GWS204..CBU |
3 | ||
| 53259E - CLIP, RADIATOR SUPPORT TO FRAME SEAL, NO.3 | ||||
| 90467-07211 |
GRS20#..CBU |
2 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-30080 |
GRS20#,GWS204 |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-30060 |
GRS20#,GWS204 |
1 | ||
| 53281A - REINFORCEMENT, FRONT BODY MOUNTING, RH | ||||
| 53281-30050 |
GRS20#,GWS204 |
1 | ||
| 53282 - REINFORCEMENT, FRONT BODY MOUNTING, LH | ||||
| 53282-30030 |
GRS20#,GWS204 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-30061 |
GRS20#,GWS204 NO.1 |
1 | ||
| 53287-30090 |
GRS200,201,204,GWS204..ATH,HBD NO.2 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-30061 |
GRS20#,GWS204 NO.1 |
1 | ||
| 53287-30090 |
GRS200,201,204,GWS204..ATH,HBD NO.2 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-30080 |
GRS200,201,204,GWS204..ATH,HBD NO.2 |
1 | ||
| 53288-30051 |
GRS20#,GWS204 NO.1 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-30080 |
GRS200,201,204,GWS204..ATH,HBD NO.2 |
1 | ||
| 53288-30051 |
GRS20#,GWS204 NO.1 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-30050 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 53295E - SEAL, COOL AIR INTAKE DUCT | ||||
| 53295-30110 |
GRS20# |
1 | ||
| 53295-30080 |
GRS202,203,204 ﾌﾟﾘｸﾗｯｼï½ï½¼ï½½ï¾ƒï¾‘−有り |
1 | ||
| 53295-30080 |
GRS202,204..ATH,ROYG ﾌﾟﾘｸﾗｯｼï½ï½¼ï½½ï¾ƒï¾‘−有り(*DMO&*RPCS) |
1 | ||
| 53561A - GUIDE, HOOD AUXILIARY CATCH HOOK | ||||
| 53561-30010 |
GRS20#,GWS204 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-30A90 |
GRS200,202,204,GWS204 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-30830 |
GRS200,202,204,GWS204 |
1 | ||
| 53705C - BRACKET SUB-ASSY, FRONT SUSPENSION UPPER, NO.1 RH | ||||
| 53705-30080 |
GRS20#,GWS204 |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-30080 |
GRS20#,GWS204 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-3A030 |
GRS20#,GWS204 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-30640 |
GRS20#,GWS204 |
1 | ||
| 53717D - GUSSET, FENDER APRON, RH | ||||
| 53717-30110 |
GRS20#,GWS204 |
1 | ||
| 53718D - GUSSET, FENDER APRON, LH | ||||
| 53717-30110 |
GRS20#,GWS204 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-30090 |
GRS20#,GWS204 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-30040 |
GRS20#,GWS204 |
1 | ||
| 53795A - COVER, ENGINE ROOM, SIDE | ||||
| 53795-30121 |
GRS20#,GWS204 |
1 | ||
| 53795-30120 |
GRS20#,GWS204 |
1 | ||
| 53796A - COVER, ENGINE ROOM SIDE, LH | ||||
| 53796-30101 |
GRS20# |
1 | ||
| 53796-30100 |
GRS20# |
1 | ||
| 53837B - BRACKET, FRONT SIDE PANEL, NO.2 | ||||
| 53837-30020 |
GRS20#,GWS204 |
1 | ||
| 53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-30060 |
GRS20#,GWS204 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-30A90 |
GRS200,202,204,GWS204 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-30430 |
GRS20#,GWS204 |
1 | ||
| 55210-30431 |
GRS20#,GWS204 |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-30100 |
GRS20#,GWS204 |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-30200 |
GRS200,202,204,GWS204 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-30240 |
GRS20#,GWS204 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-30080 |
GRS20#,GWS204 |
1 | ||
| 57117E - RETAINER, FRONT BUMPER ARM, RH | ||||
| 57117-30050 |
GRS20#,GWS204 |
1 | ||
| 57118D - RETAINER, FRONT BUMPER ARM, LH | ||||
| 57118-30050 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 53384-50010 | ||||
| 90105-06137 | ||||
| 90109-06328 | ||||
| 90119-06451 | ||||
| 90119-08716 | ||||
| 90189-06193 | ||||
| 90467-07201 | ||||
| 90467-09226 | ||||
| 90467-09227 | ||||
| 90467-10183 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| 90904-67034 | ||||
| 91631-B0610 | ||||
| 91673-A0612 | ||||

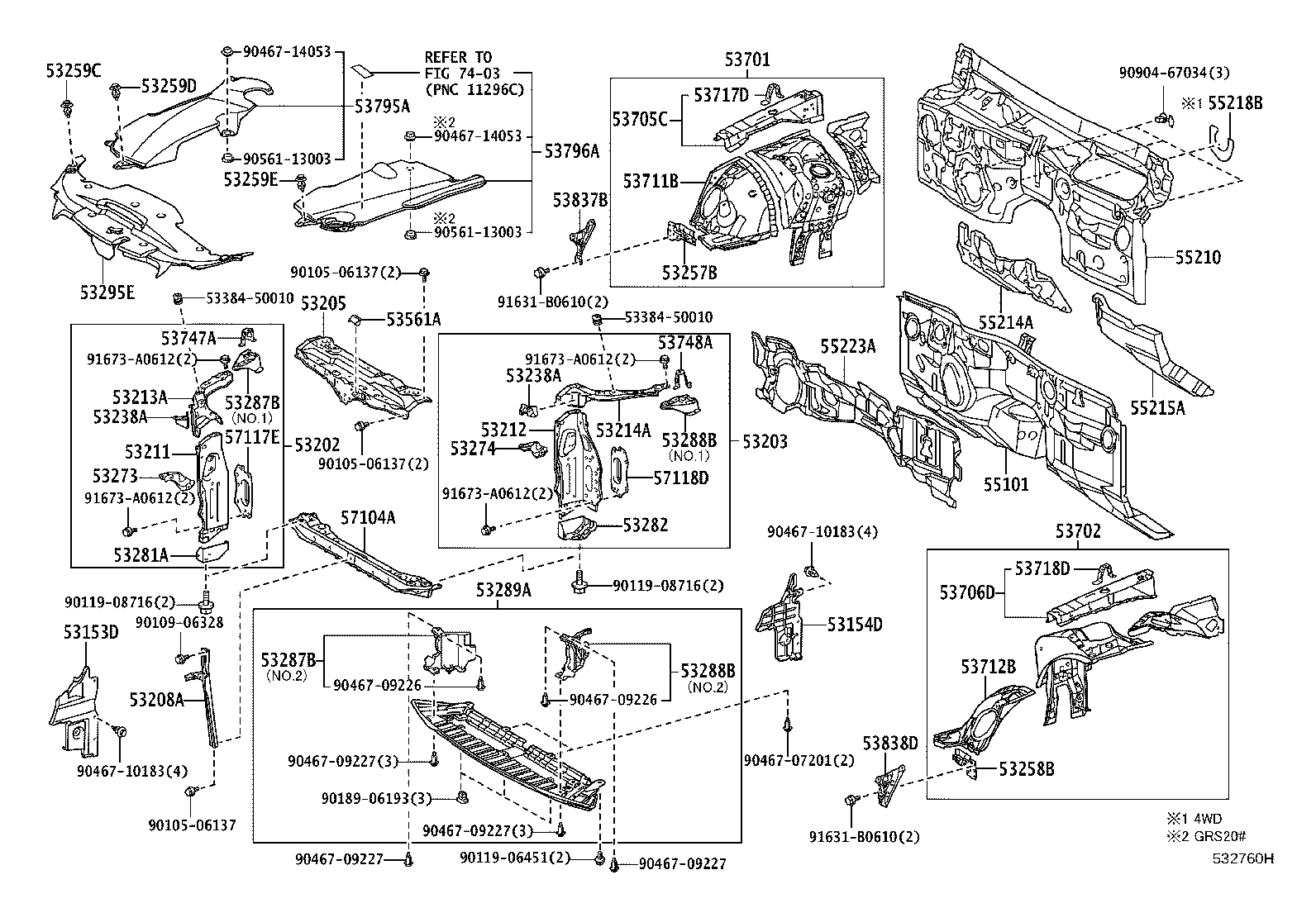

| Linked diagrams | ||||
| 7403 | ||||
