GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

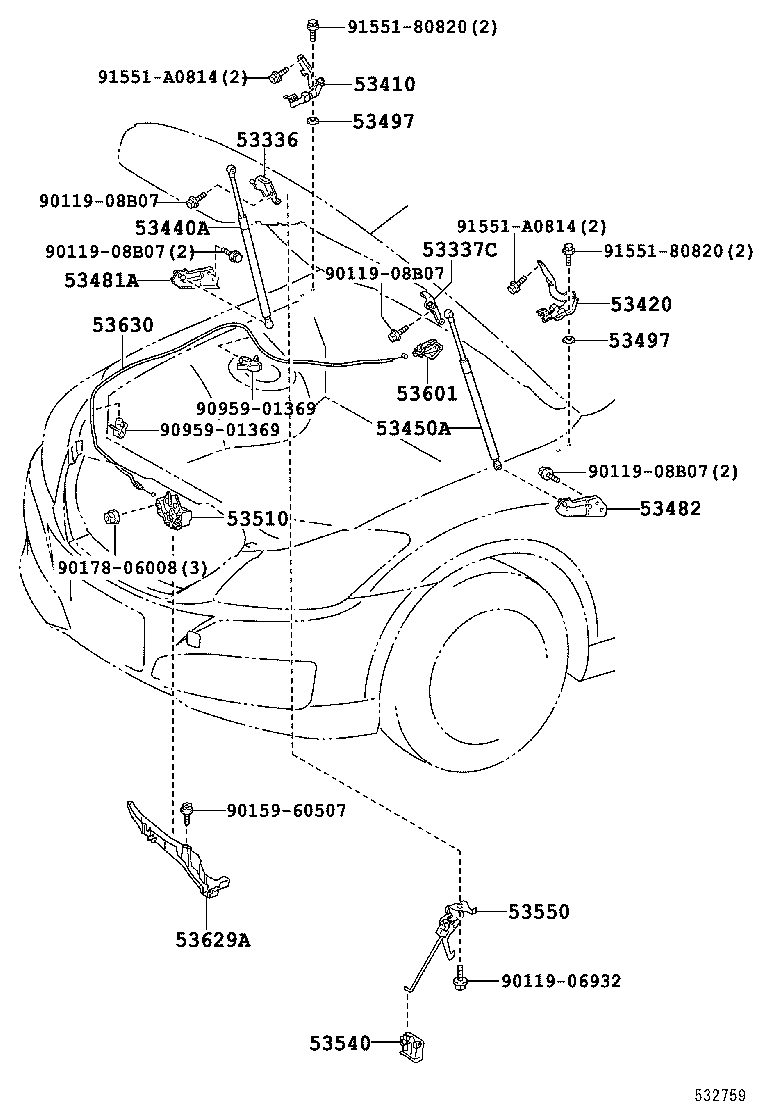

Click highlighted areas on diagram

diagram 53336 53337C 53410 53420 53440A 53450A 53481A 53482 53497 53497 53510 53540 53550 53601 53629A 53630 9011906932 9011908B07 9011908B07 9011908B07 9011908B07 9015960507 9017806008 9095901369 9095901369 9155180820 9155180820 91551A0814 91551A0814
Part # Description Qty Price
53336 - BRACKET, HOOD STAY, RH
53336-30050

GRS20#,GWS204

 1
53337C - BRACKET, HOOD STAY, LH
53337-30030

GRS20#,GWS204

 1
53410 - HINGE ASSY, HOOD, RH
53410-30280

GRS20#,GWS204

 1
53410-30350

GRS20#,GWS204

 1
53420 - HINGE ASSY, HOOD, LH
53420-30280

GRS20#,GWS204

 1
53420-30350

GRS20#,GWS204

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0W190

GRS20#,GWS204

 1
53450A - SUPPORT ASSY, HOOD, LH
53440-0W190

GRS20#,GWS204

 1
53481A - BRACKET, HOOD SUPPORT, RH
53481-30010

GRS20#,GWS204

 1
53482 - BRACKET, HOOD SUPPORT, LH
53482-30010

GRS20#,GWS204

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GRS20#,GWS204

厚さ=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GRS20#,GWS204

厚さ=1.0

 4
53510 - LOCK ASSY, HOOD
53510-30341

GRS20#,GWS204

 1
53510-30340

GRS20#,GWS204

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-30050

GRS200,201,204..ATH

 1
53540-30040

GRS200,201,204..ATH

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-30160

GRS200,201,204,GWS204..ATH,HBD

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010B9

GRS20#,GWS204

GRAY,TRIM1#

 1
53601-52010E5

GRS200,201,204,GWS204..ATH,HBD

DK. BROWN,TRIM4#

 1
53629A - COVER, HOOD LOCK CONTROL CABLE
53629-30030

GRS20#,GWS204

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-30320

GRS20#,GWS204

 1
53630-30321

GRS20#,GWS204

 1
Common parts
90119-06932
90119-08B07
90159-60507
90178-06008
90959-01369
91551-80820
91551-A0814
