GRS204-AETXH (2008)
Toyota Crown

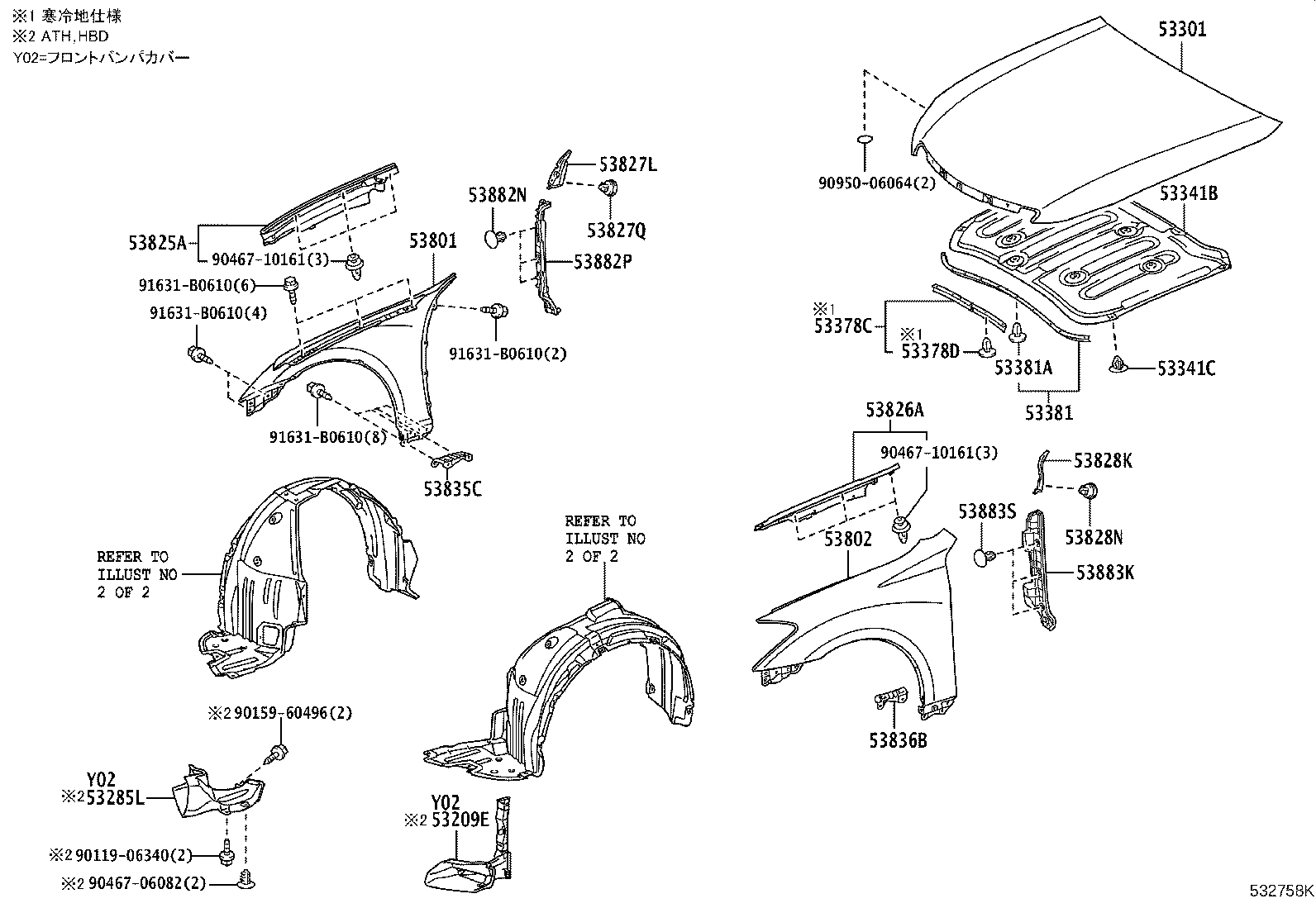

ILLUST NO. 1 OF 2(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53209E - DUCT SUB-ASSY, COOL AIR INTAKE, NO.3 | ||||
| 53209-30280 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 53285L - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 53285-30070 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30470 |
GRS20#,GWS204..CBU |
1 | ||
| 53301-30471 |
GRS20#,GWS204..CBU |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30290 |
GRS20#,GWS204 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
GRS20#,GWS204 |
10 | ||
| 53378C - SEAL, HOOD AIR INTAKE DUCT | ||||
| 53378-30120 |
GRS20#,GWS204 寒冷地仕様 |
1 | ||
| 53378D - CLIP(FOR HOOD AIR INTAKE DUCT SEAL) | ||||
| 90467-08011 |
GRS20#,GWS204 寒冷地仕様 |
5 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30240 |
GRS20#,GWS204 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GRS20#,GWS204 |
10 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-30A70 |
GRS20#,GWS204 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-30A50 |
GRS20#,GWS204 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53807-30130 |
GRS20#,GWS204..CBU |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53808-30100 |
GRS20#,GWS204..CBU |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-30060 |
GRS20#,GWS204..CBU |
1 | ||
| 53827Q - CLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1 | ||||
| 90467-06205C0 |
GRS20#,GWS204..CBU BLACK |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-30070 |
GRS20#,GWS204..CBU |
1 | ||
| 53828N - CLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1 | ||||
| 90467-06205C0 |
GRS20#,GWS204..CBU BLACK |
1 | ||
| 53835C - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-30120 |
GRS20#,GWS204 |
1 | ||
| 53836B - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-30070 |
GRS20#,GWS204 |
1 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-06205C0 |
GRS20#,GWS204..CBU BLACK |
3 | ||
| 53882P - SEAL, FRONT FENDER, RH | ||||
| 53882-30060 |
GRS20#,GWS204..CBU |
1 | ||
| 53883K - SEAL, FRONT FENDER, LH | ||||
| 53883-30030 |
GRS20#,GWS204..CBU |
1 | ||
| 53883S - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-06205C0 |
GRS20#,GWS204..CBU BLACK |
3 | ||
| Common parts | ||||
| 90119-06340 | ||||
| 90159-60496 | ||||
| 90467-06082 | ||||
| 90467-10161 | ||||
| 90950-06064 | ||||
| 91631-B0610 | ||||

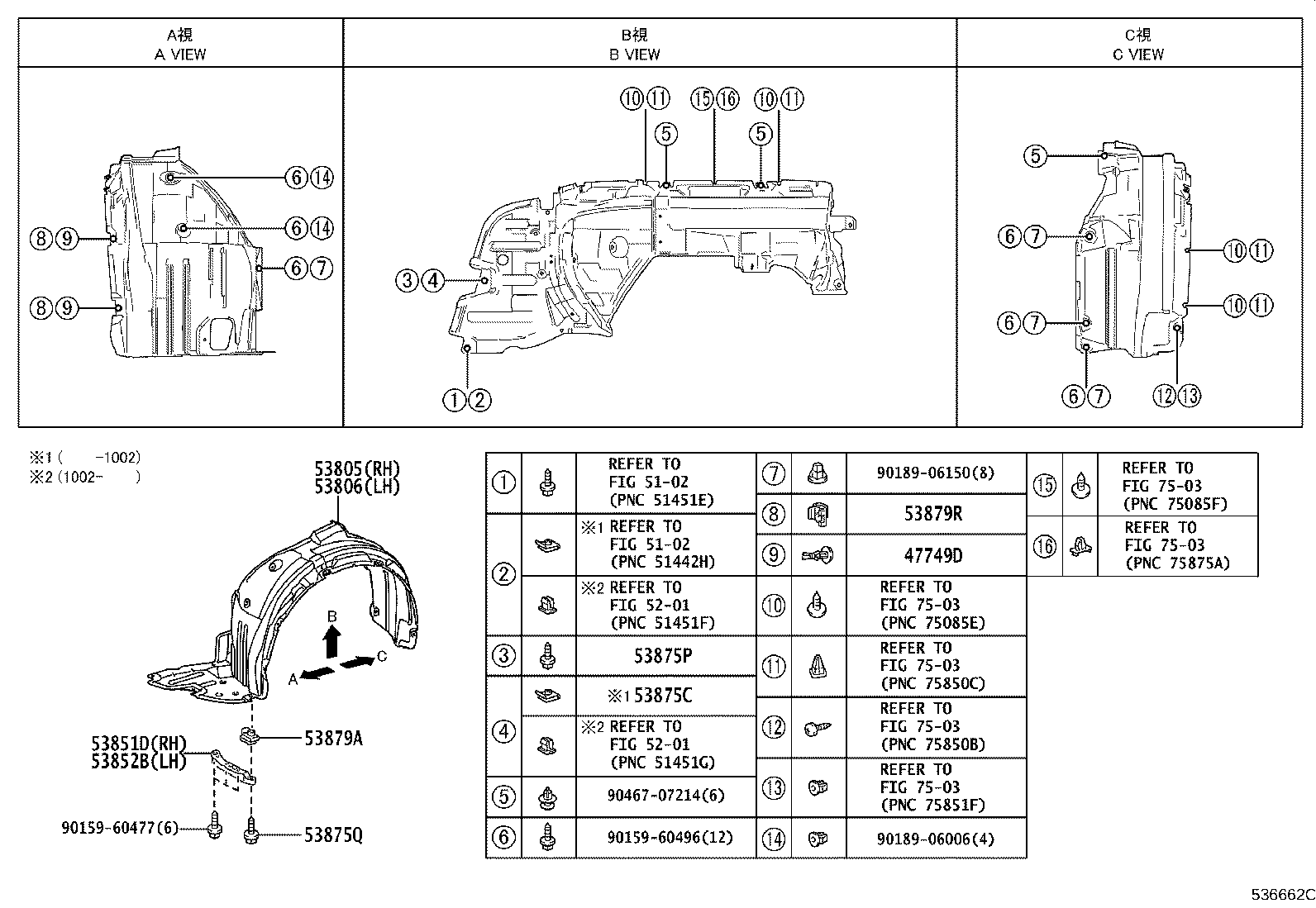

ILLUST NO. 2 OF 2(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-50090 |
GRS20#,GWS204..CBU |
4 | ||
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-30140 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-30140 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-30090 |
GRS20#,GWS204..CBU |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-30090 |
GRS20#,GWS204..CBU |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90179-05060 |
GRS20#,GWS204..CBU |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60477 |
GRS20#,GWS204..CBU |
2 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-60477 |
GRS20#,GWS204..CBU |
2 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
GRS20#,GWS204..CBU |
2 | ||
| 53879R - RETAINER, FRONT FENDER LINER | ||||
| 53879-30040 |
GRS20#,GWS204..CBU |
4 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90189-06006 | ||||
| 90189-06150 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
| 7503 | ||||
