GRS204-AETXH (2008)
Toyota Crown
(0802- )

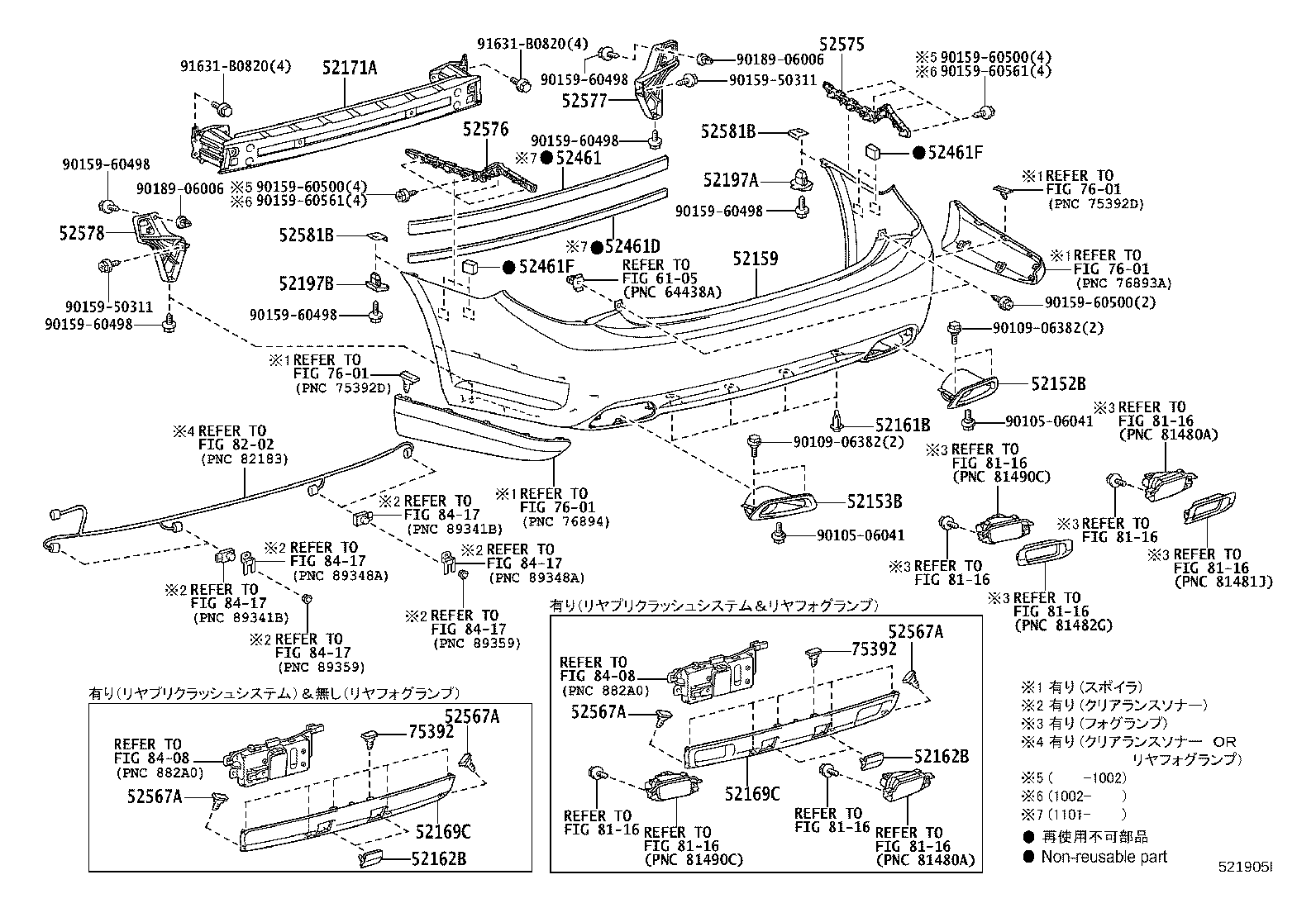

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-30100 |
GRS20#..CBU |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-30120 |
GRS20#..CBU |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-30470B1 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30470B0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),SILVER ME.,1F7 |
1 | ||
| 52159-30470G0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.GREEN MC.,6V4 |
1 | ||
| 52159-30470A0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),WHITE PEARL CS.,062 |
1 | ||
| 52159-30470C0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACK,202 |
1 | ||
| 52159-30470D0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30470J0 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30550B0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様,SILVER ME.,1F7 |
1 | ||
| 52159-30550A0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様,WHITE PEARL CS.,062 |
1 | ||
| 52159-30550D0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様,BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30550G0 |
GRS200,201,204..ATH 寒冷地仕様,DK.GREEN MC.,6V4 |
1 | ||
| 52159-30550J0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様,DK.BLUE MC.,8S6 |
1 | ||
| 52159-30550C0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様,BLACK,202 |
1 | ||
| 52159-30560B0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),SILVER ME.,1F7 |
1 | ||
| 52159-30570A0 |
GRS204,GWS204 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),WHITE PEARL CS.,062 |
1 | ||
| 52159-30560D0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30560A0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),WHITE PEARL CS.,062 |
1 | ||
| 52159-30560J0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30570B1 |
GRS204,GWS204 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30560B1 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30570G0 |
GRS204 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.GREEN MC.,6V4 |
1 | ||
| 52159-30570B0 |
GRS204,GWS204 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),SILVER ME.,1F7 |
1 | ||
| 52159-30550B1 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様,PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30560G0 |
GRS200,201,204..ATH 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.GREEN MC.,6V4 |
1 | ||
| 52159-30570J0 |
GRS204,GWS204 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30570C0 |
GRS204,GWS204 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACK,202 |
1 | ||
| 52159-30560C0 |
GRS200,201,204,GWS204..ATH,HBD 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACK,202 |
1 | ||
| 52159-30570D0 |
GRS204 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30450B1 |
GRS200,201,204..ATH PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30450D0 |
GRS200,201,204..ATH BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30450G0 |
GRS200,201,204..ATH DK.GREEN MC.,6V4 |
1 | ||
| 52159-30450C0 |
GRS200,201,204..ATH BLACK,202 |
1 | ||
| 52159-30450A0 |
GRS200,201,204..ATH WHITE PEARL CS.,062 |
1 | ||
| 52159-30460B0 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),SILVER ME.,1F7 |
1 | ||
| 52159-30450B0 |
GRS200,201,204..ATH SILVER ME.,1F7 |
1 | ||
| 52159-30460J0 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30460D0 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30450J0 |
GRS200,201,204..ATH DK.BLUE MC.,8S6 |
1 | ||
| 52159-30460B1 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30460A0 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),WHITE PEARL CS.,062 |
1 | ||
| 52159-30460C0 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACK,202 |
1 | ||
| 52159-30460G0 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.GREEN MC.,6V4 |
1 | ||
| 52159-30470A0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),WHITE PEARL CS.,062 |
1 | ||
| 52159-30460B2 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),GRAY ME.,1F9 |
1 | ||
| 52159-30470B1 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30470D0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30470B0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),SILVER ME.,1F7 |
1 | ||
| 52159-30470J0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30470G0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.GREEN MC.,6V4 |
1 | ||
| 52159-30450B2 |
GRS200,201,204..ATH GRAY ME.,1F9 |
1 | ||
| 52159-30470C0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACK,202 |
1 | ||
| 52159-30550B0 |
GRS200,201,204..ATH ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,1F7 |
1 | ||
| 52159-30550B2 |
GRS200,201,204..ATH ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,GRAY ME.,1F9 |
1 | ||
| 52159-30550J0 |
GRS200,201,204..ATH ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,DK.BLUE MC.,8S6 |
1 | ||
| 52159-30550C0 |
GRS200,201,204..ATH ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,BLACK,202 |
1 | ||
| 52159-30550B1 |
GRS200,201,204..ATH ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30550G0 |
GRS200,201,204..ATH ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,DK.GREEN MC.,6V4 |
1 | ||
| 52159-30550A0 |
GRS200,201,204..ATH ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE PEARL CS.,062 |
1 | ||
| 52159-30550D0 |
GRS200,201,204..ATH ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30560A0 |
GRS204 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),WHITE PEARL CS.,062 |
1 | ||
| 52159-30560B1 |
GRS204 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30560B0 |
GRS204 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),SILVER ME.,1F7 |
1 | ||
| 52159-30560B2 |
GRS204 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),GRAY ME.,1F9 |
1 | ||
| 52159-30560D0 |
GRS204 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30560G0 |
GRS204 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.GREEN MC.,6V4 |
1 | ||
| 52159-30560J0 |
GRS204 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30570G0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.GREEN MC.,6V4 |
1 | ||
| 52159-30570C0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACK,202 |
1 | ||
| 52159-30560C0 |
GRS204 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACK,202 |
1 | ||
| 52159-30570A0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),WHITE PEARL CS.,062 |
1 | ||
| 52159-30570D0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-30570B0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),SILVER ME.,1F7 |
1 | ||
| 52159-30570B1 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52159-30570J0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),DK.BLUE MC.,8S6 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GRS20#,GWS204..CBU |
4 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-30120 |
GRS202,204,GWS204..ATH,HBD,ROYG 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52162-30120 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52162-30120 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52162-30120 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-30120 |
GRS202,204,GWS204..ATH,HBD,ROYG 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52162-30120 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52162-30120 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52162-30120 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-30020 |
GRS204 塗装不要,Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘAﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 52169-30030 |
GRS202,204,GWS204..ATH,HBD,ROYG 塗装不要,寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱ宴塔Xｿﾅｰ−有り(舵角感応式) |
1 | ||
| 52169-30020 |
GRS204 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ|有り(舵角感応式) |
1 | ||
| 52169-30030 |
GRS204 塗装不要,Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔtｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-30020 |
GRS204 塗装不要,Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘAﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 52169-30030 |
GRS202,204,GWS204..ATH,HBD,ROYG 塗装不要,寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱ宴塔Xｿﾅｰ−有り(舵角感応式) |
1 | ||
| 52169-30020 |
GRS204 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ|有り(舵角感応式) |
1 | ||
| 52169-30030 |
GRS204 塗装不要,Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔtｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52023-30340 |
GRS20#,GWS204 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-30040 |
GRS20#,GWS204..CBU |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-30040 |
GRS20#,GWS204..CBU |
1 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52462-30060 |
GRS20#,GWS204..CBU |
4 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52462-30060 |
GRS20#,GWS204..CBU |
4 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52535-28020 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS202,204,GWS204..ATH,HBD,ROYG 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52535-28020 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS202,204,GWS204..ATH,HBD,ROYG 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52535-28020 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS202,204,GWS204..ATH,HBD,ROYG 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52567A - RETAINER, REAR BUMPER, LOWER SIDE | ||||
| 52535-28020 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS202,204,GWS204..ATH,HBD,ROYG 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52535-28020 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-30190 |
GRS20#,GWS204..CBU |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-30150 |
GRS20#,GWS204..CBU |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-30090 |
GRS20#,GWS204..CBU |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-30090 |
GRS20#,GWS204..CBU |
1 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-30060 |
GRS20#,GWS204..CBU |
2 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-30060 |
GRS20#,GWS204..CBU |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
8 | ||
| 75392-35200 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
8 | ||
| 75392-35200 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
8 | ||
| 75392-35200 |
GRS202,204,GWS204..ATH,HBD,ROYG 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
8 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
8 | ||
| 75392-35200 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
8 | ||
| 75392-35200 |
GRS204 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
8 | ||
| 75392-35200 |
GRS202,204,GWS204..ATH,HBD,ROYG 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
8 | ||
| Common parts | ||||
| 90105-06041 | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90159-60498 | ||||
| 90159-60500 | ||||
| 90159-60561 | ||||
| 90189-06006 | ||||
| 91631-B0820 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 7601 | ||||
| 8116 | ||||
| 8202 | ||||
| 8408 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
