GRS204-AETXH (2008)
Toyota Crown

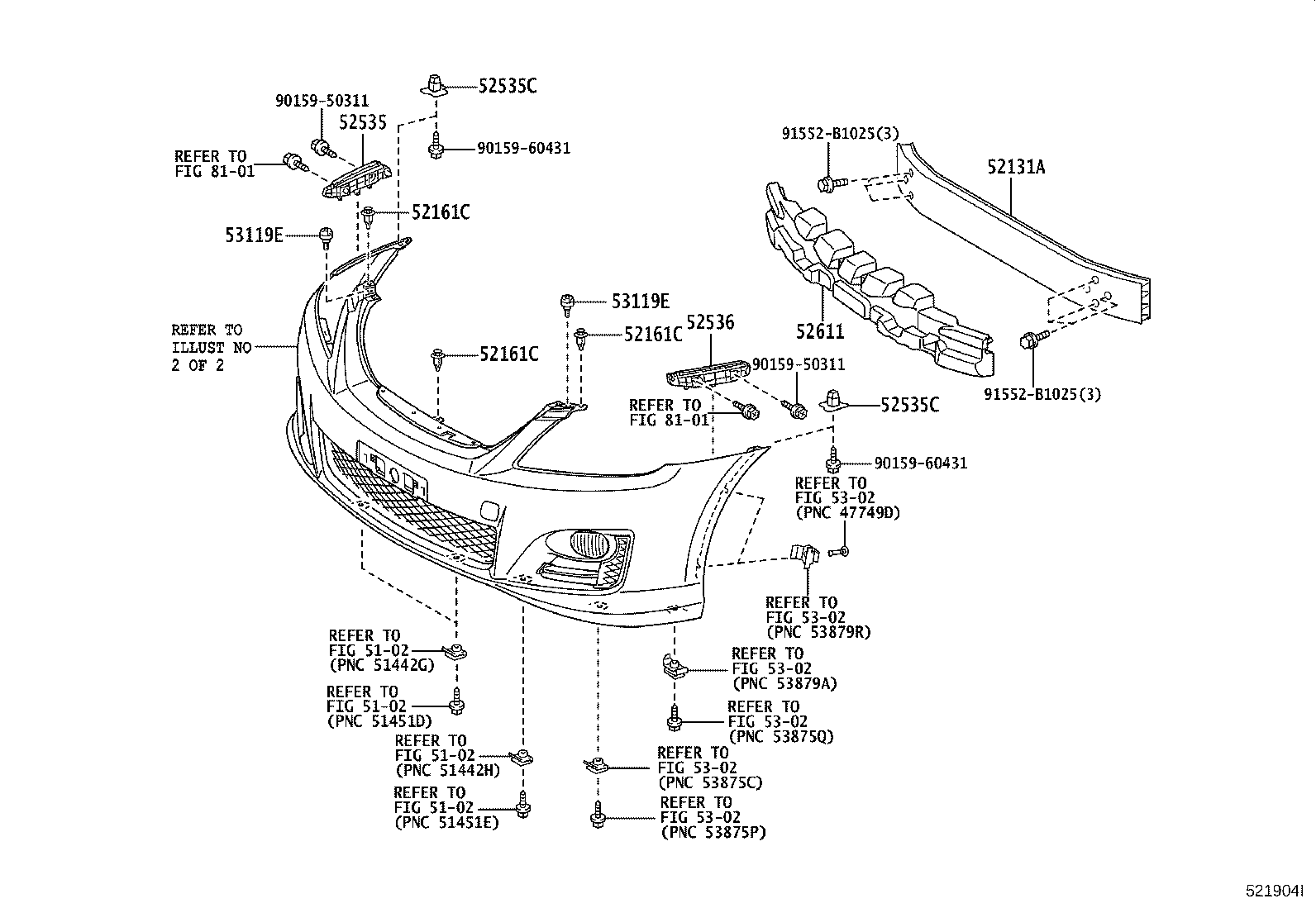

ILLUST NO. 1 OF 2(0802-1002)ATH,HBD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30290 |
GRS20#,GWS204 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRS20#,GWS204 |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRS20#,GWS204 |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRS20#,GWS204 |
3 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30200 |
GRS20#,GWS204 |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
GRS20#,GWS204 |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
GRS20#,GWS204 |
2 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30200 |
GRS20#,GWS204 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30340 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
GRS20#,GWS204 |
2 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
GRS20#,GWS204 |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 91552-B1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

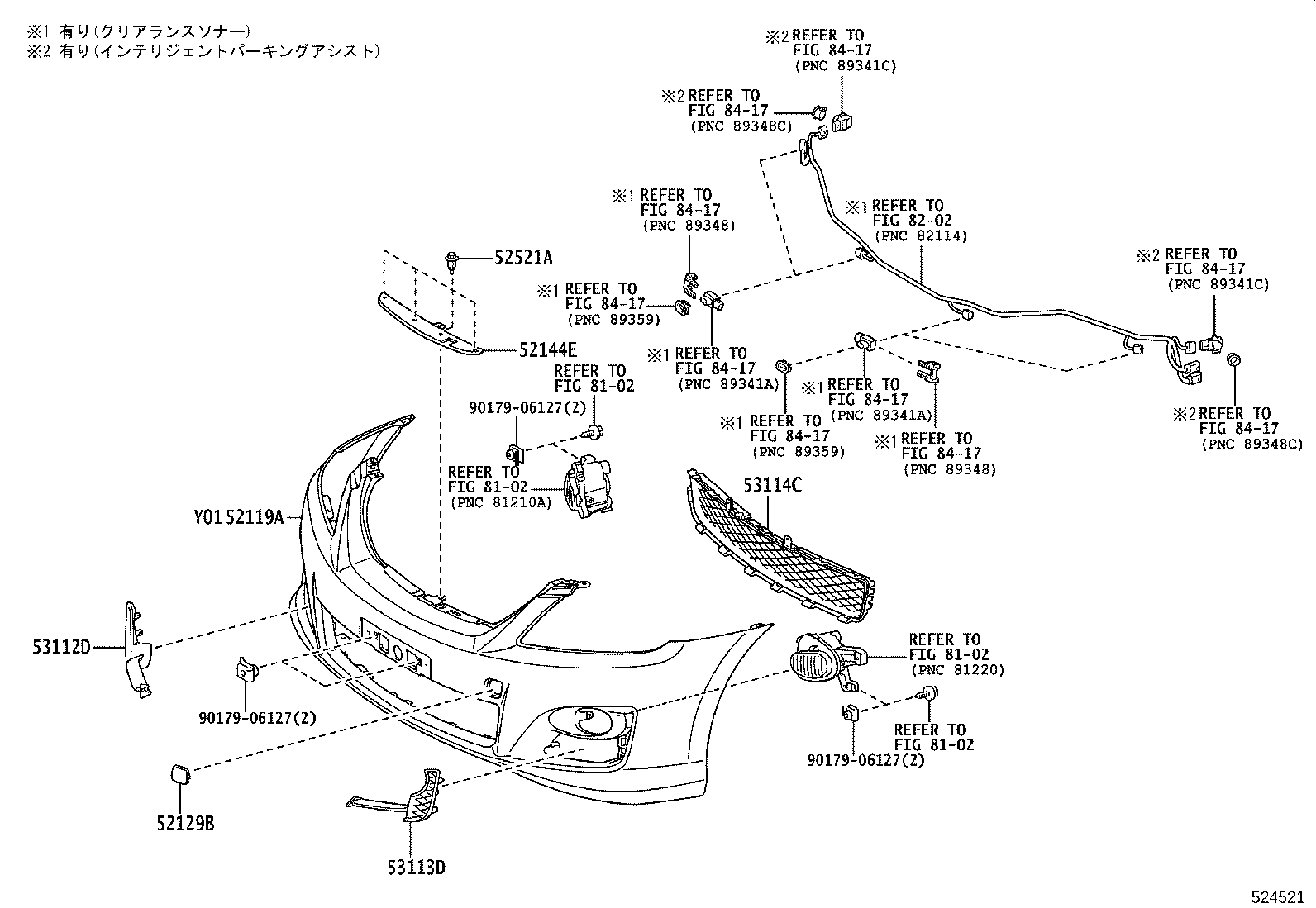

ILLUST NO. 2 OF 2(0802-1002)ATH,HBD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30840A0 |
GRS204,GWS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30830B0 |
GRS200,201,204,GWS204..ATH,HBD SILVER ME.,1F7 |
1 | ||
| 52119-30830B1 |
GRS200,201,204,GWS204..ATH,HBD PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30830A0 |
GRS200,201,204,GWS204..ATH,HBD WHITE PEARL CS.,062 |
1 | ||
| 52119-30830D0 |
GRS200,201,204..ATH BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30840B0 |
GRS204,GWS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30830G0 |
GRS200,201,204,GWS204..ATH,HBD DK.GREEN MC.,6V4 |
1 | ||
| 52119-30840G0 |
GRS204,GWS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),DK.GREEN MC.,6V4 |
1 | ||
| 52119-30840B1 |
GRS204,GWS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30840D0 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30840C0 |
GRS204,GWS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30840J0 |
GRS204,GWS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-30850A0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30850B0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30830C0 |
GRS200,201,204,GWS204..ATH,HBD BLACK,202 |
1 | ||
| 52119-30830J0 |
GRS200,201,204,GWS204..ATH,HBD DK.BLUE MC.,8S6 |
1 | ||
| 52119-30850G0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),DK.GREEN MC.,6V4 |
1 | ||
| 52119-30850C0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30850J0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-30850D0 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30850B1 |
GRS204 Gﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30830B2 |
GRS200,201,204..ATH GRAY ME.,1F9 |
1 | ||
| 52119-30840B2 |
GRS204 ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),GRAY ME.,1F9 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-30070B0 |
GRS200,201,204,GWS204..ATH,HBD SILVER ME.,1F7 |
1 | ||
| 52129-30070B2 |
GRS200,201,204..ATH GRAY ME.,1F9 |
1 | ||
| 52129-30070B1 |
GRS200,201,204,GWS204..ATH,HBD PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52129-30070A0 |
GRS200,201,204,GWS204..ATH,HBD WHITE PEARL CS.,062 |
1 | ||
| 52129-30070C0 |
GRS200,201,204,GWS204..ATH,HBD BLACK,202 |
1 | ||
| 52129-30070J0 |
GRS200,201,204,GWS204..ATH,HBD DK.BLUE MC.,8S6 |
1 | ||
| 52129-30070G0 |
GRS200,201,204,GWS204..ATH,HBD DK.GREEN MC.,6V4 |
1 | ||
| 52129-30070D0 |
GRS200,201,204..ATH BLACKISH RED MC.,3R0 |
1 | ||
| 52144E - STAY, FRONT BUMPER, CENTER | ||||
| 52144-30200 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-08180 |
GRS20#,GWS204 |
4 | ||
| 53112D - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-30300 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 53113D - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-30210 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 53114C - GRILLE, RADIATOR, INNER | ||||
| 53114-30080 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| Common parts | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
