GRS204-AETXH (2008)
Toyota Crown

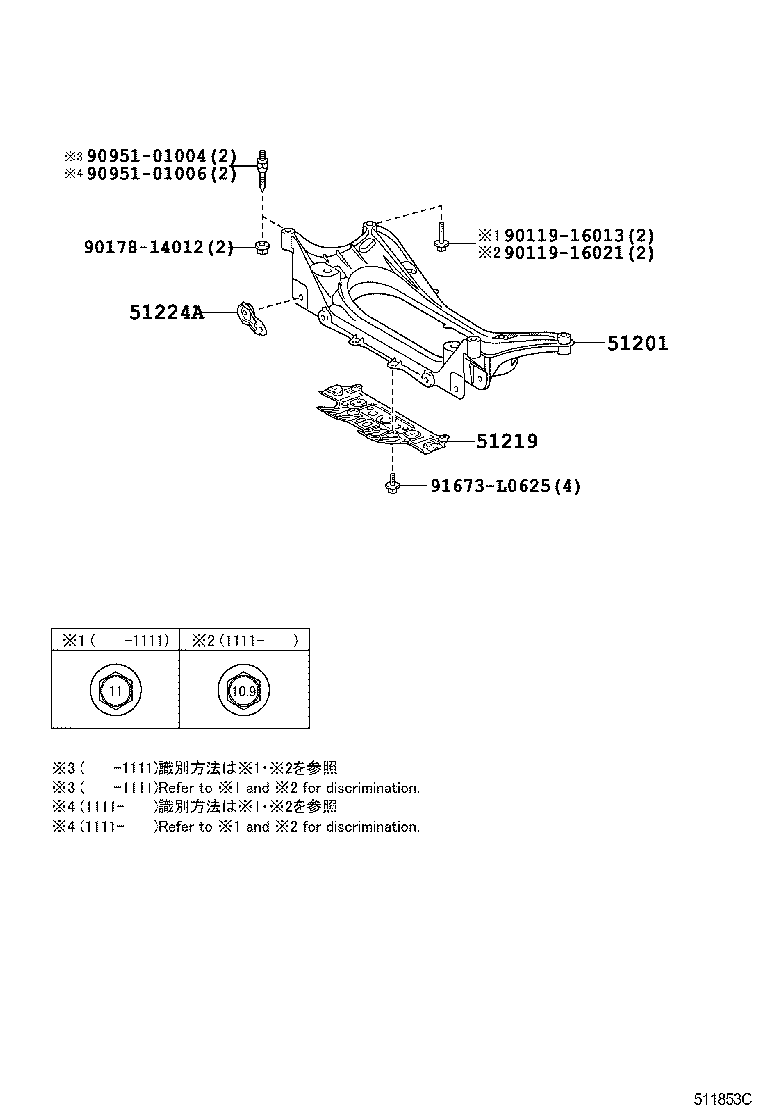

ILLUST NO. 1 OF 3(0802- )GRS200,202,204,GWS204
ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ ｸﾛｽﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-30130 |
GRS200,202,204,GWS204 |
1 | ||
| 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR | ||||
| 51219-30031 |
GRS200,202,204,GWS204 |
1 | ||
| 51224A - PLATE, FRONT SUSPENSION MENBER BRACE | ||||
| 51224-30030 |
GRS200,202,204,GWS204 |
2 | ||
| Common parts | ||||
| 90119-16013 | ||||
| 90119-16021 | ||||
| 90178-14012 | ||||
| 90951-01004 | ||||
| 90951-01006 | ||||
| 91673-L0625 | ||||

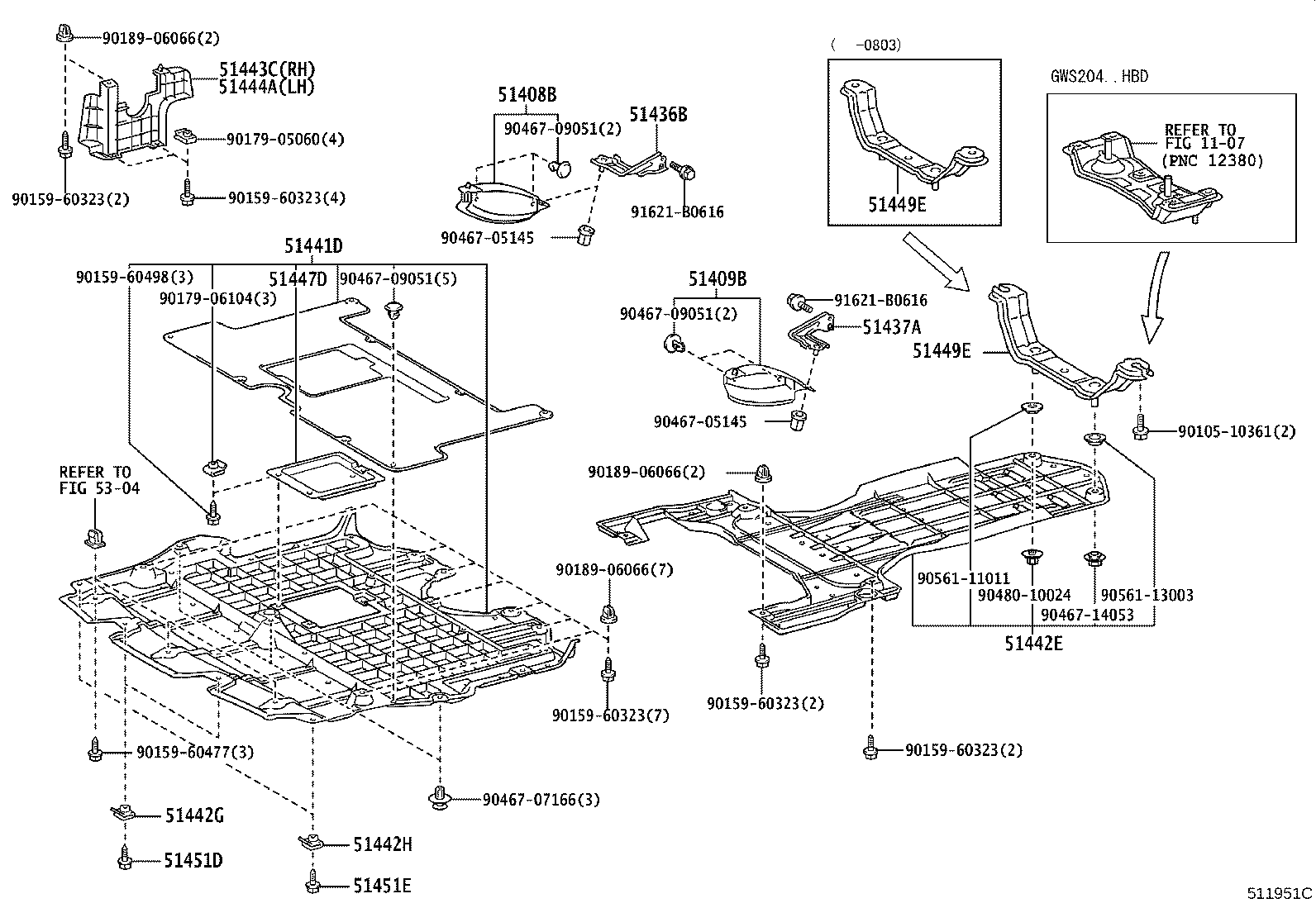

ILLUST NO. 3 OF 3(0802-0903)GRS200,202,204,GWS204
ｱﾝﾀﾞ ｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51408B - COVER SUB-ASSY, ENGINE UNDER, RH | ||||
| 51408-30050 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51408-30060 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51409B - COVER SUB-ASSY, ENGINE UNDER, LH | ||||
| 51409-30060 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51409-30050 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-30030 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51437A - BRACKET, ENGINE SIDE COVER, NO.1 LH | ||||
| 51437-30010 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51410-30140 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51410-30141 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-30150 |
GRS200,202,204..CBU |
1 | ||
| 51442-30151 |
GRS200,202,204..CBU |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90179-05060 |
GRS20#,GWS204..CBU |
2 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90179-05060 |
GRS20#,GWS204..CBU |
2 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-30140 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51443-30141 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-30170 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51444-30171 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-30080 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 51449E - BRACKET, ENGINE UNDER COVER AIR GUIDE | ||||
| 51449-53030 |
GRS200,202,204..CBU |
1 | ||
| 51449-30090 |
GRS200,202,204 |
1 | ||
| 51449E - BRACKET, ENGINE UNDER COVER AIR GUIDE | ||||
| 51449-53030 |
GRS200,202,204..CBU |
1 | ||
| 51449-30090 |
GRS200,202,204 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
GRS20#,GWS204..CBU |
2 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60477 |
GRS20#,GWS204..CBU |
2 | ||
| Common parts | ||||
| 90105-10361 | ||||
| 90159-60323 | ||||
| 90159-60477 | ||||
| 90159-60498 | ||||
| 90179-05060 | ||||
| 90179-06104 | ||||
| 90189-06066 | ||||
| 90467-05145 | ||||
| 90467-07166 | ||||
| 90467-09051 | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 5304 | ||||
ILLUST NO. 2 OF 3(0802- )GRS200,202,204,GWS204
ﾘﾔｻｽﾍﾟﾝｼｮﾝｸﾛｽﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-30101 |
GRS204,GWS204 |
1 | ||
| 51206-30100 |
GRS204,GWS204 |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-30060 |
GRS20#,GWS204 寒冷地仕様 |
1 | ||
| 51969-30050 |
GRS20#,GWS204 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-30060 |
GRS20#,GWS204 |
1 | ||
| 51968-30070 |
GRS20#,GWS204 寒冷地仕様 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-30120 |
GRS20#,GWS204 |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-30070 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-30070 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-30050 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-30050 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-30130 |
GRS20#,GWS204 |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-30060 |
GRS20#,GWS204 |
2 | ||
| 52277-30070 |
GRS20#,GWS204 |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-30050 |
GRS20#,GWS204 |
2 | ||
| 52278-30080 |
GRS20#,GWS204 |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-30060 |
GRS20#,GWS204 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30021 |
GRS20#,GWS204 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30021 |
GRS20#,GWS204 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-53020 |
GRS20#,GWS204 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-53020 |
GRS20#,GWS204 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-53020 |
GRS20#,GWS204 |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-30030 |
GRS20#,GWS204 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-30030 |
GRS20#,GWS204 |
1 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-53030 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-53030 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| 58252C - BRACE, FLOOR PANEL, REAR NO.1 | ||||
| 58252-30020 |
GRS200,201,204,GWS204..ATH,HBD |
1 | ||
| Common parts | ||||
| 90119-08A39 | ||||
| 90119-08A87 | ||||
| 90119-10806 | ||||
| 90119-12247 | ||||
