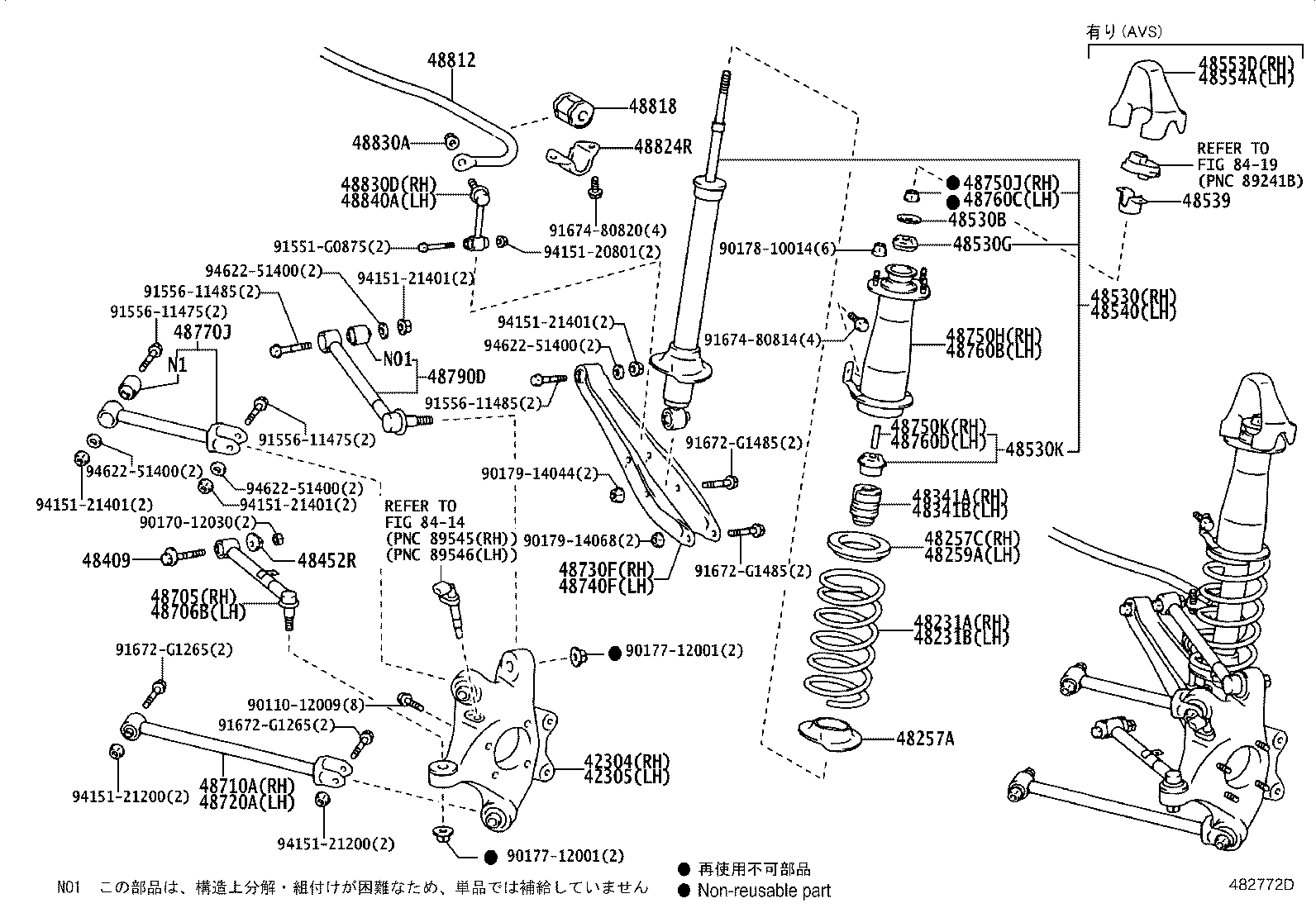

Toyota Crown GRS204 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-30110	GRS200,201,204,GWS204..ATH,HBD	02/2008 - 02/2010	1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-30110	GRS200,201,204,GWS204..ATH,HBD	02/2008 - 02/2010	1
48231A - SPRING, COIL, REAR RH
48231-30B50	GRS200,204..ATH	02/2008 - 02/2010	1
48231B - SPRING, COIL, REAR LH
48231-30B50	GRS200,204..ATH	02/2008 - 02/2010	1
48257A - INSULATOR, REAR COIL SPRING, LOWER
48158-30020	GRS20#,GWS204	02/2008 - 02/2010	2
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-30070	GRS20#,GWS204	02/2008 - 02/2010	1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-30070	GRS20#,GWS204	02/2008 - 02/2010	1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-30130	GRS20#,GWS204	02/2008 - 02/2010	1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-30130	GRS20#,GWS204	02/2008 - 02/2010	1
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-30020	GRS20#,GWS204	02/2008 - 02/2010	2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-30040	GRS20#,GWS204	02/2008 - 02/2010	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-80470	GRS200,204..ATH ﾏｰｸ 48530−30730	02/2008 - 02/2010	1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03021	GRS20#,GWS204	02/2008 - 02/2010	2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01092	GRS20#,GWS204	02/2008 - 02/2010	2
48530K - CUSHION, REAR SHOCK ABSORBER, NO.2
90948-01093	GRS20#,GWS204	02/2008 - 02/2010	2
48539 - BRACKET, ACTUATOR SUPPORT, RR
48539-30030	GRS201,202,203;GRS200,204,GWS204..ATH,HBD	02/2008 - 02/2010	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-80470	GRS200,204..ATH ﾏｰｸ 48530−30730	02/2008 - 02/2010	1
48553D - CAP, REAR SHOCK ABSORBER, RH
48553-30090	GRS201,202,203;GRS200,204,GWS204..ATH,HBD	02/2008 - 02/2010	1
48554A - CAP, REAR SHOCK ABSORBER, LH
48553-30090	GRS201,202,203;GRS200,204,GWS204..ATH,HBD	02/2008 - 02/2010	1
48705 - LINK SUB-ASSY, TOE CONTROL, RH
48705-30130	GRS200,201,204,GWS204..ATH,HBD	02/2008 - 02/2010	1
48706B - LINK SUB-ASSY, TOE CONTROL, LH
48706-30070	GRS200,201,204,GWS204..ATH,HBD	02/2008 - 02/2010	1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-30220	GRS20#,GWS204	02/2008 - 02/2010	1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-30220	GRS20#,GWS204	02/2008 - 02/2010	1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-30130	GRS20#,GWS204	02/2008 - 02/2010	1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-30130	GRS20#,GWS204	02/2008 - 02/2010	1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-30150	GRS20#,GWS204	02/2008 - 02/2010	1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90179-12127	GRS20#,GWS204	02/2008 - 02/2010	1
48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90387-12050	GRS20#,GWS204	02/2008 - 02/2010	1
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-30150	GRS20#,GWS204	02/2008 - 02/2010	1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90179-12127	GRS20#,GWS204	02/2008 - 02/2010	1
48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90387-12050	GRS20#,GWS204	02/2008 - 02/2010	1
48770J - ARM ASSY, UPPER CONTROL, REAR NO.1
48770-30110	GRS200,201,204,GWS204..ATH,HBD	02/2008 - 02/2010	2
48790D - ARM ASSY, UPPER CONTROL, REAR NO.2
48790-30120	GRS200,201,204,GWS204..ATH,HBD	02/2008 - 02/2010	2
48812 - BAR, STABILIZER, REAR
48812-30390	GRS200,204..ATH	02/2008 - 02/2010	1
48818 - BUSH, STABILIZER, REAR
48818-30170	GRS200,204..ATH	02/2008 - 02/2010	2
48824R - BRACKET, STABILIZER(FOR REAR)
48832-30060	GRS20#,GWS204	02/2008 - 02/2010	2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-12151	GRS20#,GWS204	02/2008 - 02/2010	2
48830D - LINK ASSY, REAR STABILIZER, RH
48830-30090	GRS20#,GWS204	02/2008 - 02/2010	1
48840A - LINK ASSY, REAR STABILIZER, LH
48830-30090	GRS20#,GWS204	02/2008 - 02/2010	1
Common parts
90110-12009
90170-12030
90177-12001
90178-10014
90179-14044
90179-14068
91551-G0875
91556-11475
91556-11485
91672-G1265
91672-G1485
91674-80814
91674-80820
94151-20801
94151-21200
94151-21401
94622-51400
Linked diagrams
8414
8419

GRS204-AETXH (2008)

(0802- )
