GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )GRS200,202,204,GWS204

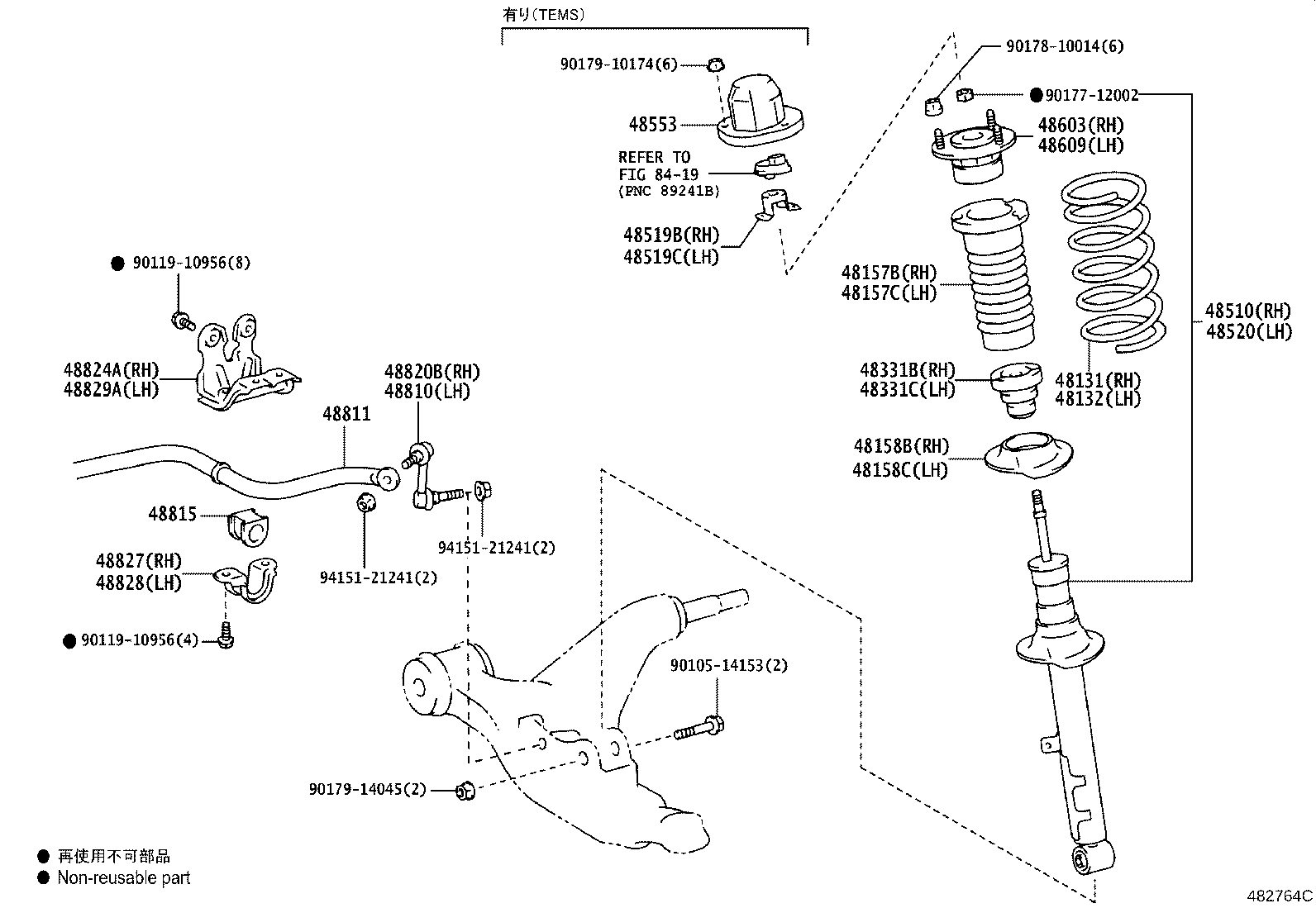

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48510 48519B 48519C 48520 48553 48603 48609 48810 48811 48815 48820B 48824A 48827 48828 48829A 8419 9010514153 9011910956 9011910956 9017712002 9017810014 9017910174 9017914045 9415121241 9415121241
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-30B60

GRS200,204..ATH

 1
48132 - SPRING, FRONT COIL, LH
48131-30B60

GRS200,204..ATH

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-30250

GRS200,202,204,GWS204

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-30250

GRS200,202,204,GWS204

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-30020

GRS20#,GWS204

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-30020

GRS20#,GWS204

 1
48331B - BUMPER, FRONT SPRING, RH
48331-30230

GRS200,202,204,GWS204

 1
48331C - BUMPER, FRONT SPRING, LH
48331-30230

GRS200,202,204,GWS204

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80403

GRS200,204..ATH

ﾏｰｸ 48510−30790

 1
48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH
48519-30030

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 1
48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH
48519-30030

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-80159

GRS200,204..ATH

ﾏｰｸ 48520−30240

 1
48553 - CAP, SHOCK ABSORBER, UPPER
48553-30100

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 2
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-30160

GRS202;GRS200,204,GWS204..ATH,HBD

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-30160

GRS202;GRS200,204,GWS204..ATH,HBD

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-30070

GRS200,202,204,GWS204

 1
48811 - BAR, STABILIZER, FRONT
48811-30640

GRS200,204..ATH

 1
48811-30760

GRS200,204..ATH

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30561

GRS201,203;GRS200,204..ATH

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-30090

GRS200,202,204,GWS204

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48809-30060

GRS200,202,204,GWS204

 1
48809-30090

GRS200,202,204,GWS204

 1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48824-30130

GRS200,202,204,GWS204

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48824-30130

GRS200,202,204,GWS204

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48809-30090

GRS200,202,204,GWS204

 1
48809-30060

GRS200,202,204,GWS204

 1
Common parts
90105-14153
90119-10956
90177-12002
90178-10014
90179-10174
90179-14045
94151-21241
Linked diagrams
8419
