GRS204-AETXH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
2GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )GRS204

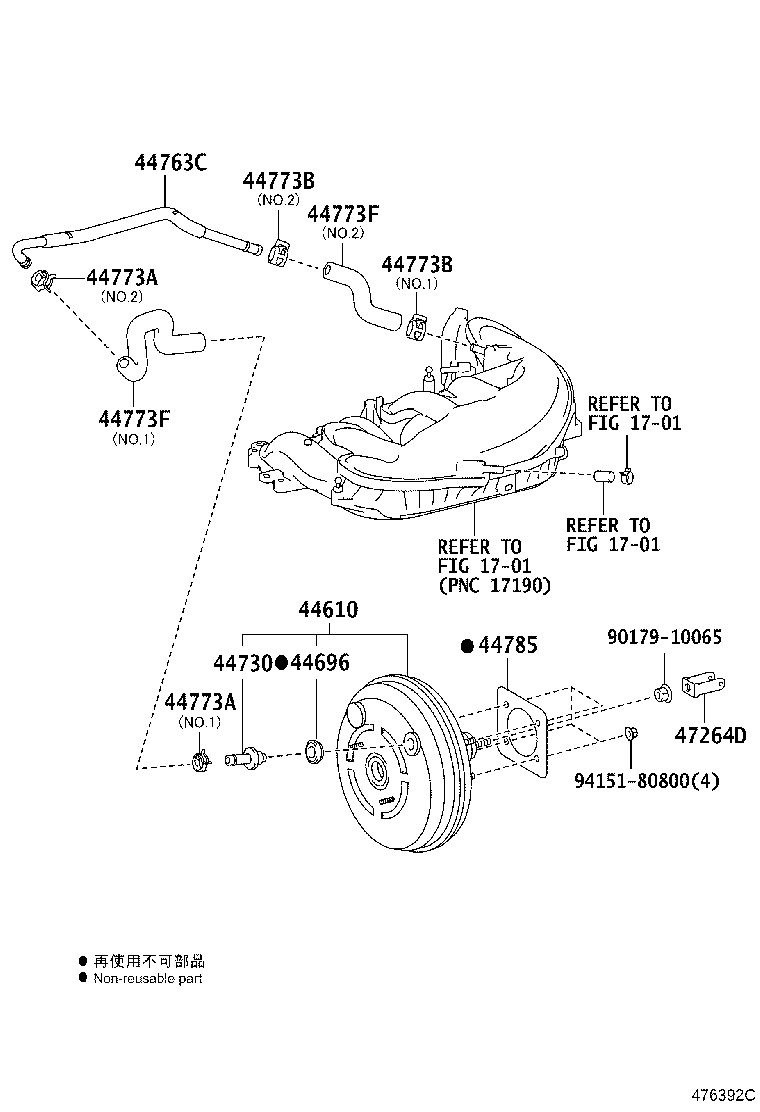

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30B31 |
GRS204 |
1 | ||
| 44610-30B30 |
GRS204 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
GRS20# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22150 |
GRS20# |
1 | ||
| 44763C - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-22320 |
GRS204 |
1 | ||
| 44763-30100 |
GRS204 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
GRS204 NO.2 |
1 | ||
| 90467-16014 |
GRS204 NO.1 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
GRS204 NO.2 |
1 | ||
| 90467-16014 |
GRS204 NO.1 |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
GRS204 NO.2 |
1 | ||
| 90467-16014 |
GRS204 NO.1 |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
GRS204 NO.2 |
1 | ||
| 90467-16014 |
GRS204 NO.1 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-22550 |
GRS204 NO.2 |
1 | ||
| 44773-30580 |
GRS204 NO.1 |
1 | ||
| 44773-30600 |
GRS204 NO.2 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-22550 |
GRS204 NO.2 |
1 | ||
| 44773-30580 |
GRS204 NO.1 |
1 | ||
| 44773-30600 |
GRS204 NO.2 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-47010 |
GRS20# |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-22040 |
GRS20# |
1 | ||
| Common parts | ||||
| 90179-10065 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
