GRS204-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802-1002)

Click highlighted areas on diagram

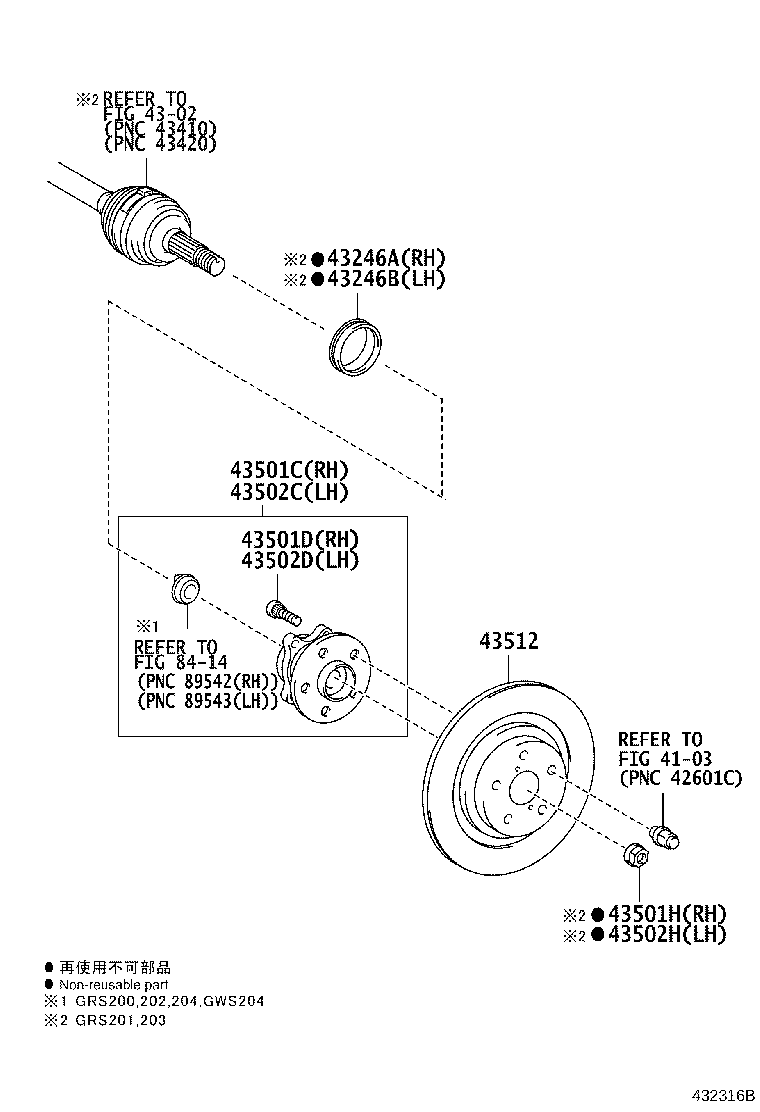

diagram 4103 4302 43246A 43246B 43501C 43501D 43501H 43502C 43502D 43502H 43512 8414
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-30010

GRS200,202,204,GWS204..CBU

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02070

GRS20#,GWS204

 5
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43560-30010

GRS200,202,204,GWS204..CBU

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02070

GRS20#,GWS204

 5
43512 - DISC, FRONT
43512-30350

GRS204,GWS204

右側

 1
43516-30040

GRS204,GWS204

左側

 1
Linked diagrams
4103
4302
8414
