GRS204-AETXH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
2GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

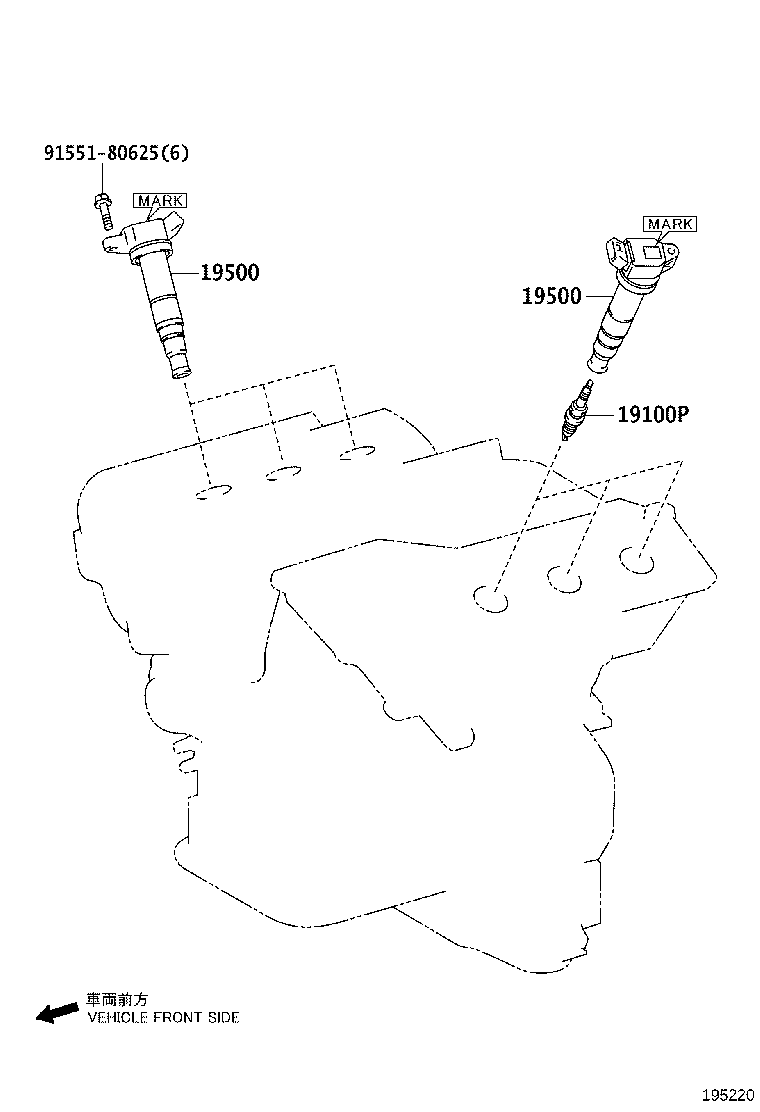

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01249 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 FK20HBR11 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02250 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
6 | ||
| 90919-02256 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02250 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
6 | ||
| 90919-02256 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
6 | ||
| Common parts | ||||
| 91551-80625 | ||||
