GRS204-AETXH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
2GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )2GRFSE..GRS204

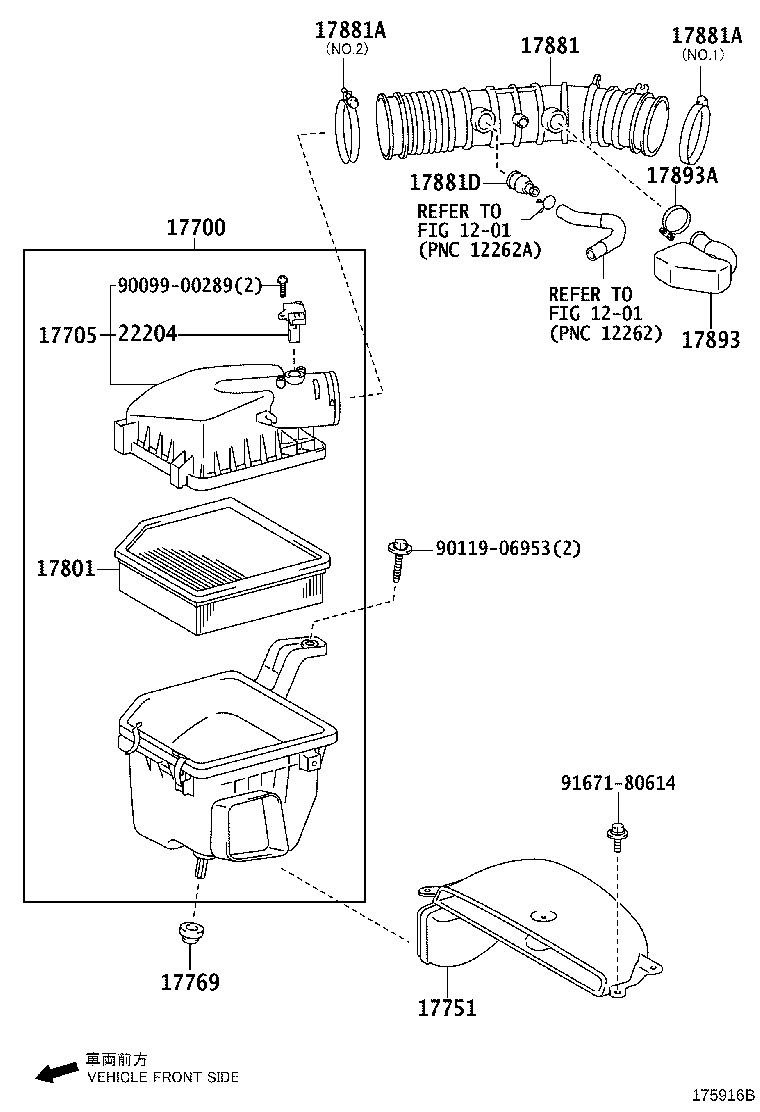

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31730 |
2GRFSE,3GRFSE,4GRFSE..GRS20# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-31110 |
2GRFSE,3GRFSE,4GRFSE..GRS20# |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-31230 |
2GRFSE..GRS204 |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-31020 |
2GRFSE,3GRFSE,4GRFSE..GRS20# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31100 |
2GRFSE,3GRFSE,4GRFSE..GRS20# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-31210 |
2GRFSE..GRS204 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
2GRFSE,3GRFSE,4GRFSE..GRS20# NO.2 |
1 | ||
| 90460-90005 |
2GRFSE..GRS204,GWS204 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
2GRFSE,3GRFSE,4GRFSE..GRS20# NO.2 |
1 | ||
| 90460-90005 |
2GRFSE..GRS204,GWS204 NO.1 |
1 | ||
| 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) | ||||
| 90904-06008 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-31040 |
2GRFSE..GRS204 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10380 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-31020 |
2GRFSE,3GRFSE,4GRFSE..GRS20# |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06953 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1201 | ||||
