GRS204-AETXH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
2GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )2GRFSE,3GRFSE,4GRFSE..GRS20#

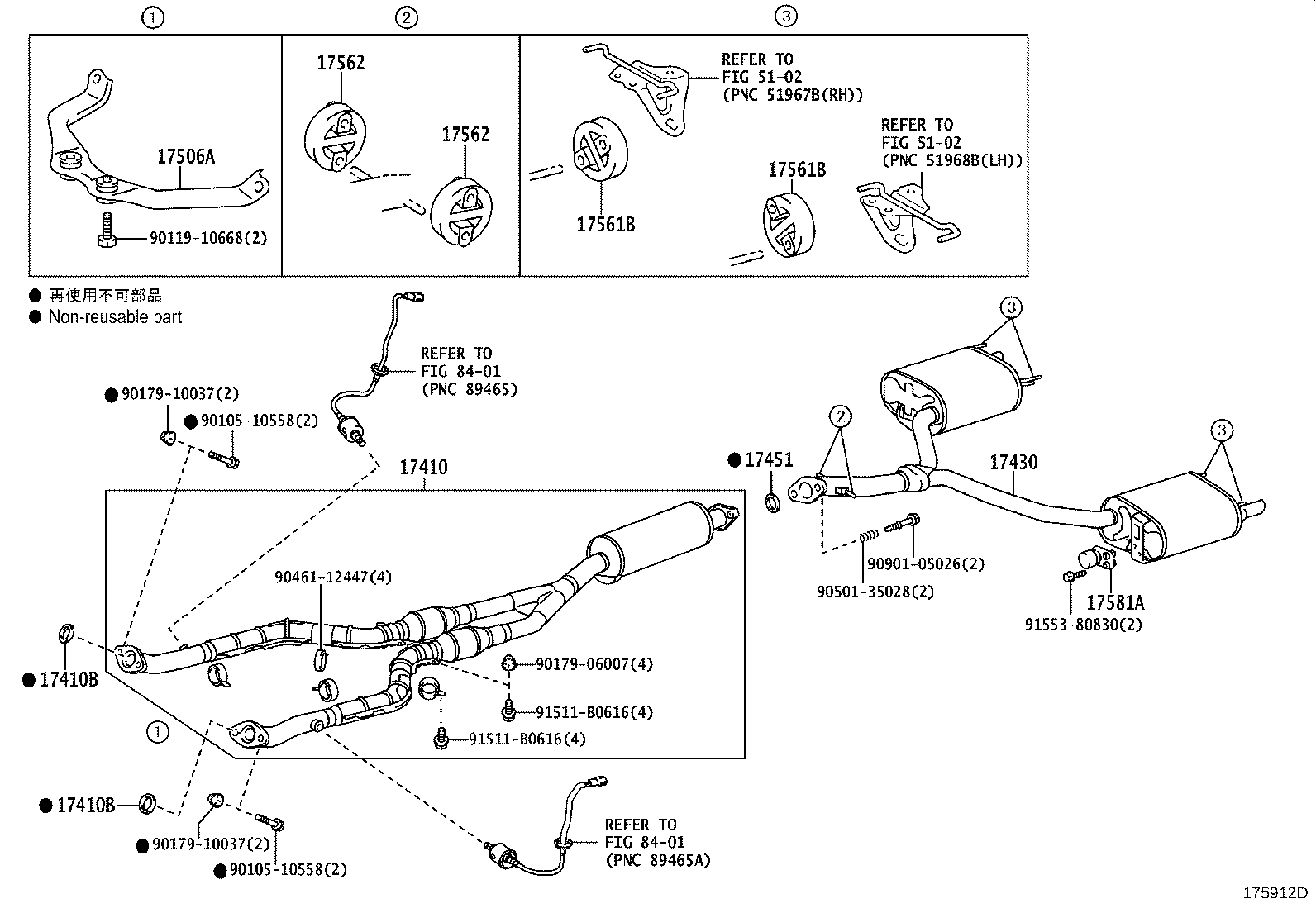

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-31810 |
2GRFSE..GRS204 *114=TOYOTA/GE5/Y |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-31650 |
2GRFSE..GRS204 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-31011 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 17451-31010 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-31030 |
2GRFSE,3GRFSE,4GRFSE..GRS200,202,204 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17565-22030 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
4 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17565-22030 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
4 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17565-22040 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
2 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17565-22040 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
2 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-46140 |
2GRFSE,3GRFSE,4GRFSE..GRS20# |
1 | ||
| Common parts | ||||
| 90105-10558 | ||||
| 90119-10668 | ||||
| 90179-06007 | ||||
| 90179-10037 | ||||
| 90461-12447 | ||||
| 90501-35028 | ||||
| 90901-05026 | ||||
| 91511-B0616 | ||||
| 91553-80830 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 8401 | ||||
