GRS204-AETXH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
2GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )2GRFSE

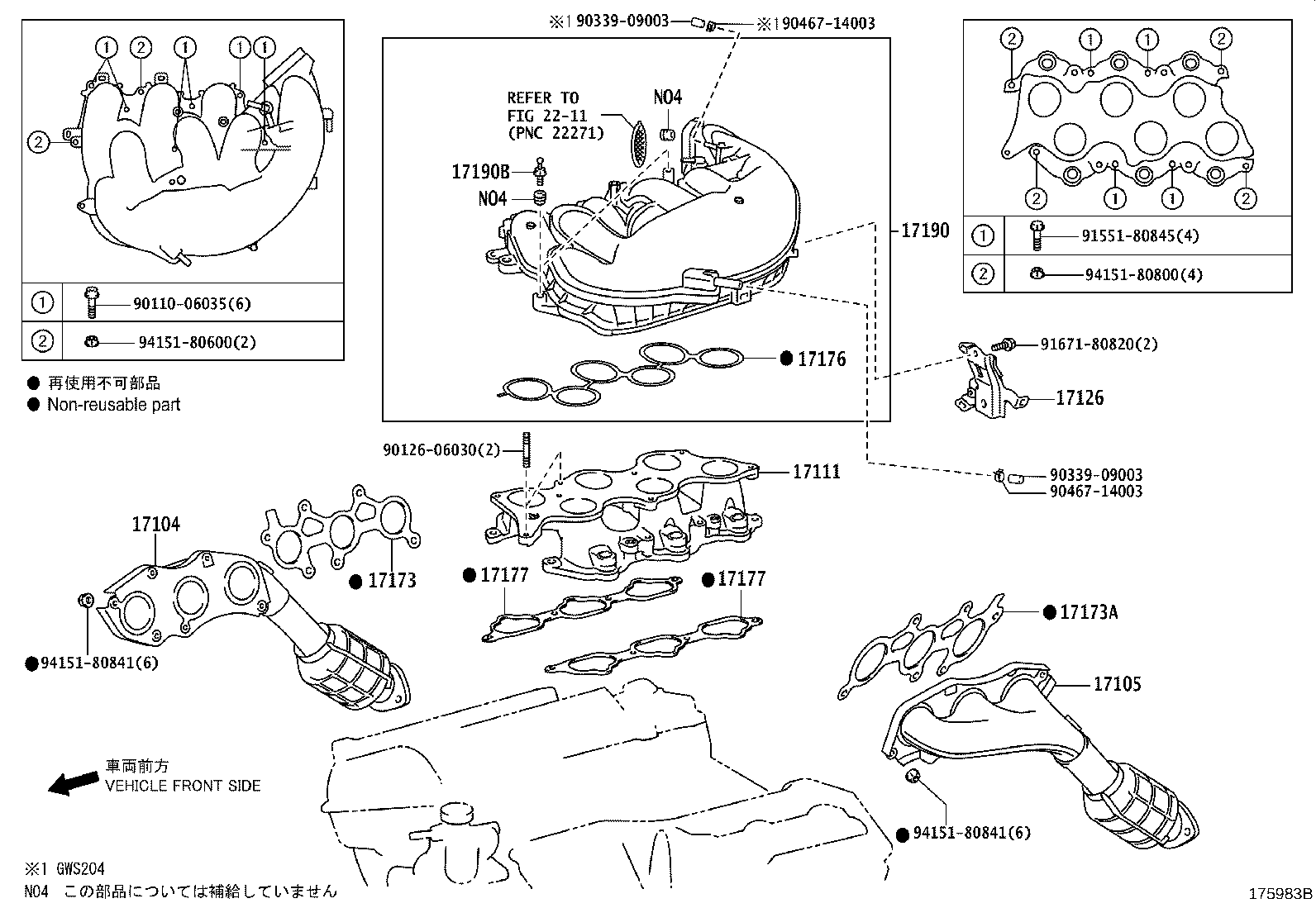

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17140-31340 |
2GRFSE..GRS204 *114=TOYOTA/R31340/Y |
1 | ||
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17150-31120 |
2GRFSE..GRS204 *114=TOYOTA/L31120/Y |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-31170 |
2GRFSE..GRS204,GWS204 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-31050 |
2GRFSE..GRS204,GWS204 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-31020 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-31020 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-31060 |
2GRFSE..GRS204,GWS204 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-31060 |
2GRFSE..GRS204,GWS204 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-31060 |
2GRFSE..GRS204,GWS204 |
2 | ||
| 17190 - TANK ASSY, INTAKE AIR SURGE | ||||
| 17190-31100 |
2GRFSE..GRS204,GWS204 |
1 | ||
| 17190B - BRACKET, INTAKE AIR SURGE TANK, NO.2 | ||||
| 11254-31020 |
2GRFSE..GRS204,GWS204 |
2 | ||
| Common parts | ||||
| 90110-06035 | ||||
| 90126-06030 | ||||
| 90339-09003 | ||||
| 90467-14003 | ||||
| 91551-80845 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94151-80841 | ||||
| Linked diagrams | ||||
| 2211 | ||||
