GRS204-AETXH (2008)
Toyota Crown
(0802- )

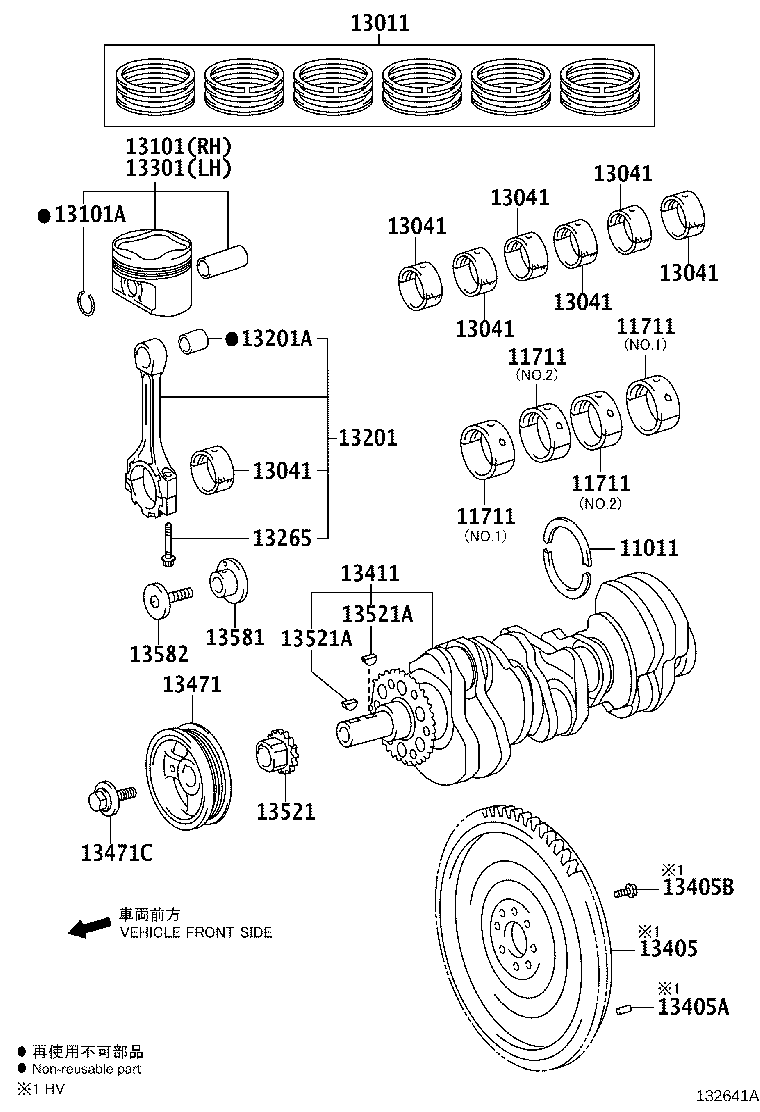

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-31060 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3104003 |
2GRFSE..GRS204,GWS204 MARK3,NO.2,修理書 参照 |
2 | ||
| 11071-3104004 |
2GRFSE..GRS204,GWS204 MARK4,NO.2,修理書 参照 |
2 | ||
| 11071-3104005 |
2GRFSE..GRS204,GWS204 MARK5,NO.2,修理書 参照 |
2 | ||
| 11071-3104001 |
2GRFSE..GRS204,GWS204 MARK1,NO.2,修理書 参照 |
2 | ||
| 11071-3104002 |
2GRFSE..GRS204,GWS204 MARK2,NO.2,修理書 参照 |
2 | ||
| 11701-3107005 |
2GRFSE..GRS204,GWS204 MARK5,NO.1,修理書 参照 |
2 | ||
| 11701-3107001 |
2GRFSE..GRS204,GWS204 MARK1,NO.1,修理書 参照 |
2 | ||
| 11701-3107004 |
2GRFSE..GRS204,GWS204 MARK4,NO.1,修理書 参照 |
2 | ||
| 11701-3107003 |
2GRFSE..GRS204,GWS204 MARK3,NO.1,修理書 参照 |
2 | ||
| 11701-3107002 |
2GRFSE..GRS204,GWS204 MARK2,NO.1,修理書 参照 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3104003 |
2GRFSE..GRS204,GWS204 MARK3,NO.2,修理書 参照 |
2 | ||
| 11071-3104004 |
2GRFSE..GRS204,GWS204 MARK4,NO.2,修理書 参照 |
2 | ||
| 11071-3104005 |
2GRFSE..GRS204,GWS204 MARK5,NO.2,修理書 参照 |
2 | ||
| 11071-3104001 |
2GRFSE..GRS204,GWS204 MARK1,NO.2,修理書 参照 |
2 | ||
| 11071-3104002 |
2GRFSE..GRS204,GWS204 MARK2,NO.2,修理書 参照 |
2 | ||
| 11701-3107005 |
2GRFSE..GRS204,GWS204 MARK5,NO.1,修理書 参照 |
2 | ||
| 11701-3107001 |
2GRFSE..GRS204,GWS204 MARK1,NO.1,修理書 参照 |
2 | ||
| 11701-3107004 |
2GRFSE..GRS204,GWS204 MARK4,NO.1,修理書 参照 |
2 | ||
| 11701-3107003 |
2GRFSE..GRS204,GWS204 MARK3,NO.1,修理書 参照 |
2 | ||
| 11701-3107002 |
2GRFSE..GRS204,GWS204 MARK2,NO.1,修理書 参照 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3104003 |
2GRFSE..GRS204,GWS204 MARK3,NO.2,修理書 参照 |
2 | ||
| 11071-3104004 |
2GRFSE..GRS204,GWS204 MARK4,NO.2,修理書 参照 |
2 | ||
| 11071-3104005 |
2GRFSE..GRS204,GWS204 MARK5,NO.2,修理書 参照 |
2 | ||
| 11071-3104001 |
2GRFSE..GRS204,GWS204 MARK1,NO.2,修理書 参照 |
2 | ||
| 11071-3104002 |
2GRFSE..GRS204,GWS204 MARK2,NO.2,修理書 参照 |
2 | ||
| 11701-3107005 |
2GRFSE..GRS204,GWS204 MARK5,NO.1,修理書 参照 |
2 | ||
| 11701-3107001 |
2GRFSE..GRS204,GWS204 MARK1,NO.1,修理書 参照 |
2 | ||
| 11701-3107004 |
2GRFSE..GRS204,GWS204 MARK4,NO.1,修理書 参照 |
2 | ||
| 11701-3107003 |
2GRFSE..GRS204,GWS204 MARK3,NO.1,修理書 参照 |
2 | ||
| 11701-3107002 |
2GRFSE..GRS204,GWS204 MARK2,NO.1,修理書 参照 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3104003 |
2GRFSE..GRS204,GWS204 MARK3,NO.2,修理書 参照 |
2 | ||
| 11071-3104004 |
2GRFSE..GRS204,GWS204 MARK4,NO.2,修理書 参照 |
2 | ||
| 11071-3104005 |
2GRFSE..GRS204,GWS204 MARK5,NO.2,修理書 参照 |
2 | ||
| 11071-3104001 |
2GRFSE..GRS204,GWS204 MARK1,NO.2,修理書 参照 |
2 | ||
| 11071-3104002 |
2GRFSE..GRS204,GWS204 MARK2,NO.2,修理書 参照 |
2 | ||
| 11701-3107005 |
2GRFSE..GRS204,GWS204 MARK5,NO.1,修理書 参照 |
2 | ||
| 11701-3107001 |
2GRFSE..GRS204,GWS204 MARK1,NO.1,修理書 参照 |
2 | ||
| 11701-3107004 |
2GRFSE..GRS204,GWS204 MARK4,NO.1,修理書 参照 |
2 | ||
| 11701-3107003 |
2GRFSE..GRS204,GWS204 MARK3,NO.1,修理書 参照 |
2 | ||
| 11701-3107002 |
2GRFSE..GRS204,GWS204 MARK2,NO.1,修理書 参照 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-31140 |
2GRFSE..GRS204,GWS204 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3108002 |
2GRFSE..GRS204,GWS204 MARK2,修理書参照 |
6 | ||
| 13041-3108003 |
2GRFSE..GRS204,GWS204 MARK3,修理書参照 |
6 | ||
| 13041-3108001 |
2GRFSE..GRS204,GWS204 MARK1,修理書参照 |
6 | ||
| 13041-3108004 |
2GRFSE..GRS204,GWS204 MARK4,修理書参照 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3108002 |
2GRFSE..GRS204,GWS204 MARK2,修理書参照 |
6 | ||
| 13041-3108003 |
2GRFSE..GRS204,GWS204 MARK3,修理書参照 |
6 | ||
| 13041-3108001 |
2GRFSE..GRS204,GWS204 MARK1,修理書参照 |
6 | ||
| 13041-3108004 |
2GRFSE..GRS204,GWS204 MARK4,修理書参照 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3108002 |
2GRFSE..GRS204,GWS204 MARK2,修理書参照 |
6 | ||
| 13041-3108003 |
2GRFSE..GRS204,GWS204 MARK3,修理書参照 |
6 | ||
| 13041-3108001 |
2GRFSE..GRS204,GWS204 MARK1,修理書参照 |
6 | ||
| 13041-3108004 |
2GRFSE..GRS204,GWS204 MARK4,修理書参照 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3108002 |
2GRFSE..GRS204,GWS204 MARK2,修理書参照 |
6 | ||
| 13041-3108003 |
2GRFSE..GRS204,GWS204 MARK3,修理書参照 |
6 | ||
| 13041-3108001 |
2GRFSE..GRS204,GWS204 MARK1,修理書参照 |
6 | ||
| 13041-3108004 |
2GRFSE..GRS204,GWS204 MARK4,修理書参照 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3108002 |
2GRFSE..GRS204,GWS204 MARK2,修理書参照 |
6 | ||
| 13041-3108003 |
2GRFSE..GRS204,GWS204 MARK3,修理書参照 |
6 | ||
| 13041-3108001 |
2GRFSE..GRS204,GWS204 MARK1,修理書参照 |
6 | ||
| 13041-3108004 |
2GRFSE..GRS204,GWS204 MARK4,修理書参照 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3108002 |
2GRFSE..GRS204,GWS204 MARK2,修理書参照 |
6 | ||
| 13041-3108003 |
2GRFSE..GRS204,GWS204 MARK3,修理書参照 |
6 | ||
| 13041-3108001 |
2GRFSE..GRS204,GWS204 MARK1,修理書参照 |
6 | ||
| 13041-3108004 |
2GRFSE..GRS204,GWS204 MARK4,修理書参照 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3108002 |
2GRFSE..GRS204,GWS204 MARK2,修理書参照 |
6 | ||
| 13041-3108003 |
2GRFSE..GRS204,GWS204 MARK3,修理書参照 |
6 | ||
| 13041-3108001 |
2GRFSE..GRS204,GWS204 MARK1,修理書参照 |
6 | ||
| 13041-3108004 |
2GRFSE..GRS204,GWS204 MARK4,修理書参照 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-31060C0 |
2GRFSE..GRS204,GWS204 STD,MARK C,修理書参照 |
3 | ||
| 13101-31060A0 |
2GRFSE..GRS204,GWS204 STD,MARK A,修理書参照 |
3 | ||
| 13101-31060B0 |
2GRFSE..GRS204,GWS204 STD,MARK B,修理書参照 |
3 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-39166 |
2GRFSE..GRS204,GWS204 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
6 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-31020 |
2GRFSE..GRS204,GWS204 |
12 | ||
| 13301 - PISTON SUB-ASSY, W/PIN, LH | ||||
| 13301-31030 |
2GRFSE..GRS204,GWS204 STD,修理書参照 |
3 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-31050 |
2GRFSE..GRS204,GWS204 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-31030 |
2GRFSE..GRS204,GWS204 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16004 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-31041 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
2 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-31030 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
| 13582 - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-31031 |
2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204 |
1 | ||
