GRS204-AETXH (2010)

Toyota Crown

Production Feb 2010 - Dec 2012
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

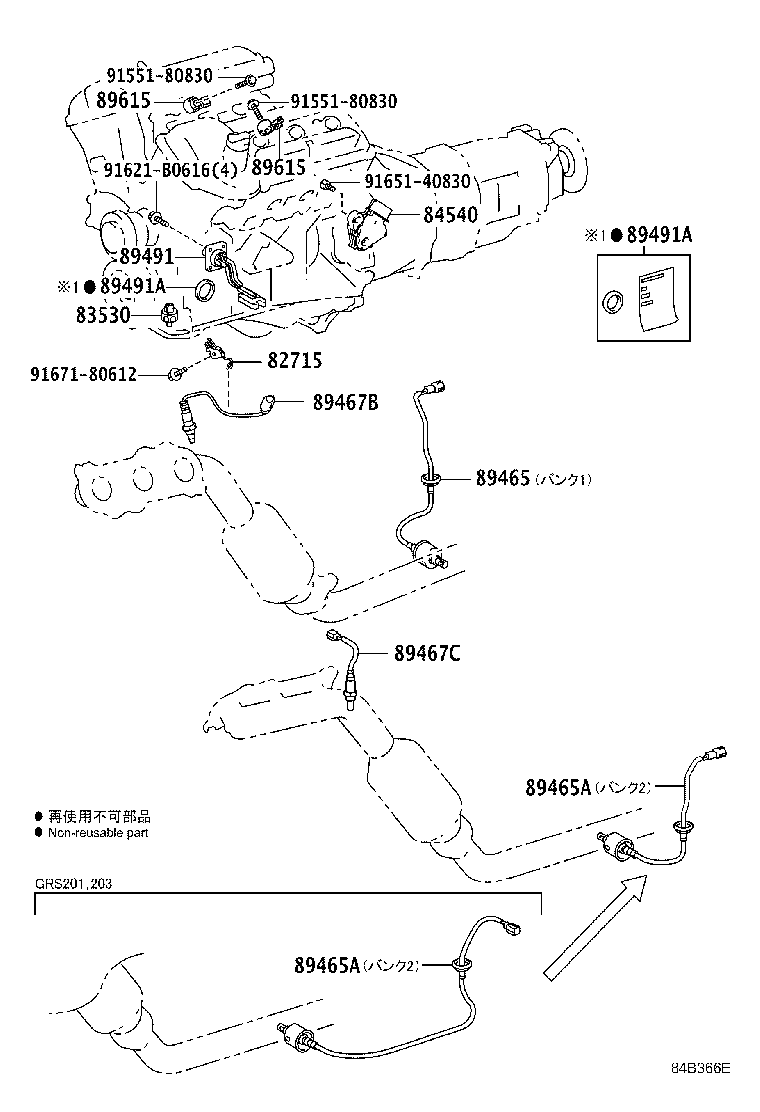

ILLUST NO. 1 OF11(1002- )GRS20#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ

diagram 82715 83530 84540 89465 89465A 89465A 89467B 89467C 89491 89491A 89491A 89615 89615 9155180830 9155180830 91621B0616 9165140830 9167180612
Part # Description Qty Price
82715 - BRACKET,WIRING HARNESS CLAMP
82715-22850

GRS20#..CBU

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020

GRS20#,GWS204..CBU

 1
83530-28020

GRS20#,GWS204..CBU

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-71010

GRS20#..CBU

 1
84540-71010

GRS20#..CBU

 1
89465 - SENSOR, OXYGEN
89465-30730

GRS20#,GWS204..CBU

 1
89465-30730

GRS20#,GWS204..CBU

 1
89465A - SENSOR, OXYGEN NO.2
89465-30730

GRS200,202,204,GWS204..CBU

 1
89465-30730

GRS200,202,204,GWS204..CBU

 1
89465A - SENSOR, OXYGEN NO.2
89465-30730

GRS200,202,204,GWS204..CBU

 1
89465-30730

GRS200,202,204,GWS204..CBU

 1
89467B - SENSOR, AIR FUEL RATIO
89467-22050

GRS20#..CBU

 1
89467-30040

GRS200,202,204..CBU

ﾏｰｸ 89467−30040

 1
89467C - SENSOR, AIR FUEL RATIO, NO.2
89467-22030

GRS200,202,204..CBU

 1
89467-30030

GRS200,202,204..CBU

ﾏｰｸ 89467−30030

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-30060

GRS200,202,204,GWS204..CBU

 1
89491-30060

GRS200,202,204,GWS204..CBU

 1
89491-30061

GRS200,202,204,GWS204..CBU

 1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010

GRS20#,GWS204..CBU

 1
89493-60010

GRS20#,GWS204..CBU

 1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010

GRS20#,GWS204..CBU

 1
89493-60010

GRS20#,GWS204..CBU

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

GRS20#,GWS204..CBU

 2
89615-20090

GRS20#,GWS204..CBU

 2
89615 - SENSOR, KNOCK CONTROL
89615-20090

GRS20#,GWS204..CBU

 2
89615-20090

GRS20#,GWS204..CBU

 2
Common parts
91551-80830
91621-B0616
91651-40830
91671-80612
