GRS203-AETQH (2010)
Toyota Crown

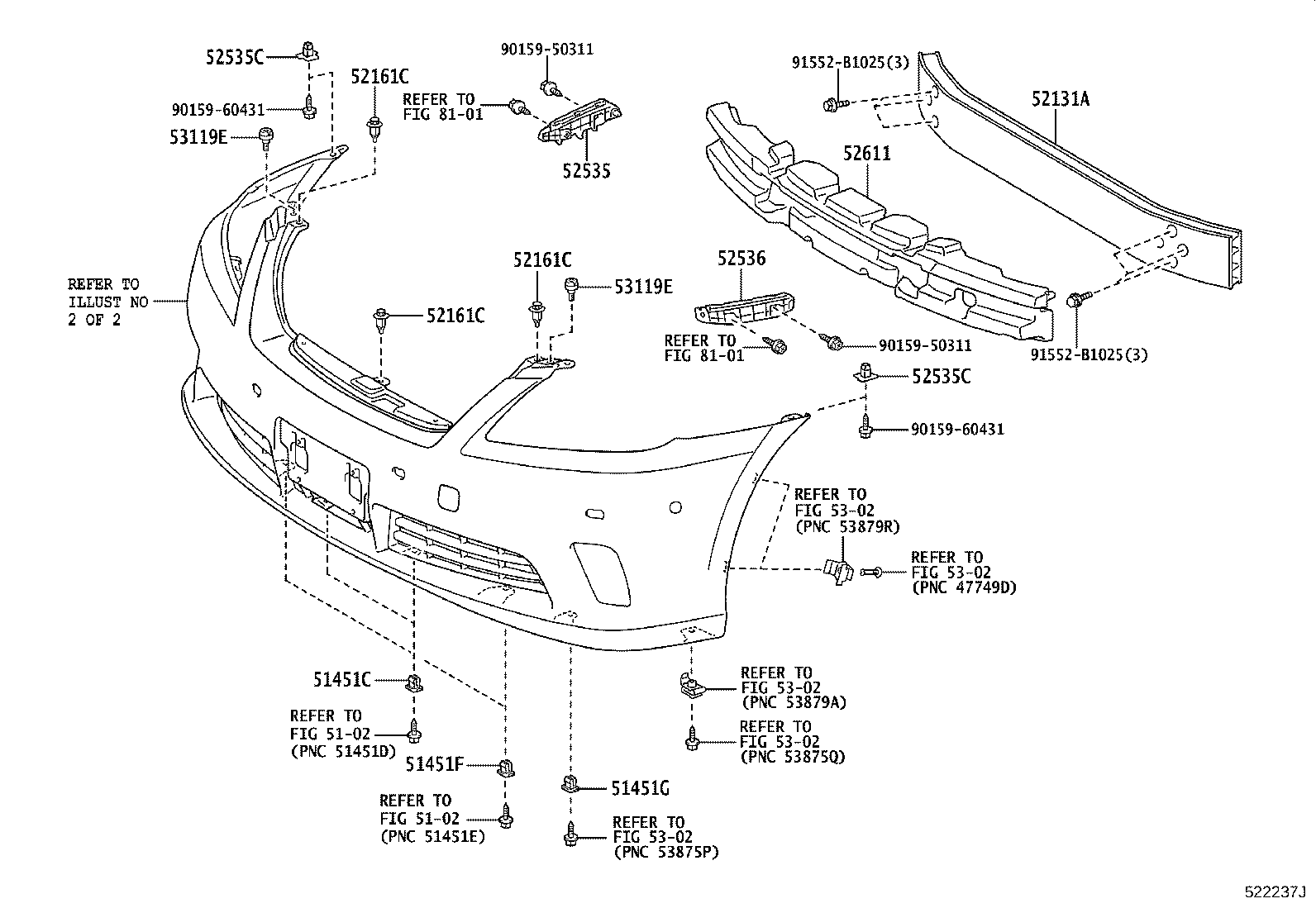

ILLUST NO. 1 OF 2(1002- )HBD,ROY,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
GRS20#,GWS204..CBU |
2 | ||
| 90189-06237 |
GRS20#,GWS204..CBU |
2 | ||
| 51451F - GROMMET, NO.1 | ||||
| 90189-06193 |
GRS20#,GWS204..CBU |
2 | ||
| 90189-06237 |
GRS20#,GWS204..CBU |
2 | ||
| 51451G - GROMMET, NO.2 | ||||
| 90189-06237 |
GRS20#,GWS204..CBU |
2 | ||
| 90189-06193 |
GRS20#,GWS204..CBU |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30290 |
GRS20#,GWS204..CBU |
1 | ||
| 52131-30290 |
GRS20#,GWS204 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRS20#,GWS204 |
3 | ||
| 52161-16010 |
GRS20#,GWS204..CBU |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRS20#,GWS204 |
3 | ||
| 52161-16010 |
GRS20#,GWS204..CBU |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRS20#,GWS204 |
3 | ||
| 52161-16010 |
GRS20#,GWS204..CBU |
3 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30200 |
GRS20#,GWS204..CBU |
1 | ||
| 52535-30200 |
GRS20#,GWS204 |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
GRS20#,GWS204 |
2 | ||
| 52535-50060 |
GRS20#,GWS204..CBU |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
GRS20#,GWS204 |
2 | ||
| 52535-50060 |
GRS20#,GWS204..CBU |
2 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30200 |
GRS20#,GWS204 |
1 | ||
| 52536-30200 |
GRS20#,GWS204..CBU |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30380 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU |
1 | ||
| 52611-30330 |
GRS200,201,202,203..ROY,ROYG |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
GRS20#,GWS204 |
2 | ||
| 53119-12150 |
GRS20#,GWS204..CBU |
2 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
GRS20#,GWS204 |
2 | ||
| 53119-12150 |
GRS20#,GWS204..CBU |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 91552-B1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

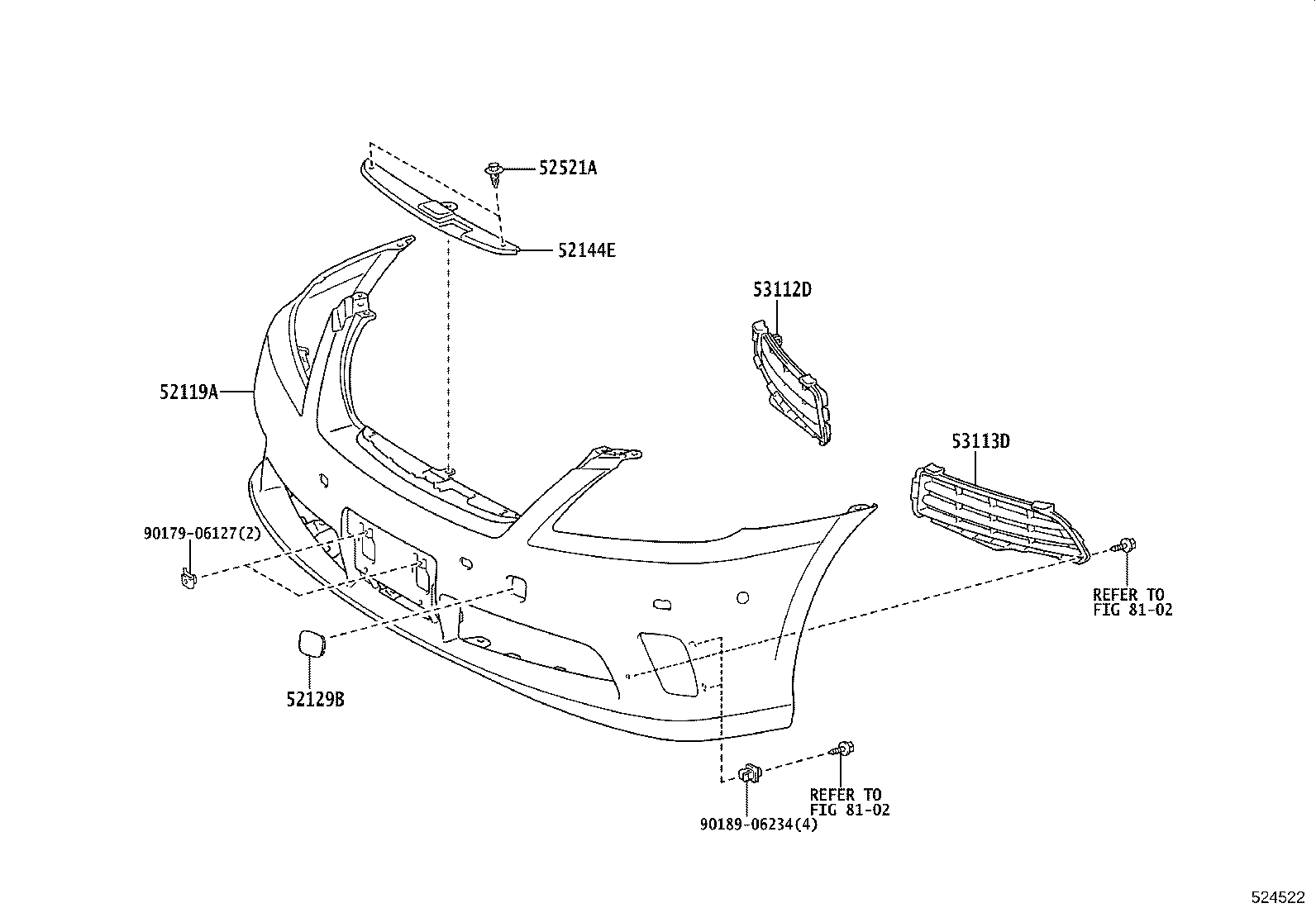

ILLUST NO. 2 OF 2(1002- )HBD,ROY,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30660B1 |
GRS200,201,202,203..(ROY,ROYG)..CBU PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30660A1 |
GRS200,201,202,203..(ROY,ROYG)..CBU WHITE PEARL CS.,062 |
1 | ||
| 52119-30660B0 |
GRS200,201,202,203..(ROY,ROYG)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-30660D0 |
GRS200,201,202,203..(ROY,ROYG)..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30660G0 |
GRS200,201,202,203..(ROY,ROYG)..CBU DK.GREEN MC.,6V4 |
1 | ||
| 52119-30660C0 |
GRS200,201,202,203..(ROY,ROYG)..CBU BLACK,202 |
1 | ||
| 52119-30660J0 |
GRS200,201,202,203..(ROY,ROYG)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52119-30810G0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),DK.GREEN MC.,6V4 |
1 | ||
| 52119-30810A1 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30820A1 |
GRS203..CBU Uﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30810D0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30810B1 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30810B0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30810J0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-30820D0 |
GRS203..CBU Uﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30820B0 |
GRS203..CBU Uﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30810C0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30820J0 |
GRS203..CBU Uﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-30820G0 |
GRS203..CBU Uﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),DK.GREEN MC.,6V4 |
1 | ||
| 52119-30820C0 |
GRS203..CBU Uﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30820B1 |
GRS203..CBU Uﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30B10A0 |
GRS203..CBU “Anniversary Edition” *(B) OR *(R),*313&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30B10B1 |
GRS203..CBU “Anniversary Edition” *(B) OR *(R),*313&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30B10B0 |
GRS203..CBU “Anniversary Edition” *(B) OR *(R),*313&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30B10C0 |
GRS203..CBU “Anniversary Edition” *(B) OR *(R),*313&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30B10A0 |
GRS203..CBU “Anniversary Edition” *(B),*314&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30770A0 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU WHITE PEARL CS.,062 |
1 | ||
| 52119-30B10B0 |
GRS203..CBU “Anniversary Edition” *(B),*314&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30B10B1 |
GRS203..CBU “Anniversary Edition” *(B),*314&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30B10A0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30770D0 |
GRS200,201,202,203..(ROY,ROYG)..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30770F0 |
GRS200,201,202,203..(ROY,ROYG)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-30B10C0 |
GRS203..CBU “Anniversary Edition” *(B),*314&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30770J0 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52119-30770B1 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-30770C0 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU BLACK,202 |
1 | ||
| 52119-30770B0 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30B10B0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30B10C0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30B10B1 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30B10D0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30B10F0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-30B20B0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30B20A0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30B10J0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-30B20F0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-30B20C0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30B20B1 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30B20D0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30B20J0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-30B10B0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30B10A0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30B10C0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30B10B1 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30B20D0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30B10D0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30B10F0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-30B20A0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30B20B0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30B10J0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-30B20F0 |
GRS203..CBU;GRS202..ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-30B20B1 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30B20J0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-30B20C0 |
GRS203..CBU;GRS202,GWS204..HBD,ROYG ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&有り(DSRC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-30B10A0 |
GRS203..CBU “Premium Edition” *(C),*313&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-30B10B0 |
GRS203..CBU “Premium Edition” *(C),*313&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30B10B1 |
GRS203..CBU “Premium Edition” *(C),*313&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-30B10C0 |
GRS203..CBU “Premium Edition” *(C),*313&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-30050A1 |
GRS200,201,202,203..(ROY,ROYG)..CBU WHITE PEARL CS.,062 |
1 | ||
| 52129-30050D0 |
GRS200,201,202,203..(ROY,ROYG)..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 52129-30050B0 |
GRS200,201,202,203..(ROY,ROYG)..CBU SILVER ME.,1F7 |
1 | ||
| 52129-30050J0 |
GRS200,201,202,203..(ROY,ROYG)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52129-30050G0 |
GRS200,201,202,203..(ROY,ROYG)..CBU DK.GREEN MC.,6V4 |
1 | ||
| 52129-30100F0 |
GRS200,201,202,203..(ROY,ROYG)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 52129-30100C0 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU BLACK,202 |
1 | ||
| 52129-30100B0 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52129-30050B1 |
GRS200,201,202,203..(ROY,ROYG)..CBU PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52129-30100B1 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU SILVER ME.,1F7 |
1 | ||
| 52129-30050C0 |
GRS200,201,202,203..(ROY,ROYG)..CBU BLACK,202 |
1 | ||
| 52129-30100A0 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU WHITE PEARL CS.,062 |
1 | ||
| 52129-30100D0 |
GRS200,201,202,203..(ROY,ROYG)..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 52129-30100J0 |
GRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52144E - STAY, FRONT BUMPER, CENTER | ||||
| 52144-30190 |
GRS200,201,202,203..ROY,ROYG |
1 | ||
| 52144-30220 |
GRS20#,GWS204..CBU |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-08180 |
GRS20#,GWS204 |
4 | ||
| 90467-08180 |
GRS20#,GWS204..CBU |
2 | ||
| 53112D - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-30290 |
GRS200,201,202,203..ROY,ROYG |
1 | ||
| 53112-30340 |
GRS200,201,202,203..(ROY,ROYG)..CBU |
1 | ||
| 53113D - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-30200 |
GRS200,201,202,203..ROY,ROYG |
1 | ||
| 53113-30190 |
GRS200,201,202,203..(ROY,ROYG)..CBU |
1 | ||
| Common parts | ||||
| 90179-06127 | ||||
| 90189-06234 | ||||
| Linked diagrams | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
