GRS203-AETQH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
3GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

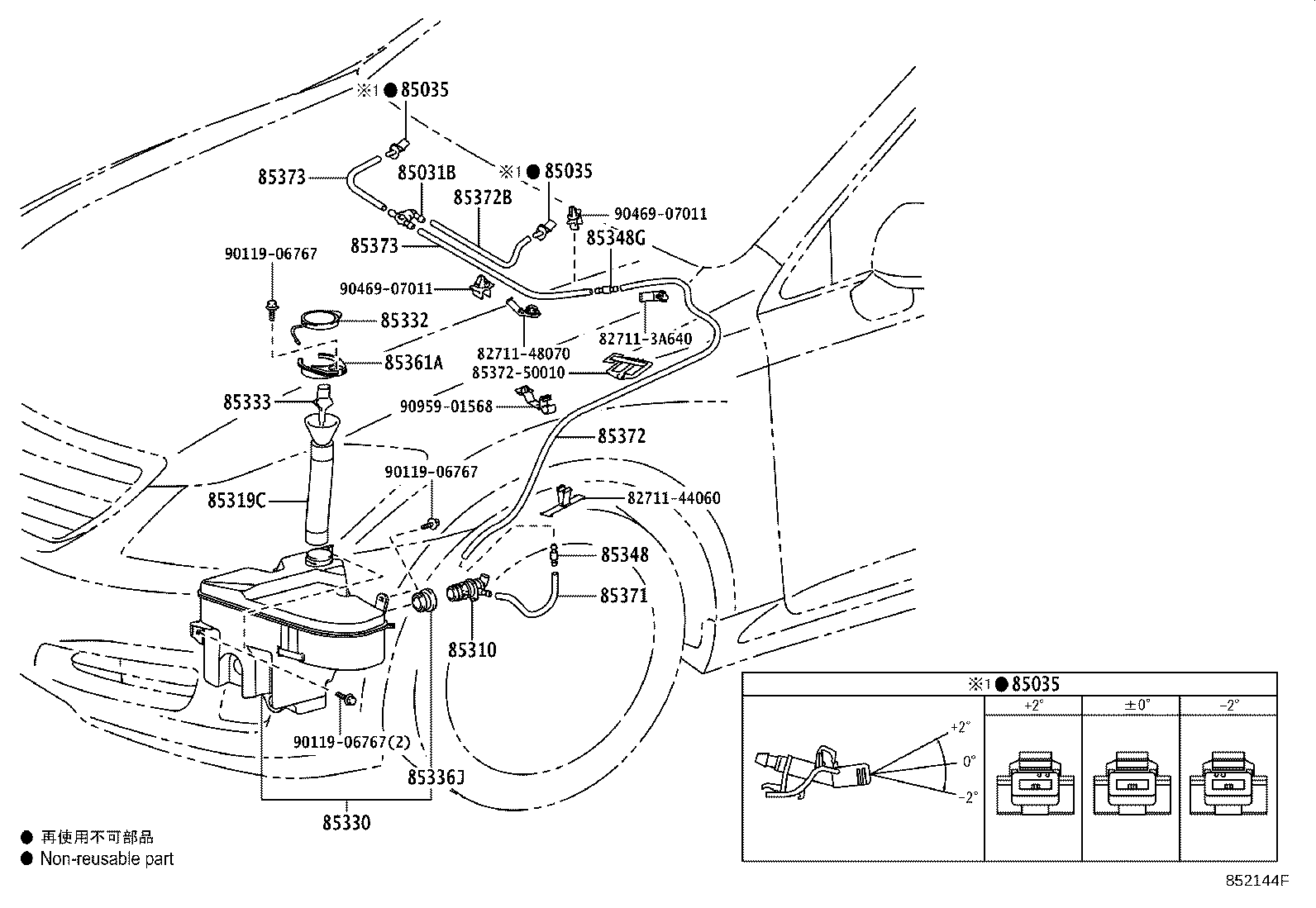

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85321-28020 |
GRS20#,GWS204 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
GRS20#,GWS204 角度 −2 |
2 | ||
| 85381-12320 |
GRS20#,GWS204 角度 +2 |
2 | ||
| 85381-12300 |
GRS20#,GWS204 角度 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
GRS20#,GWS204 角度 −2 |
2 | ||
| 85381-12320 |
GRS20#,GWS204 角度 +2 |
2 | ||
| 85381-12300 |
GRS20#,GWS204 角度 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
GRS20#,GWS204 角度 −2 |
2 | ||
| 85381-12320 |
GRS20#,GWS204 角度 +2 |
2 | ||
| 85381-12300 |
GRS20#,GWS204 角度 0 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-21010 |
GRS20#,GWS204 |
1 | ||
| 85319C - HOSE, WASHER | ||||
| 85319-30360 |
GRS20#,GWS204 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-30360 |
GRS20#,GWS204 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-48060 |
GRS20#,GWS204 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-30080 |
GRS20#,GWS204 |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85336-60300 |
GRS20#,GWS204 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GRS20#,GWS204 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
GRS20#,GWS204 |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-30380 |
GRS20#,GWS204 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GRS20#,GWS204 *H,L=150 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
GRS20#,GWS204 長さ=1720 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
GRS20#,GWS204 *H,L=450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GRS20#,GWS204 *H,L=350 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GRS20#,GWS204 *H,L=350 |
2 | ||
| Common parts | ||||
| 82711-3A640 | ||||
| 82711-44060 | ||||
| 82711-48070 | ||||
| 85372-50010 | ||||
| 90119-06767 | ||||
| 90469-07011 | ||||
| 90959-01568 | ||||
