GRS202-AETUH (2008)
Toyota Crown

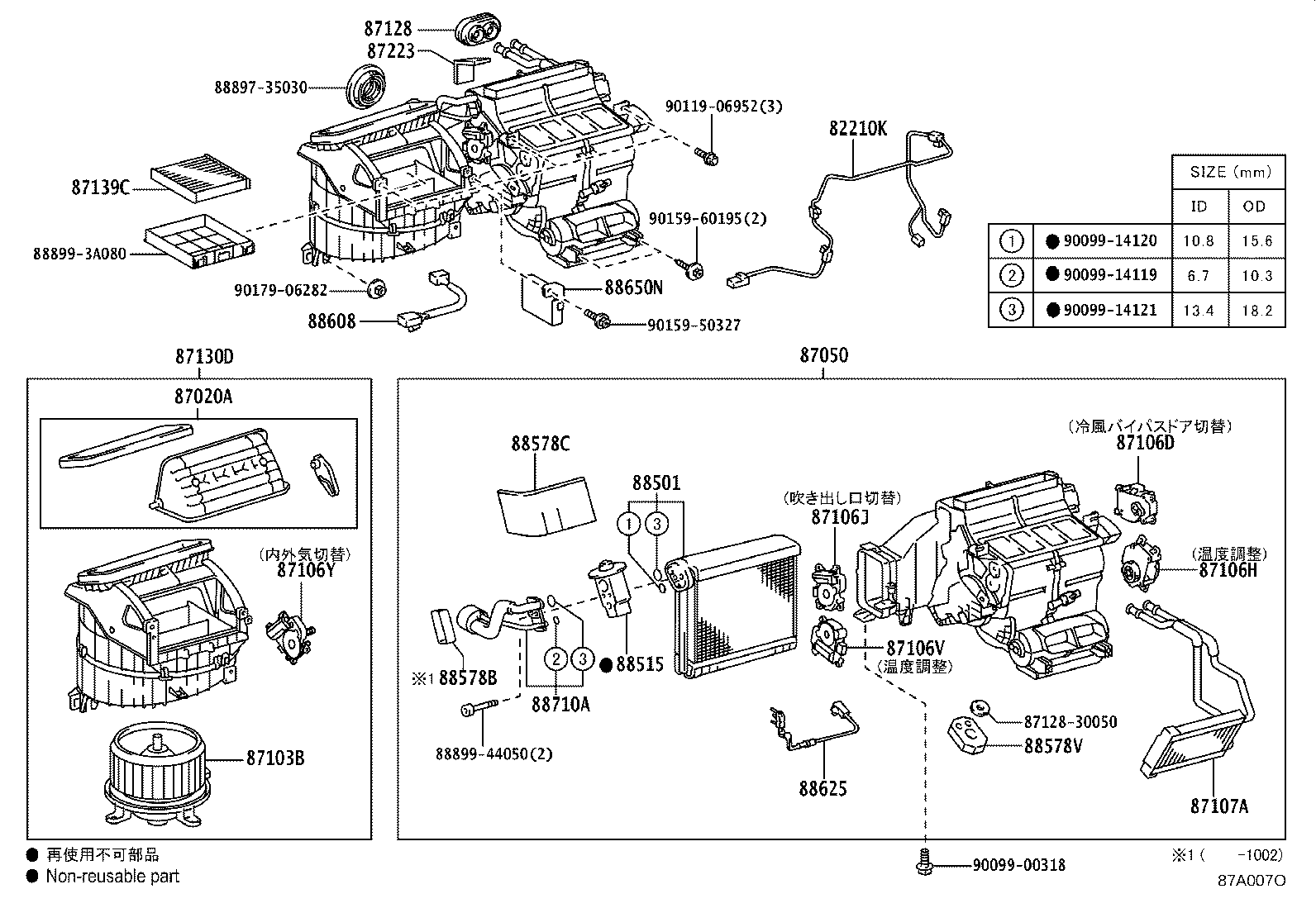

ILLUST NO. 1 OF 2(0802- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-30013 |
GRS20#,GWS204 |
1 | ||
| 87020A - DAMPER ASSY, HEATER AIR | ||||
| 87020-30010 |
GRS20#,GWS204 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-30210 |
GRS20# |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-30400 |
GRS20#,GWS204 |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-30440 |
GRS20#,GWS204 |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-30430 |
GRS20#,GWS204 |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-30450 |
GRS20#,GWS204..CBU |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-30450 |
GRS20#,GWS204..CBU |
1 | ||
| 87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH) | ||||
| 87106-30470 |
GRS20#,GWS204 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30560 |
GRS20#,GWS204 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-30790 |
GRS20#,GWS204 |
1 | ||
| 87130-30791 |
GRS20#,GWS204 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50060 |
GRS20#,GWS204 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-30040 |
GRS20#,GWS204 花粉ﾌｨﾙﾀ |
1 | ||
| 87223 - PAD, AIR DUCT | ||||
| 87223-30030 |
GRS20#,GWS204 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-3A160 |
GRS20# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-28180 |
GRS20#,GWS204 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-30830 |
GRS20#,GWS204 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-30840 |
GRS20#,GWS204 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-30870 |
GRS20#,GWS204 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-30020 |
GRS20#,GWS204 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-30J30 |
GRS200,201;GRS202..ROYG |
1 | ||
| 88650-30J20 |
GRS202,203,204..ATH,ROY |
1 | ||
| 88650-30J40 |
GRS20# 寒冷地仕様 |
1 | ||
| 88650-30J30 |
GRS202,203..ROY ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88650-30J40 |
GRS202,203..ROY 寒冷地仕様&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88650-30J31 |
GRS200,201;GRS202..ROYG |
1 | ||
| 88650-30J31 |
GRS202,203..ROY ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88650-30J21 |
GRS202,203,204..ATH,ROY |
1 | ||
| 88650-30J41 |
GRS202,203..ROY 寒冷地仕様&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−ｵｰﾄ(ｸｰﾙﾎﾞｯｸｽ付)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88650-30J41 |
GRS20# 寒冷地仕様 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A260 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 87128-30050 | ||||
| 88897-35030 | ||||
| 88899-3A080 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-60195 | ||||
| 90179-06282 | ||||

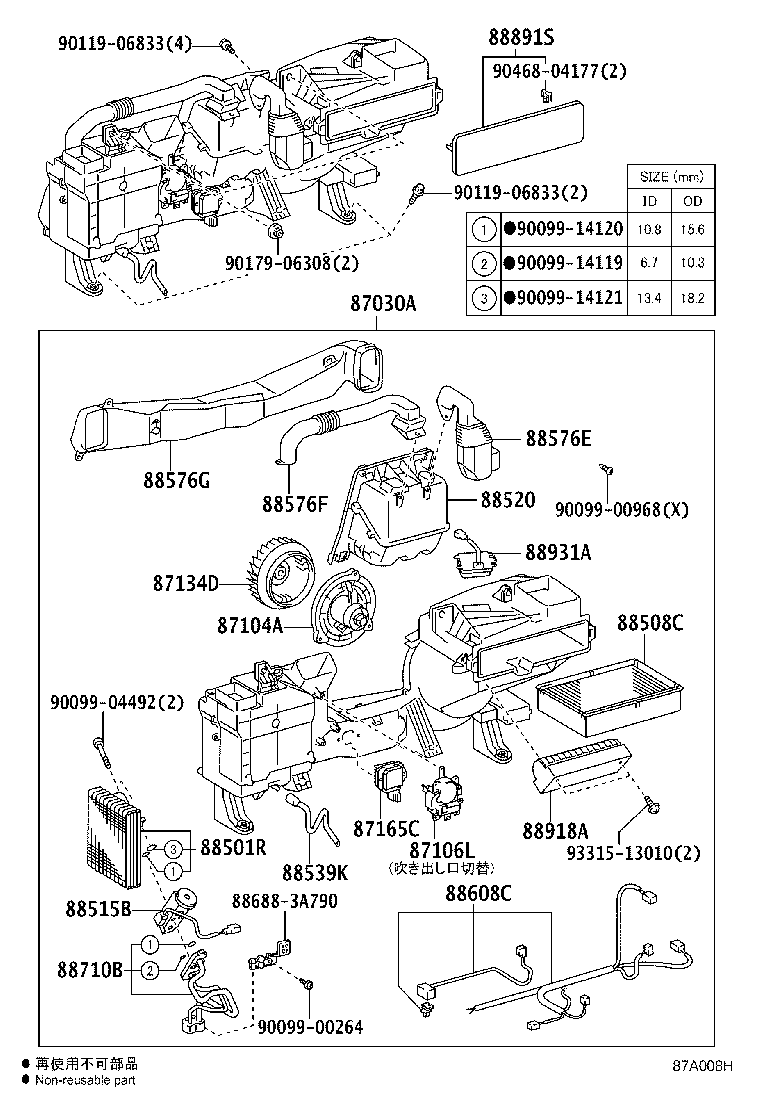

ILLUST NO. 2 OF 2(0802- )GRS204 ; (0802- )ROY,ROYG
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-30080 |
GRS202..ROYG |
1 | ||
| 87030-30080 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 87104A - MOTOR SUB-ASSY, BLOWER | ||||
| 87104-30520 |
GRS202..ROYG |
1 | ||
| 87104-30520 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30490 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 87106-30490 |
GRS202..ROYG |
1 | ||
| 87134D - FAN, BLOWER, NO.2 | ||||
| 87134-30090 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 87134-30090 |
GRS202..ROYG |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-45030 |
GRS202..ROYG |
1 | ||
| 87165-45030 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-3A070 |
GRS202..ROYG |
1 | ||
| 88501-3A070 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88508C - FILTER SUB-ASSY, AIR | ||||
| 88508-50080 |
GRS202..ROYG |
1 | ||
| 88508-50080 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-30740 |
GRS202..ROYG |
1 | ||
| 88515-30740 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-30030 |
GRS202..ROYG |
1 | ||
| 88520-30030 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-30880 |
GRS202..ROYG |
1 | ||
| 88539-30880 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88576E - DUCT, COOLER AIR, NO.1 | ||||
| 88576-3A440 |
GRS202..ROYG |
1 | ||
| 88576-3A440 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88576F - DUCT, COOLER AIR, NO.2 | ||||
| 88576-3A450 |
GRS202..ROYG |
1 | ||
| 88576-3A450 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88576G - DUCT, COOLER AIR, NO.3 | ||||
| 88576-3A480 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88576-3A480 |
GRS202..ROYG |
1 | ||
| 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-3A220 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88608-3A220 |
GRS202..ROYG |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A250 |
GRS202..ROYG |
1 | ||
| 88710-3A250 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-30690C0 |
GRS202..ROYG BLACK,TRIM0#,1# |
1 | ||
| 88891-30690C0 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM0#,1# |
1 | ||
| 88918A - LAMP ASSY, INDICATOR | ||||
| 88918-22391 |
GRS202..ROYG |
1 | ||
| 88918-22391 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88931A - SENSOR, SMOKE | ||||
| 88931-30090 |
GRS200,202,203..ROY ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 88931-30090 |
GRS202..ROYG |
1 | ||
| Common parts | ||||
| 88688-3A790 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06833 | ||||
| 90179-06308 | ||||
| 90468-04177 | ||||
| 93315-13010 | ||||
