GRS202-AETUH (2008)
Toyota Crown

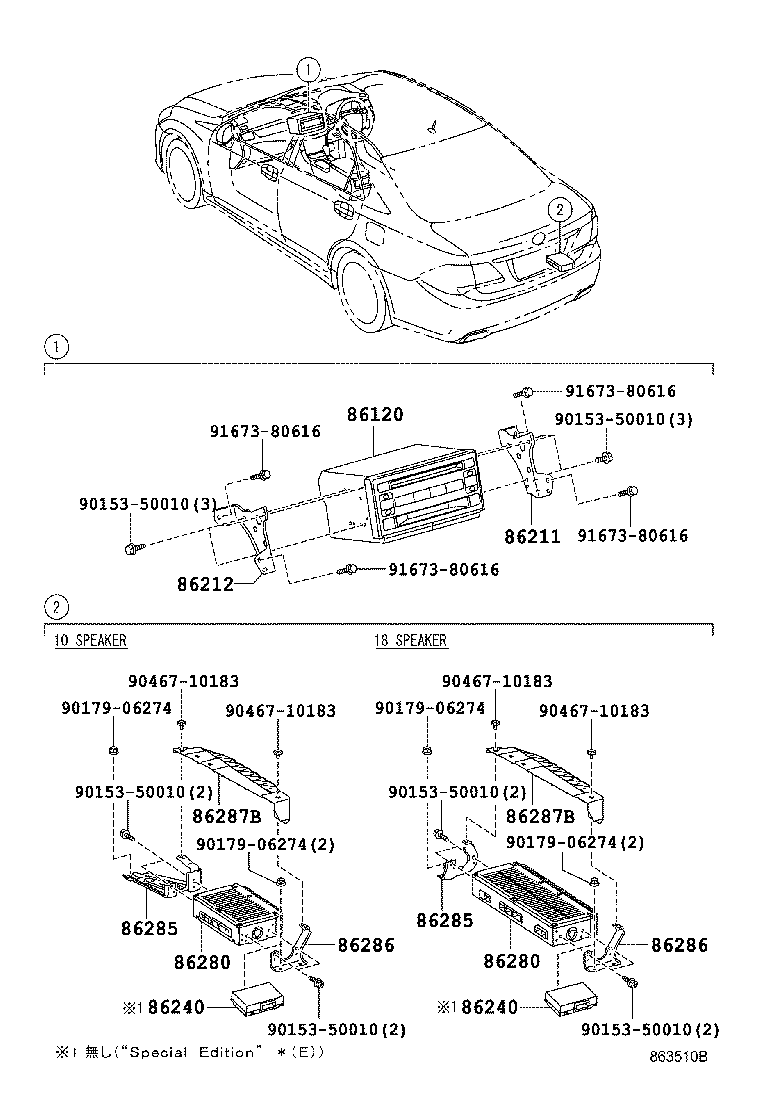

ILLUST NO. 1 OF 4(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-30F40 |
GRS202,203..CBU FUJITSU TEN,ID=10503 |
1 | ||
| 86120-30J11 |
GRS202,203 FUJITSU TEN,ID=10502,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30F41 |
GRS202,203 FUJITSU TEN,ID=10503 |
1 | ||
| 86120-30J10 |
GRS202,203..CBU FUJITSU TEN,ID=10502,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30F44 |
GRS202,203 FUJITSU TEN,ID=10512 |
1 | ||
| 86120-30J12 |
GRS202,203 FUJITSU TEN,ID=10502,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30F42 |
GRS202,203 FUJITSU TEN,ID=10503 |
1 | ||
| 86120-30J14 |
GRS201;GRS200,202,203..ROY,ROYG FUJITSU TEN,ID=10513,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30F45 |
GRS202,203 FUJITSU TEN,ID=10512 |
1 | ||
| 86120-30J15 |
GRS201;GRS200,202,203..ROY,ROYG FUJITSU TEN,ID=10513,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30J10 |
GRS202,203..CBU FUJITSU TEN,ID=10502,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30J11 |
GRS202,203 FUJITSU TEN,ID=10502,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F40 |
GRS202,203..CBU FUJITSU TEN,ID=10503,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F41 |
GRS202,203 FUJITSU TEN,ID=10503,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F42 |
GRS202,203 FUJITSU TEN,ID=10503,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F44 |
GRS202,203 FUJITSU TEN,ID=10512,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30J12 |
GRS202,203 FUJITSU TEN,ID=10502,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30J14 |
GRS201;GRS200,202,203..ROY,ROYG FUJITSU TEN,ID=10513,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F45 |
GRS202,203 FUJITSU TEN,ID=10512,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30J15 |
GRS201;GRS200,202,203..ROY,ROYG FUJITSU TEN,ID=10513,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30340 |
GRS202,203,204,GWS204 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30310 |
GRS202,203,204,GWS204 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30570 |
GRS202,203,204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 86280-30560 |
GRS202,203,204 |
1 | ||
| 86280-30571 |
GRS20# ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30570 |
GRS202,203,204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 86280-30560 |
GRS202,203,204 |
1 | ||
| 86280-30571 |
GRS20# ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30340 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 86285-30330 |
GRS202,203,204,GWS204 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30340 |
GRS202,203,204,GWS204 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 86285-30330 |
GRS202,203,204,GWS204 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30090 |
GRS202,203,204,GWS204 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30090 |
GRS202,203,204,GWS204 |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-30010 |
GRS202,203,204,GWS204 |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-30010 |
GRS202,203,204,GWS204 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 90467-10183 | ||||
| 91673-80616 | ||||
ILLUST NO. 2 OF 4(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-30F40 |
GRS202,203..CBU FUJITSU TEN,ID=10503 |
1 | ||
| 86120-30J11 |
GRS202,203 FUJITSU TEN,ID=10502,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30F41 |
GRS202,203 FUJITSU TEN,ID=10503 |
1 | ||
| 86120-30J10 |
GRS202,203..CBU FUJITSU TEN,ID=10502,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30F44 |
GRS202,203 FUJITSU TEN,ID=10512 |
1 | ||
| 86120-30J12 |
GRS202,203 FUJITSU TEN,ID=10502,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30F42 |
GRS202,203 FUJITSU TEN,ID=10503 |
1 | ||
| 86120-30J14 |
GRS201;GRS200,202,203..ROY,ROYG FUJITSU TEN,ID=10513,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30F45 |
GRS202,203 FUJITSU TEN,ID=10512 |
1 | ||
| 86120-30J15 |
GRS201;GRS200,202,203..ROY,ROYG FUJITSU TEN,ID=10513,ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1bH 18ｽﾋﾟｰｶ |
1 | ||
| 86120-30J10 |
GRS202,203..CBU FUJITSU TEN,ID=10502,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30J11 |
GRS202,203 FUJITSU TEN,ID=10502,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F40 |
GRS202,203..CBU FUJITSU TEN,ID=10503,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F41 |
GRS202,203 FUJITSU TEN,ID=10503,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F42 |
GRS202,203 FUJITSU TEN,ID=10503,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F44 |
GRS202,203 FUJITSU TEN,ID=10512,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30J12 |
GRS202,203 FUJITSU TEN,ID=10502,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30J14 |
GRS201;GRS200,202,203..ROY,ROYG FUJITSU TEN,ID=10513,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30F45 |
GRS202,203 FUJITSU TEN,ID=10512,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30J15 |
GRS201;GRS200,202,203..ROY,ROYG FUJITSU TEN,ID=10513,TYPE B:ｲﾗｽﾄ参照 |
1 | ||

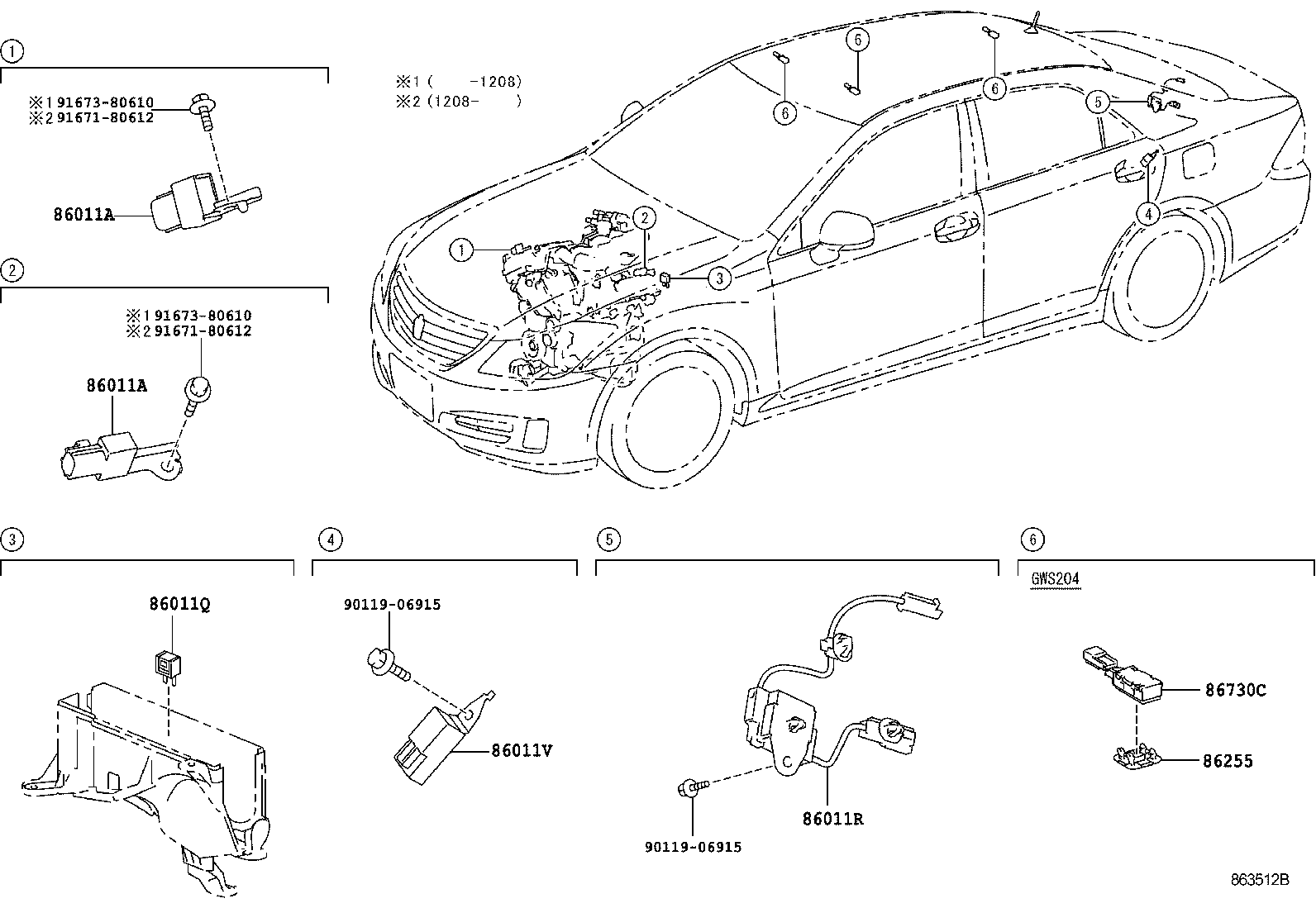

ILLUST NO. 4 OF 4(0802- )
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04190 |
GRS20#,GWS204 |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04190 |
GRS20#,GWS204 |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GRS20#,GWS204 |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 86516-30490 |
GRS20#,GWS204 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04148 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80612 | ||||
| 91673-80610 | ||||
